Professional Pixel LED Neon Flex Manufacturer & Supplier
Professional Pixel LED Neon Flex Manufacturer & Supplier
At Sunroleds, we specialize in the research, development, and manufacturing of high-quality silicone LED neon flex lights. With over 13 years of deep industry experience and in-house extrusion molding capabilities, we offer cutting-edge lighting solutions designed for architectural, commercial, and outdoor applications.
From custom mold tooling to proprietary extrusion formulas, every LED Neon Light strip is built for long-lasting performance, visual uniformity, and environmental resistance. Each product undergoes strict quality testing, including waterproofing, UV exposure, salt spray, and high/low temperature aging, to ensure it meets the highest global standards such as CE, RoHS, and UL.
Whether you need building facade lighting or demanding outdoor installations, our silicone LED neon flex provides durability, flexibility, and consistent luminous output with no Dark spots.
Why choose our Pixel LED Neon Flex?
Why choose our LED Neon Flex?
Our Pixel-Controlled Neon Flex is built from the inside out for performance, precision, and durability in demanding dynamic lighting projects
Top Brand LEDs
We use high-brightness LEDs from trusted brands like Epistar and Lumileds. Each LED features a copper bracket and gold wire packaging, ensuring low light decay, high CRI (≥90), and consistent color output (SDCM<3), even after long-term use.
3-Ounce Double Copper FPC
Unlike typical 1–2oz PCB boards, our Pixel LED strip uses 3-ounce pure copper flexible PCBs, which drastically improve current capacity, thermal stability, and reduce voltage drop over longer runs—essential for pixel applications where precise voltage is critical.
Fully Addressable Control
Supports advanced ICs including TM1934, UCS2904, WS2811, DMX512 and more. Each segment or pixel is individually controllable for smooth gradients, chasing effects, wave animations, and interactive patterns. Compatible with Madrix, Artnet, K8000, K1000C and major protocols like SPI & DMX512.
Seamless One-Piece Extrusion
Made using Dow Corning optical-grade silicone, our extrusion is seamless, highly transparent, and UV-resistant. No glue lines, no yellowing, no shrinkage—only clean, architectural-grade finishes.
Anti-Break Internal Design
We embed reinforced bend-resistant clips inside the extrusion to prevent PCB fracture or shifting, even under frequent bending, stretching, or thermal expansion.
Premium Exterior Finish
Surface is treated for dust and fingerprint resistance, maintaining a clean and upscale appearance—perfect for luxury facades and public installations.
UL-Certified 20AWG Cable
Each Neon strip is pre-wired with industrial-grade UL 20AWG tinned copper cables, designed for reliable current delivery and secure connection over time.
IP67 Waterproof & UV Resistance
The entire structure is weatherproof, UV stable, and rated IP67, ready for long-term outdoor use in rain, dust, or direct sunlight environments.

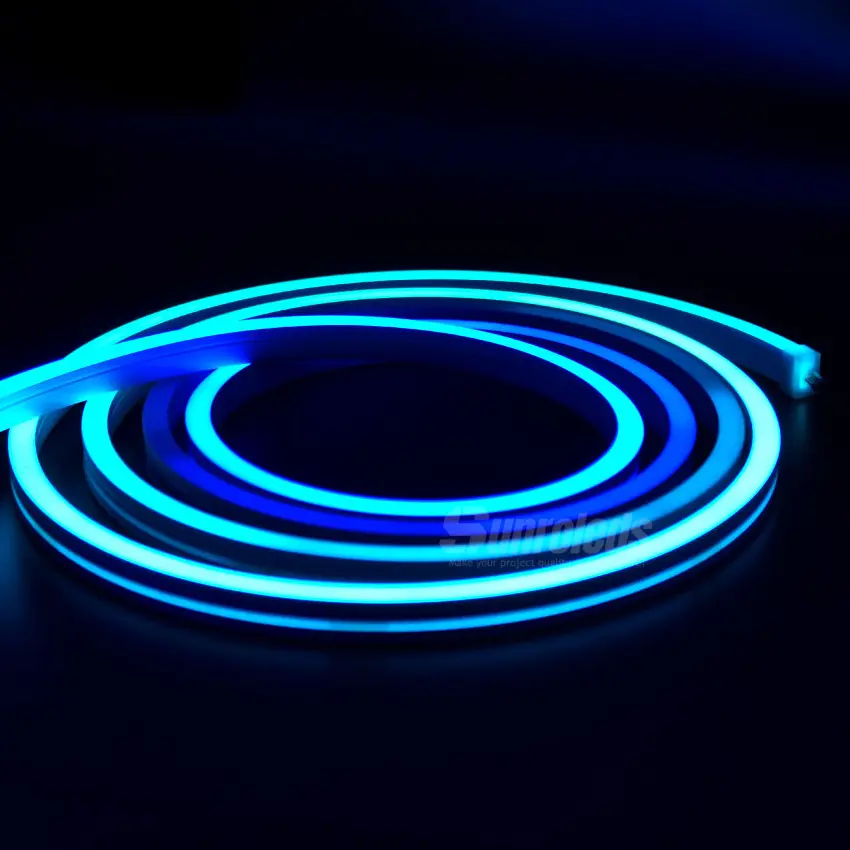

Discover our Addressable Neon Rope Light
Discover our Addressable Neon Rope Light
Detail different models and specifications of LED Neon Rope Light, including images and technical details
Voltage: DC24V
Bending Direction: Top Bend
Colors: RGB IC / RGBW IC
Pixel Segment: 8 pixels
Signal Protocol: SPI/Dual Data/DMX
IP Rated: IP67
Voltage: DC24V
Bending Direction: Side Bend
Colors: RGB IC / RGBW IC
Pixel Segment: 8 pixels
Signal Protocol: SPI/Dual Data/DMX
IP Rated: IP67
Voltage: DC24V
Bending Direction: Top Bend
Colors: RGB IC / RGBW IC
Pixel Segment: 8 pixels
Signal Protocol: SPI/Dual Data/DMX
IP Rated: IP67
Voltage: DC24V
Bending Direction: Top Bend
Colors: RGB IC
Pixel Segment: 10 /20 pixels option
Signal Protocol: SPI WS2811
IP Rated: IP67
Voltage: DC24V
Bending Direction: Side Bend
Colors: RGB IC
Pixel Segment: 10 /20 pixels option
Signal Protocol: SPI WS2811
IP Rated: IP67
Voltage: DC24V
Bending Direction: Side Bend
Colors: RGB IC
Pixel Segment: 10 pixels
Signal Protocol: SPI WS2811
IP Rated: IP67
Voltage: DC24V
Bending Direction: Top Bend
Colors: RGB IC
Pixel Segment: 10 pixels
Signal Protocol: SPI WS2811
IP Rated: IP67
Voltage: DC24V
Bending Direction: Side Bend
Colors: RGB IC
Pixel Segment: 10 pixels
Signal Protocol: SPI WS2811
IP Rated: IP67
Voltage: DC24V
Bending Direction: 360°
Colors: RGB IC
Pixel Segment: 10 pixels
Signal Protocol: SPI WS2811
IP Rated: IP67
Our Available Pixel Control Protocols
Our Available Pixel Control Protocols
SPI (Serial Peripheral Interface) Protocol
SPI is a synchronous serial communication protocol widely used to control addressable LED strip lights. It utilizes four primary signal lines: SCLK (clock) for timing synchronization, MOSI (master-out-slave-in) for sending data, and GND. This structure enables fast, stable, and precise control of LED strips, making SPI ideal for applications requiring real-time animations, smooth color transitions, and high refresh rates.
However, unlike standardized protocols, SPI lacks a universal format for controlling pixel LEDs. Different addressable neon rope lights, such as those using WS2811 or TM1914 driver chips, rely on distinct SPI implementations. This means users must configure the correct SPI protocol based on the specific LED strip model to ensure compatibility and proper operation in their lighting installations.
| Features | SPI LED IC |
|---|---|
| Color Channels | RGB, RGBW (varies by IC) |
| Data Line | 1-wire or 2-wire |
| Speed | High-speed, low-latency |
| Control Precision | High (each LED / Each 3 LED individually controlled) |
| Supported Effects | Smooth animations, gradients, pixel-level effects |
| Pros | Fast, efficient, minimal signal delay |
| Cons | Susceptible to signal degradation over long distances |
| Features | DMX LED IC |
|---|---|
| Color Channels | RGB, RGBW, Multi-channel |
| Data Line | 3-wire (Data+, Data-, Ground) |
| Speed | Standardized DMX rate (250 kbps) |
| Control Precision | Medium – Address-based control |
| Distance | Up to 100m per segment (with repeaters) |
| Pros | Stable, long-distance, multi-channel control |
| Cons | Requires DMX controllers & address setup |
DMX512 Protocol
DMX512 (Digital Multiplex 512) is an international standard protocol used for precise lighting control. Unlike SPI, which relies on continuous data streaming, DMX512 operates as a unidirectional, packet-based system. A DMX controller sends up to 512 channels of data per universe, with each channel representing a single control parameter (e.g., brightness or color).
Key features of DMX512 protocol include:
- 3-Wire Control – Uses data+, data-, and ground for stable transmission
- Addressable Control – Each LED fixture is assigned a unique address for independent operation
- Long-Distance Capability – Requires signal repeaters for distances beyond 100m
- Fixed Refresh Rate – Ensures consistent lighting performance across fixtures
Breakpoint Transmission
Breakpoint transmission is an advanced technology designed to enhance the reliability of addressable LED strips, particularly in large-scale installations. Unlike traditional addressable LED strips, which stop functioning correctly if a single LED fails, breakpoint transmission allows the signal to bypass the faulty LED and continue transmitting to the rest of the strip.
This technology works by integrating dual-signal transmission paths within each LED driver chip. If the primary data line is interrupted due to damage or a defective LED, the backup signal line automatically takes over, ensuring uninterrupted operation. This significantly improves the stability of LED installations, especially in outdoor, commercial, or stage lighting environments where maintenance can be challenging.
Breakpoint transmission is commonly used in DMX512 and SPI-based LED systems, particularly in applications requiring high reliability and minimal downtime. By preventing a single-point failure from affecting the entire strip, it ensures consistent lighting performance, making it an ideal solution for professional lighting projects.
| Features | Breakpoint transmission IC |
|---|---|
| Color Channels | RGB, RGBW |
| Data Line | Dual-signal (redundant data path) |
| Speed | Comparable to standard SPI |
| Reliability | High – LEDs continue functioning even if one fails |
| Supported Effects | Same as SPI but with enhanced stability |
| Pros | Higher fault tolerance, ideal for long installations |
| Cons | Slightly higher cost than standard SPI |
Our Available IC Comparison Table
Our Available IC Comparison Table
Find the perfect IC driver for your pixel neon rope light. Compare SPI, DMX512, and breakpoint transmission options to match your project needs.
| Feature | WS2811 | UCS2603 | UCS2904 | UCS512C2L |
|---|---|---|---|---|
| Color Channels | 3-channel RGB | 3-channel RGB | 4-channel RGBW | 3-channel RGB |
| Signal Protocol | SPI | Dual Data | SPI | DMX512 |
| Data Line | Single-wire | Single-wire | Single-wire | Differential Signal (RS-485) |
| Voltage | 5V /12V /24V | 12V /24V | 12V /24V | 12V /24V |
| Bit Depth | 8-bit (256 levels) | 12-16 bit (65536 gray) | 16-bit RGBW | 16 bit |
| Built-in IC | No, External IC | No, External IC | No, External IC | Built-in DMX512 |
| Signal Type | Digital (PWM) | Digital (PWM) | Digital (PWM) | Digital (PWM) |
| Refresh Rate | ~400–800Hz | ~2kHz | ~2kHz | 2kHz+ |
| Data Transmission Speed | 800 Kbps | 2 Mbps | 2 Mbps | DMX512 Standard |
| Application | simple and popular but limited in fine transitions. | improves on WS2811 with much finer color control (more steps of fading). | best when you need an additional White channel (like tunable whites or RGBW). | installations requiring DMX control, such as in stage or large-scale outdoor use. |

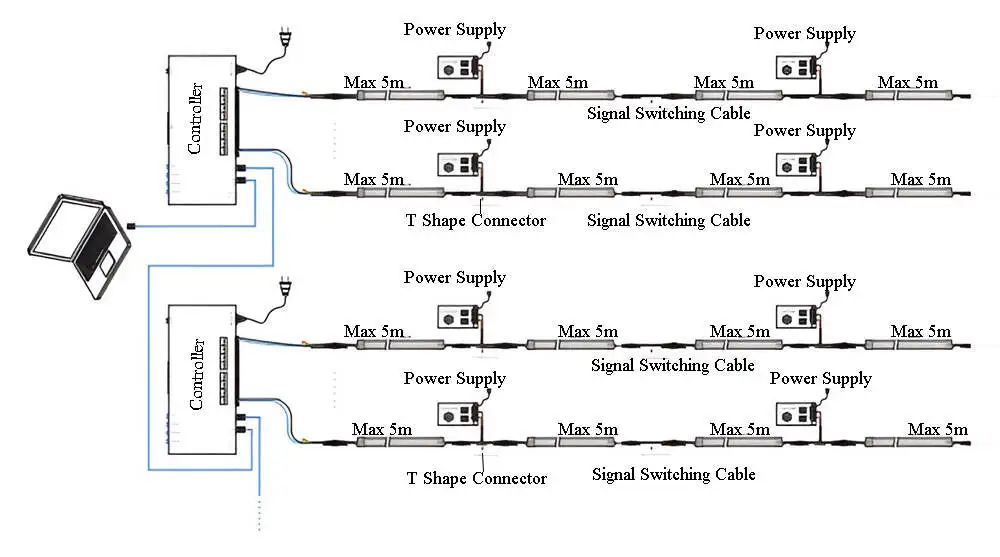

Connection Guide
Connection Guide
Pixel LED Neon Strip Application
Pixel LED Neon Strip Application
Our Pixel LED Neon Flex opens up limitless creative possibilities for dynamic lighting designs. With individually addressable LEDs and flexible silicone housing, it is engineered to meet the complex demands of both artistic and architectural projects

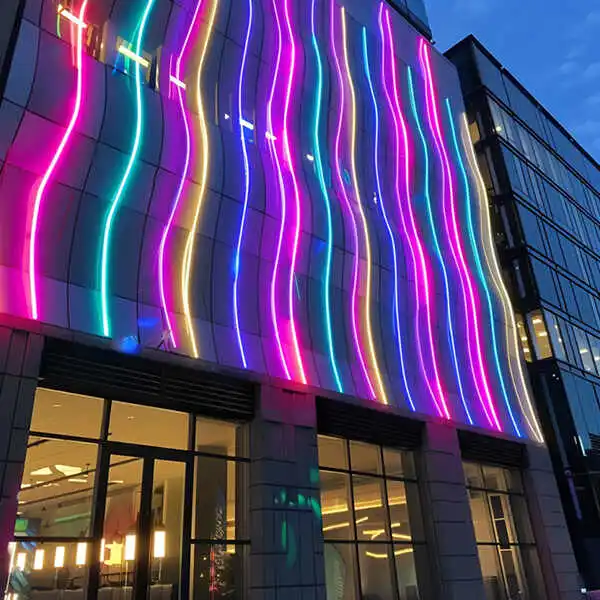

Facades & Architectural Lighting
Pixel-controlled LED Neon Flex is widely used in dynamic building facade lighting where large-scale lighting animations are needed. It enables complex color chases, video mapping, or gradient effects for towers, hotels, or commercial buildings.

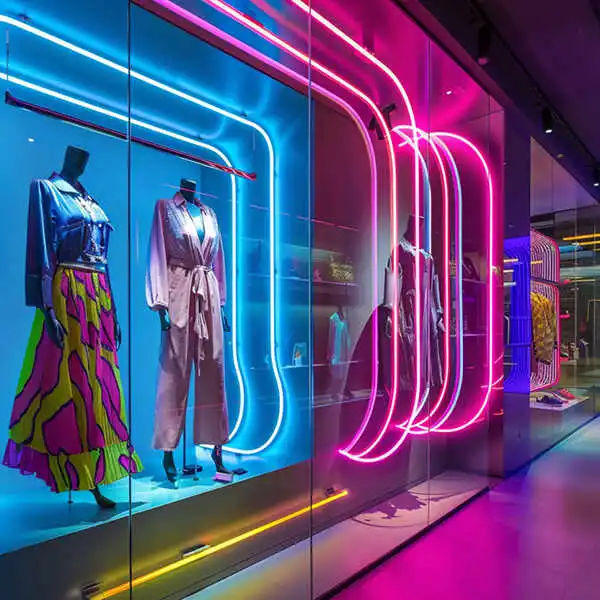

Retail & Commercial Installations
Dynamic lighting adds emotional engagement to retail store displays, especially in flagship stores, malls, and luxury boutiques. Programmable LED Strip Neons can deliver smooth flowing gradients or interactive visuals for window displays and outlines.
Stage, Events & Entertainment
Pixel LED Lighting are perfect for stage design, concerts, and festivals, addressable neon LED strips sync with audio or control consoles (DMX, SPI), creating immersive, responsive atmospheres and dynamic lighting in live performance settings.
Gaming Rooms
Programmable LED Strip lights Neon transforms gaming rooms or E-sports arenas with customizable light paths on walls, desks, and ceiling edges—perfect for immersive, competitive environments.

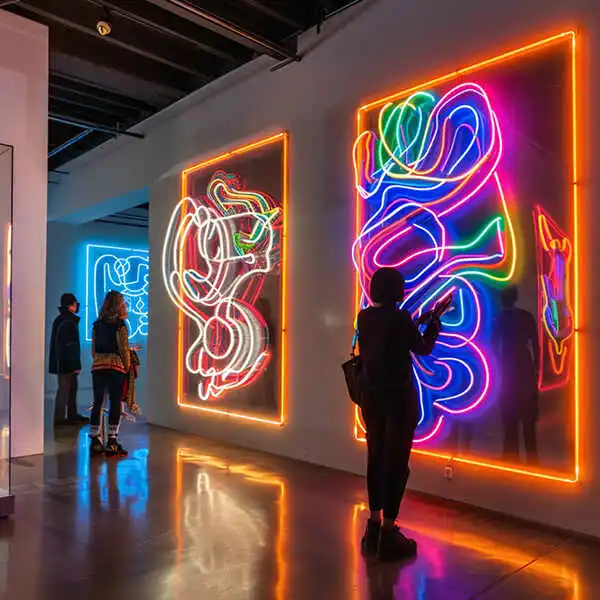

Art Installations & Custom Light Sculptures
In light art installations, addressable silicone neon lights allow designers to sculpt light like a material. Ideal for museums, public art, and light exhibitions where movement and emotion are expressed via LEDs.

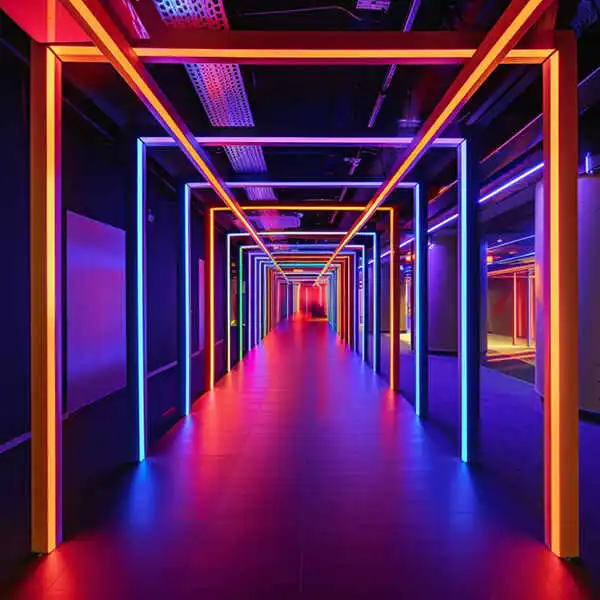

Theme Parks, Museums & Interactive Zones
Bring interactivity and motion into immersive environments. Pair with sensors, control systems, and audio triggers to create themed dynamic zones.
Luxury Signage & Custom Channel Letters
Brands seeking distinction use addressable LED neon in RGB logo lighting, animated channel letters, and 3D signage. Each LED is individually programmable, allowing for eye-catching movement and gradients.

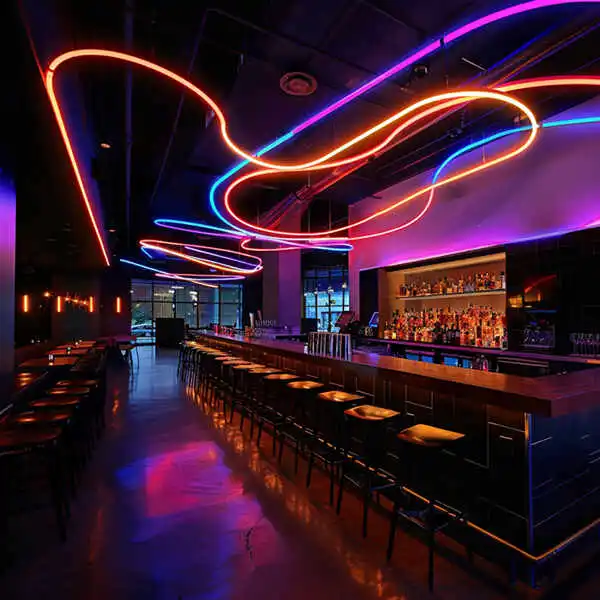

Nightclubs, Bars & Hospitality Lighting
Elevate atmosphere in bars, lounges, or hotel lobbies with rhythm-based lighting that flows, pulses, and reacts to music or ambient inputs using addressable neon flex technology.
Neccessary accessroies for Addressable Neon Lights Strip
Neccessary accessroies for Addressable Neon Lights Strip
provide you a complete power and control system tailored to your project needs.

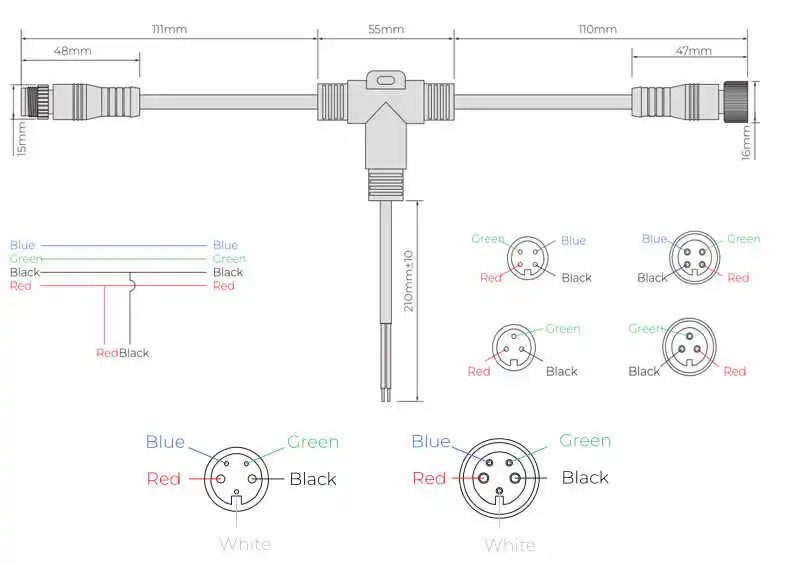

The T-shape connection allows multiple LED strips to be connected in parallel while maintaining reliable signal pass-through between branches. Ideal for pixel LED installations, this connector ensures data continuity, simplifies layout for complex lighting structures, and supports synchronized effects across all connected segments.

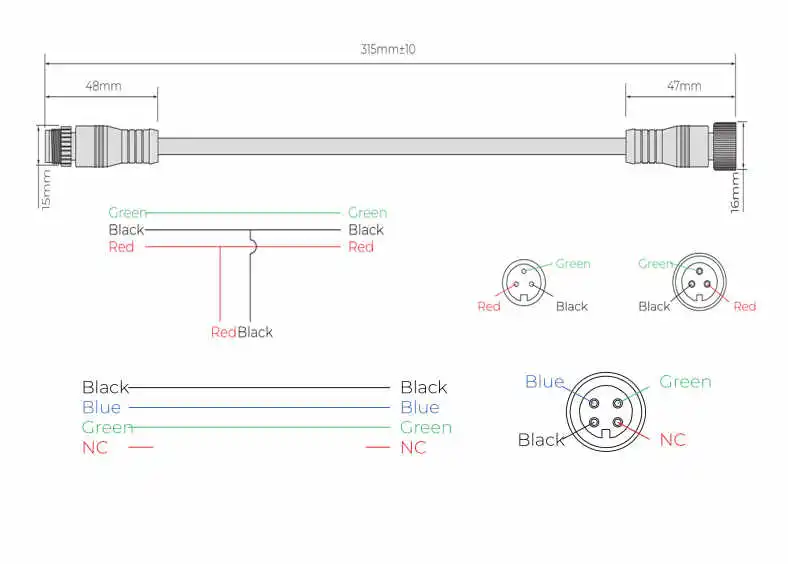

Signal Switching Cable
This cable is designed to keep the signal wire connected in series while isolating the power supply’s positive terminal. It ensures seamless data transmission between LED segments and prevents potential damage caused by connecting two power supplies in parallel. Ideal for complex installations where power and signal need to be managed separately.
Power & Control System Support
Power & Control System Support
provide you a complete power and control system tailored to your project needs.
Match your system with UL-certified power supplies, supporting both constant voltage and constant current configurations. Available in 12V, 24V, and 48V, with waterproof IP67 models for outdoor or damp environments.

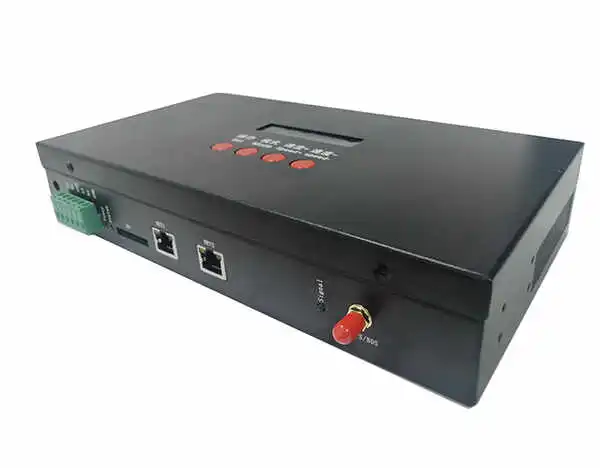

For addressable LED strips, we offer pixel controllers compatible with IC types like WS2811, UCS2904, UCS512C2L, enabling precise dynamic effects for signage, architecture, and entertainment.
OEM & Customization Service
OEM & Customization Service
Offer full-spectrum OEM and customization services for global lighting brands, distributors, and engineering companies.
LED Brand Customization
Provide you premium LED brand options, including Lumileds, San’an, and Epistar, ensuring top-quality performance and efficiency tailored to your project needs.
Custom Color & Finish
Choose black, white, gray silicone; glossy, matte, or anti-fingerprint surface finishes — built for your aesthetic.
Length Customization
Provide you tailored length options to fit your project perfectly, ensuring seamless installation and minimal waste.
Neon Material Customization
Offer you a variety of material options, including silicone, and PU, tailored to meet the specific requirements of your project for durability and performance.
Logo Customization
provide you logo customization options, allowing you to incorporate your brand identity directly onto the product for a personalized and professional finish.
IC Customization
Provide you various control options, including SPI, Dual Data, DMX Signal protocol, allowing you to tailor different IC to your preferences.
Accessories Customization
provide you customizable accessories for our LED neon strips, ensuring you have everything you need for a seamless installation, from connectors to mounting hardware.
Package Customization
Custom outer boxes, reels, instruction manuals, and barcode stickers available — ready for retail or wholesale distribution.
Why choose our Factory?
Why choose our Factory?
Premium Materials Only
We use only Top-brand LEDs (Epistar, Lumileds), Dow Corning silicone, 3-ounce copper FPC, UL-listed 20AWG cables, and Unique Finished — designed for long lifespan and top-level performance.
Custom Molding
We design and develop everything from FPC layouts, pixel IC configurations to extrusion molds internally — ensuring full control over lighting performance, structure, and customization.

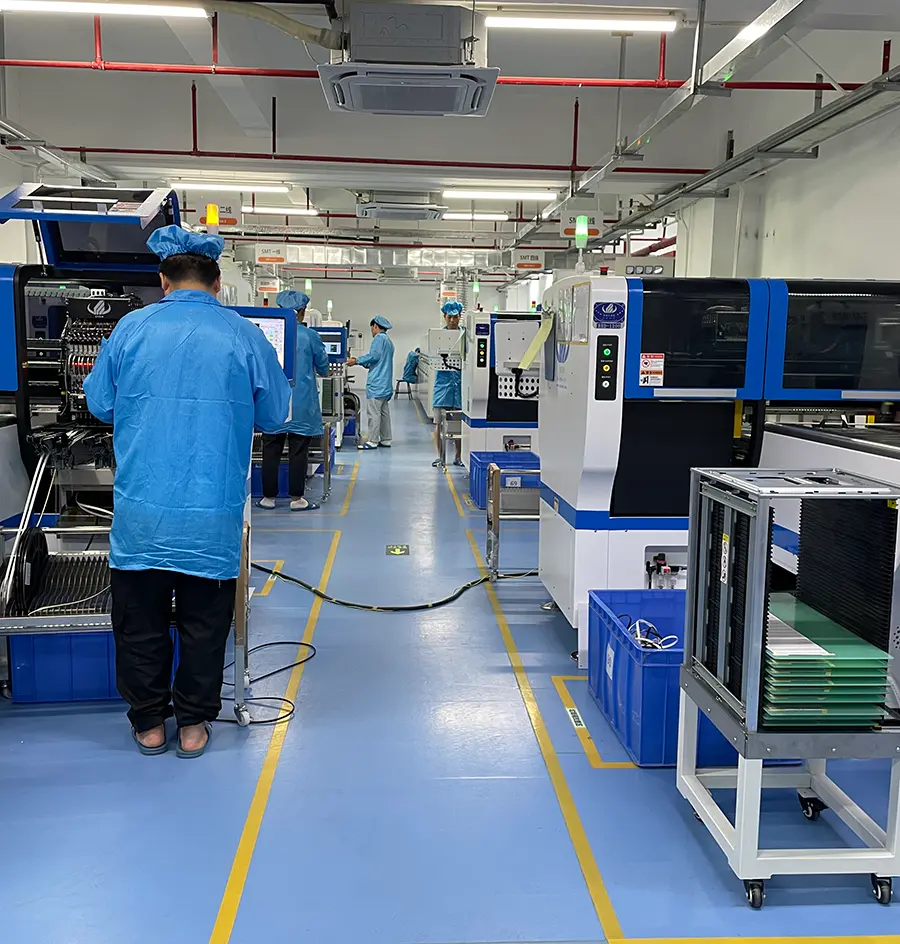

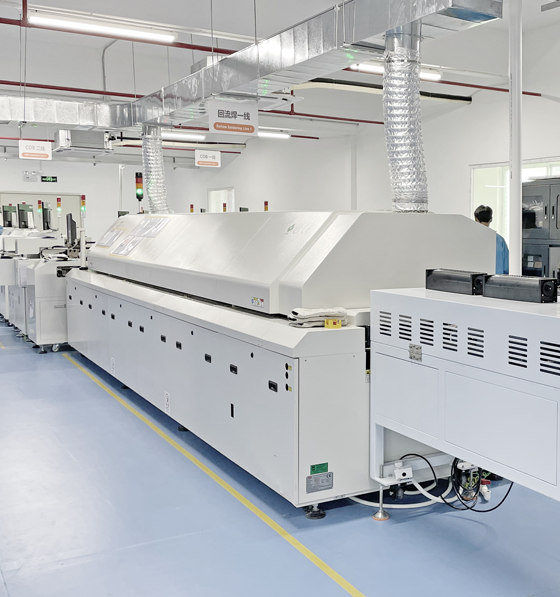

Automated Production
Equipped with advanced SMT machines, extrusion lines, and aging chambers, we deliver high consistency and efficiency from prototype to mass production.
Multipied Quality Testing
Each batch of LED strip lights undergoes multiple rounds of testing: electrical, waterproof (IP67/IP68), high-temperature, signal stability, and light decay verification, ensuring a <1% failure rate in the field.
Strong OEM/ODM Support
From private label, IC customization, color tuning, to tailored packaging — we support global lighting brands, wholesalers, and system integrators with flexible OEM service.
Stable Supply
We keep inventory for standard models and key components to support quick delivery. Even during chip shortages, our robust supply chain ensures project timelines stay on track.
CE,ROHS, UL Certified
All products are CE, RoHS compliant, and built to meet global standards. We’ve shipped to 50+ countries and know what matters for architectural, signage, and commercial lighting markets.
One Stop Solution
From LED strip + controller + profile + power supply — to full project-level solutions, we’re more than a factory — we’re your reliable technical and strategic partner.
Addressable LED Strip Lights Neon FAQ
Addressable LED Strip Lights Neon FAQ
Yes. Our T Shape connectors and Signal switching cables accessories are designed for both indoor and outdoor applications. all of them are IP67 Rated for long-term protection against water, and dust
For a complete pixel LED neon installation, you’ll typically need:
- T-shape Signal Connector – for branching control signals to multiple strips
- Signal Switching Cable – for connecting two segments with consistent data flow
- Solder-free Connectors – for quick installation without soldering
- End Caps + Waterproof Glue – for IP67/IP68 level waterproof sealing
Most modern ICs like UCS2904 support breakpoint resume, Dual Data, meaning the strip will continue working even if one pixel fails. Easy maintenance and repair options are available.
For Details, Please read the Guide: What Is Dual data Addressable led strip? A Complete Guide to FailSafe Pixel Lighting
Yes! You can upload custom programs using software like LED Edit, Madrix, or Artnet. We also offer pre-programming services if you share the desired lighting effect or pattern.
Generally speaking, we use the following IC options for Addressable LED neon Strip, including:
WS2811 /UCS1903 – cost-effective, 8-bit RGB control
UCS2904 – 16-bit precision, RGB+W control
UCS512C2L – DMX512 compatible, 8- or 16-bit modes
UCS2603 – Dual Data, high refresh rate for smoother effects
Our Addressable neon Strip Lights are compatible with most SPI and DMX controllers on the market, including:
Madrix, Artnet, K1000C, T1000S, AlphaPix, ENTTEC
Works with PC-based software, or offline SD card players
Compatible with DMX console or programmable controllers
Depends on the IC and voltage. For 24V SPI types, we recommend ≤5 meters per segment before voltage drop or signal weakening. DMX versions can extend farther with repeaters.
