Pixel Neon Rope Lights 1010
The Top Bend Pixel Neon Rope Light 1010 is an advanced addressable LED strip designed for creative lighting applications. Built with WS2811 IC SPI protocol, this neon light strip enables precise pixel control, allowing for stunning dynamic effects. The high-quality silicone housing ensures superior flexibility, durability, and resistance to yellowing, making it perfect for both indoor and outdoor projects.
With IP67 waterproof protection, it withstands harsh environments, including moisture, salt, and UV exposure. The top-bending design allows for seamless integration into signage, architectural contours, and artistic installations. Backed by a 3-year warranty, this neon rope light is the ultimate solution for professionals seeking high-performance, vibrant, and customizable LED lighting.
Main Features
- Addressable WS2811 IC – Enables dynamic lighting effects through individual pixel control via serial protocol.
- SPI Protocol Compatibility – Seamless integration with mainstream controllers for programmable RGB animations.
- Horizontal Bend Design – Engineered for smooth 90° horizontal curvature without light distortion.
- Premium Silicone Construction – Utilizes Dow Chemical SILASTIC™ ET-7021 for optical clarity, UV stability, and extended durability.
- IP67 Weatherproof Rating – Certified protection against water immersion, salt corrosion, and extreme environmental conditions.
- Optical Uniformity Technology – Integrated light diffusion system eliminates hotspots for consistent illumination.
- High-Efficiency Performance – 30,000+ hour operational lifespan with 3-year warranty coverage.
Technical Parameter
| Part NO. | SR-NEON-TV1010-RGBD |
|---|---|
| LED Type: | 2835 RGB |
| LED Qty: | 120leds/m |
| Voltage: | DC24V |
| Driver Method: | Constant Voltage |
| Power: | 12.5W/m |
| Signal Type: | SPI Protocol |
| IC Type: | WS2811 |
| Pixel Segment: | 10 pixels |
| Colors available: | RGB (R:620-625nm; G:515-525nm;B:460-465nm) |
| Beam angle: | 120° |
| Bending Direction: | Top Bend, Vertical Bend |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 100mm |
| Cable Option : | UL Listed PVC 20AWG Cable |
| Cable Entry Option : | Front Cable Entry |
| End Cap option: | Silicone End Cap |
| Dimension: | 16mm*15mm/(W*H) |
| Working temperature: | -25 – +60℃ |
| Accessories: | Mounting Clips, Aluminum profiles |
| Working Life: | >50000 working hours |
| IP Rated: | IP67 |
| Warranty | 5 years warranty for indoor; 3 years warranty for outdoor use; |

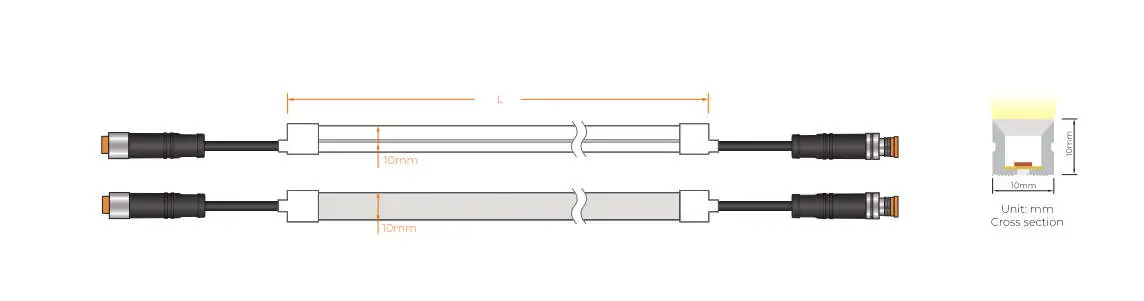

Dimension

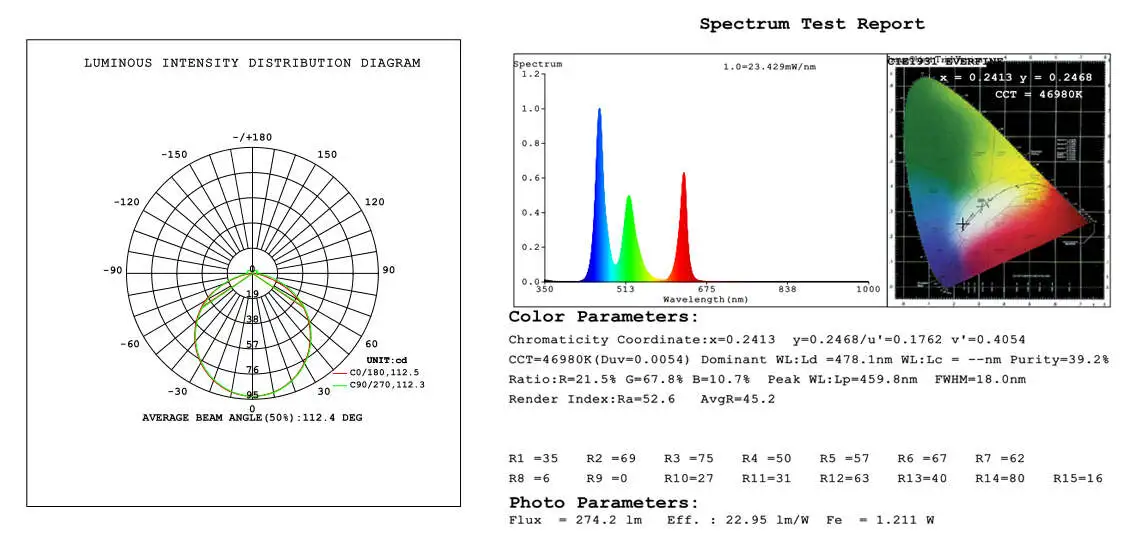

Test Report of WS2811 Neon Rope Lights
