Addressable RGB LED Neon Tube 25R
The Pixel LED Neon Tube 25R is a next-generation flexible neon light offering 360° seamless illumination with no dark spots. Designed with a sleek and ultra-flexible profile, it outperforms traditional neon in both aesthetics and adaptability—perfect for architectural accents, creative signage, and artistic lighting installations.
Crafted from high-transparency, eco-friendly silicone, this tube is produced using an advanced extrusion molding process for enhanced durability. It resists UV rays, salt spray, acid, alkali, and high temperatures, ensuring long-term performance. The IP65 waterproof rating makes it fully suitable for outdoor and demanding environments.
Engineered for creativity, the addressable RGB version delivers vivid, customizable pixel lighting effects—ideal for dynamic displays, events, and immersive design. Note: not intended for DIY cutting, ensuring consistent output and optimal performance.

Main Features of Dome neon tube lighs
- 360° Uniform Glow – No shadows or hotspots for flawless visual appeal.
- Ultra-Flexible Design – Perfect for curves, contours, and creative layouts.
- Eco-Friendly Silicone Body – UV, salt, and chemical resistant for harsh environments.
- IP65 Waterproof Rating – Reliable in rain, humidity, and outdoor use.
- Addressable RGB Pixel Control – Create dynamic, full-color lighting effects.
- Extrusion Molding Technology – Provides durability and a smooth, premium finish.
- Not for DIY Cutting – Maintains electrical stability and long service life.
Technical Parameter
| Part NO. | SR-NEON-25R-RGBD |
|---|---|
| LED Type: | 2835 RGB |
| LED Qty: | 120leds/m |
| Voltage: | DC24V |
| Driver Method: | Constant Voltage |
| Power: | 12.5W/m |
| Signal Type: | SPI Protocol |
| IC Type: | WS2811 |
| Pixel Segment: | 10 pixels |
| Colors available: | RGB (R:620-625nm; G:515-525nm;B:460-465nm) |
| Beam angle: | 360° |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 100mm |
| Cable Option : | UL Listed PVC 20AWG Cable |
| Cable Entry Option : | Front Cable Entry |
| End Cap option: | Silicone End Cap |
| Dimension: | D25mm |
| Working temperature: | -25 – +60℃ |
| Accessories: | Mounting Clips, Aluminum profiles |
| Working Life: | >50000 working hours |
| IP Rated: | IP65 |
| Warranty | 5 years warranty for indoor; 3 years warranty for outdoor use; |

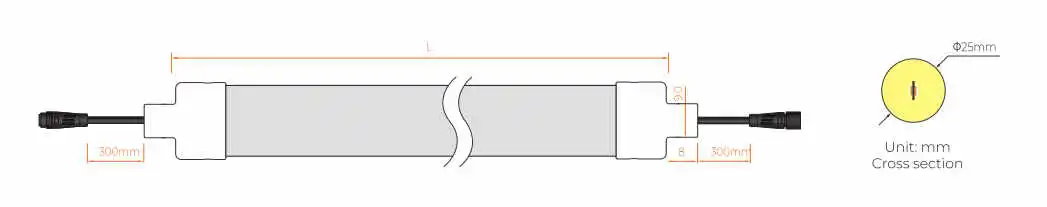

Dimension

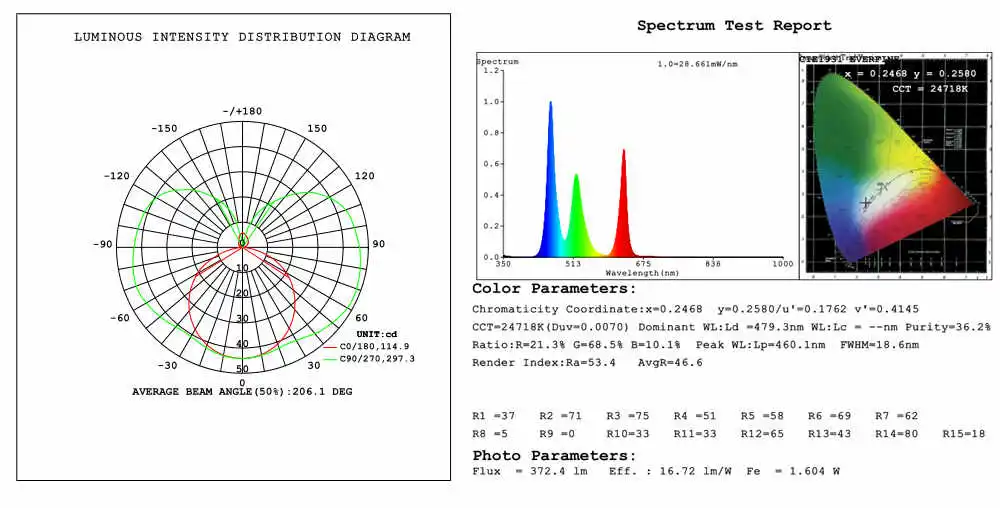

Test Report of WS2811 Neon Rope Lights
