Pixel LED Neon Tube Light 16D
The Top Bend Pixel LED Neon Tube Light D16 is a high-performance addressable neon strip designed for dynamic and customizable lighting applications. Built with WS2811 IC Driver and SPI Protocol, this neon tube offers precise pixel control, allowing for vibrant animations and seamless color transitions.
Its 16mm diameter Neon Strip lights and vertical bending flexibility (200mm bending diameter) make it ideal for creative installations, architectural contours, and signage. Manufactured using integrated silicone extrusion molding technology, the 16D neon light is IP67 waterproof, UV-resistant, salt-alkali resistant, and highly durable, making it perfect for both indoor and outdoor environments.
Main Features of Dome neon tube lighs
WS2811 IC & SPI Protocol – Enables addressable pixel control for dynamic RGB effects.
Top Bend Flexibility – Vertical bending with a 200mm bending diameter for versatile design applications.
High-Quality Silicone Construction – Made with integrated silicone extrusion molding for superior durability and flexibility.
Seamless & Uniform Illumination – No dark spots, delivering smooth and consistent lighting.<
IP67 Waterproof & Weather-Resistant – Protects against water, UV rays, and salt-alkali corrosion, ensuring long-term outdoor use.
DC24V Safe Low Voltage – Efficient and safe power operation for various applications.
Multiple Application Scenarios – Ideal for architectural lighting, signage, interior decoration, and outdoor installations.
Technical Parameter
| Part NO. | SR-NEON-TV16D-RGBD |
|---|---|
| LED Type: | 2835 RGB |
| LED Qty: | 120leds/m |
| Voltage: | DC24V |
| Driver Method: | Constant Voltage |
| Power: | 12.5W/m |
| Signal Type: | SPI Protocol |
| IC Type: | WS2811 |
| Pixel Segment: | 10 pixels |
| Colors available: | RGB (R:620-625nm; G:515-525nm;B:460-465nm) |
| Bending Direction: | Top Bend, Vertical Bend |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 100mm |
| Cable Option : | UL Listed PVC 20AWG Cable |
| Cable Entry Option : | Front Cable Entry |
| End Cap option: | Silicone End Cap |
| Dimension: | D16mm |
| Working temperature: | -25 – +60℃ |
| Accessories: | Mounting Clips, Aluminum profiles |
| Working Life: | >50000 working hours |
| IP Rated: | IP67 |
| Warranty | 5 years warranty for indoor; 3 years warranty for outdoor use; |

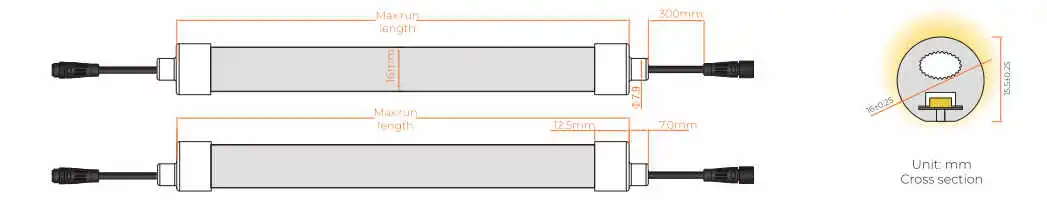

Dimension

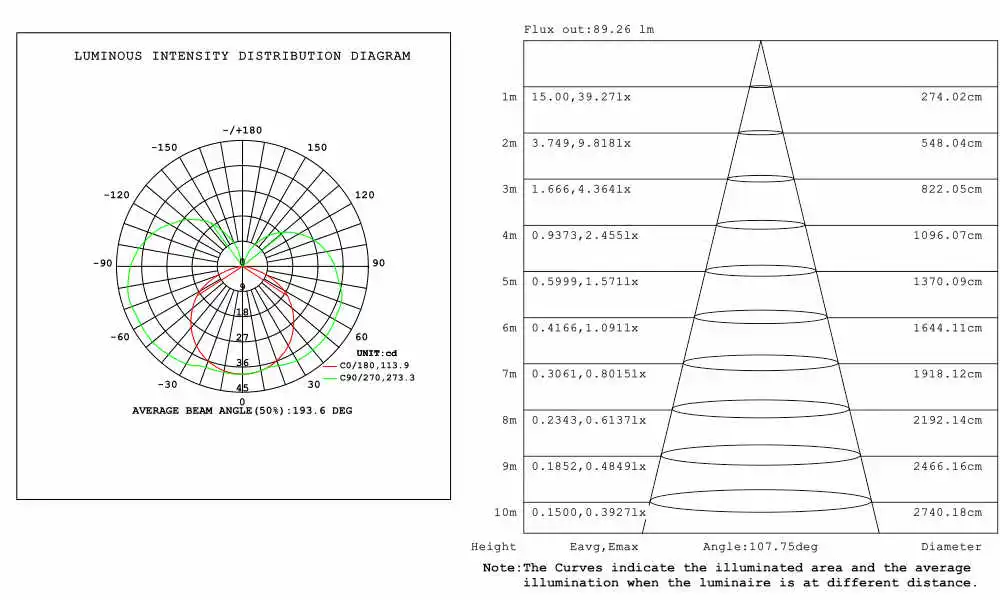

Test Report of WS2811 Neon Rope Lights
