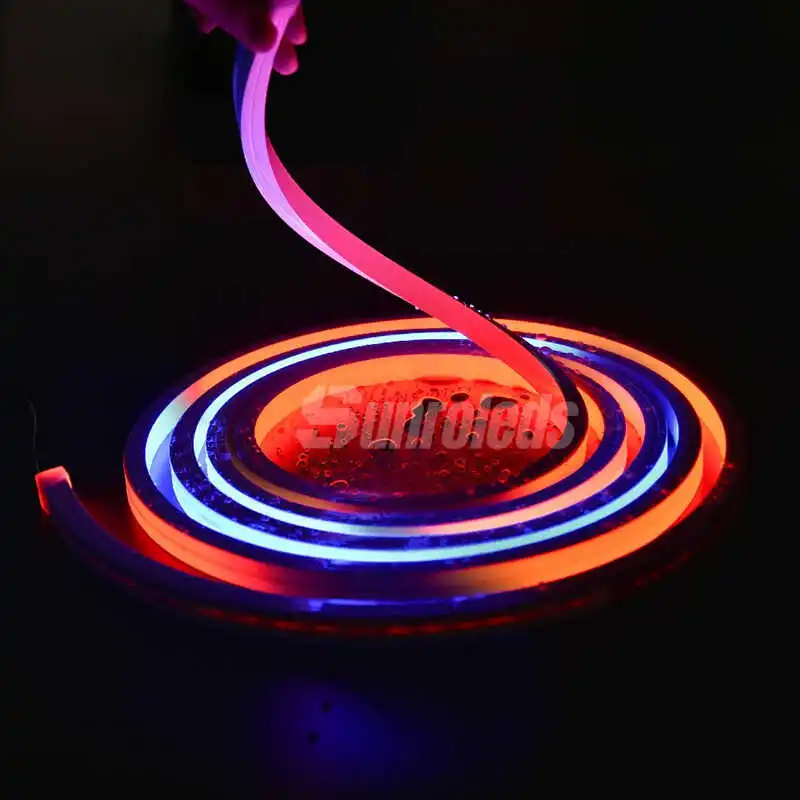

Addressable Neon LED Strip Lights 1615
The Top Bend Flex 1615 Addressable Neon LED Strip Light features Dow Chemical SILASTIC™ ET-7021 optical-grade silicone with 94% light transmission and 70° Shore A hardness. This eco-compliant solution delivers zero-gradient illumination across 50-meter runs. Its multi-axis bending architecture maintains optical consistency through 120° horizontal bends for commercial façades, experiential retail displays, and kinetic art integrations.
Certified IP67 with military-grade encapsulation, the system withstands UV exposure (50k hours @ 0.76W/m²) and pH 2-14 chemical immersion. Through DMX512/SPI dual-protocol control, it achieves 16 million color animations with 0-100% dimming via sACN compatibility, enabling professional-grade lighting synchronization.

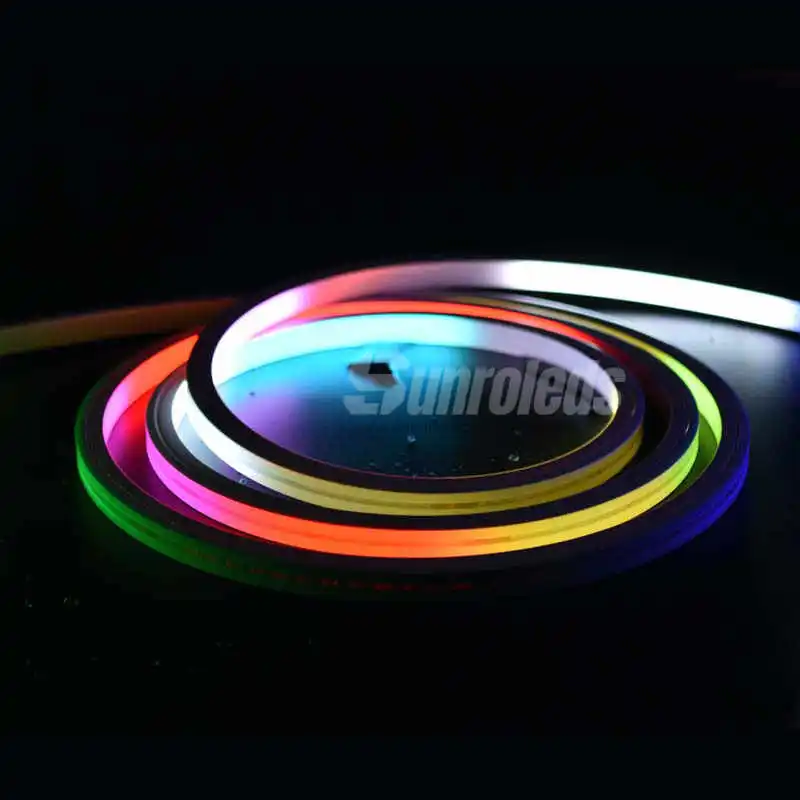

Main Features of Pixel Neon LED Strip Lights
- Industrial Silicone Housing – Dow Chemical SILASTIC™ ET-7021 certified with 95% light transmission and 65 Shore A tear resistance.
- Dual-Protocol Control – DMX512/SPI interface enables 24-bit color rendering at 2000Hz refresh rates for live synchronization.
- Optical Uniformity System – Micro-lens array achieves ±3% luminance variance across 10-meter continuous runs.

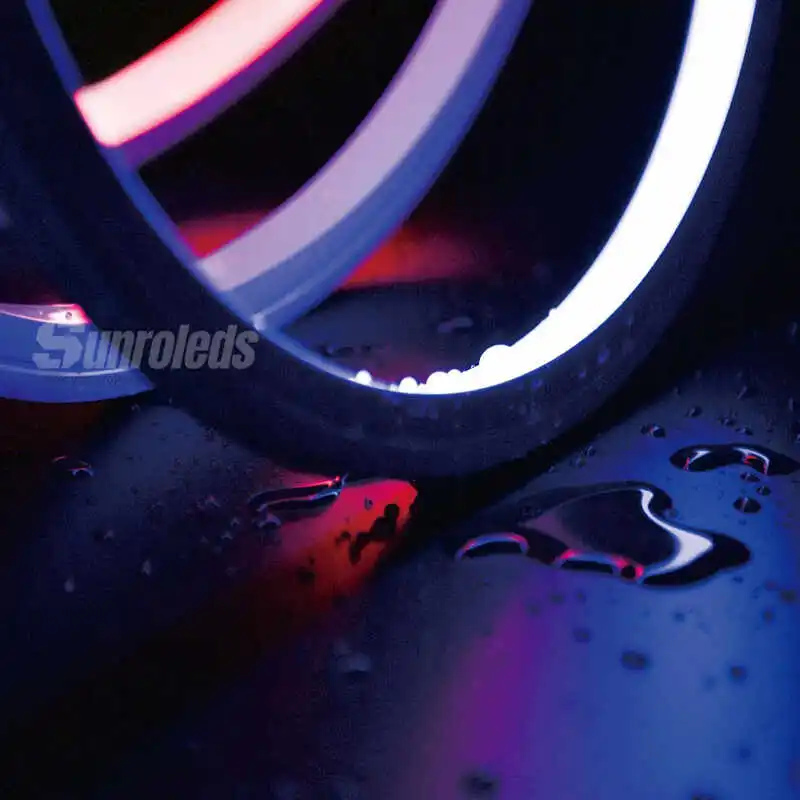

- IP67 Waterproof protection – Survives 72hr salt spray (ASTM B117) and pH 1-13 chemical immersion cycles.
- Multi-Plane Bending Geometry – Maintains optical clarity through 135° horizontal/vertical bends with 5mm radius tolerance.
- 50,000-Hour L70 Rating – 90 lm/W efficacy with <2% lumen depreciation after 15,000 operational hours.
- Architectural Mounting System – 16×15mm extruded aluminum channel compatible with T-slot mounting hardware.
- Performance Warranty – 3-year comprehensive coverage + 2-year optional extension with <0.15% annual failure rate.
Technical Parameter
| Part NO. | SR-NEON-TV1615-RGBD |
|---|---|
| LED Type: | 5050 RGB |
| Voltage: | DC24V |
| Driver Method: | Constant Voltage |
| Power: | RGB : 12W/m RGBW: 15W/m |
| Signal Type: | DMX512 RGB & RGBW / SPI RGBW / Breakpoint transmission RGB |
| IC Type: | UCS512C2L / UCS2603 / UCS2904 /WS2818 |
| Pixel Segment: | 8 pixels |
| Colors available: | RGB (R:620-625nm; G:515-525nm;B:460-465nm) |
| Beam angle: | 110° |
| Bending Direction: | Top Bend, Vertical Bend |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 125mm |
| Cable Option : | UL Listed PVC 20AWG Cable / Silicone 20AWG Cable |
| Cable Entry Option : | Front Cable Entry/ Side Cable Entry / Bottom Cable Entry |
| End Cap option: | Silicone End Cap / Integral End Cap / Combine End Cap |
| Dimension: | 16mm*15mm/(W*H) |
| Working temperature: | -25 – +60℃ |
| Accessories: | Mounting Clips, Aluminum profiles, Suspension Accessories |
| Working Life: | >50000 working hours |
| IP Rated: | IP67 |
| Warranty | 5 years warranty for indoor; 3 years warranty for outdoor use; |

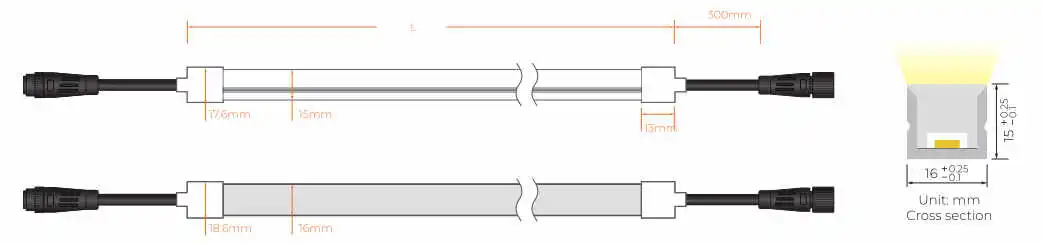

Dimension

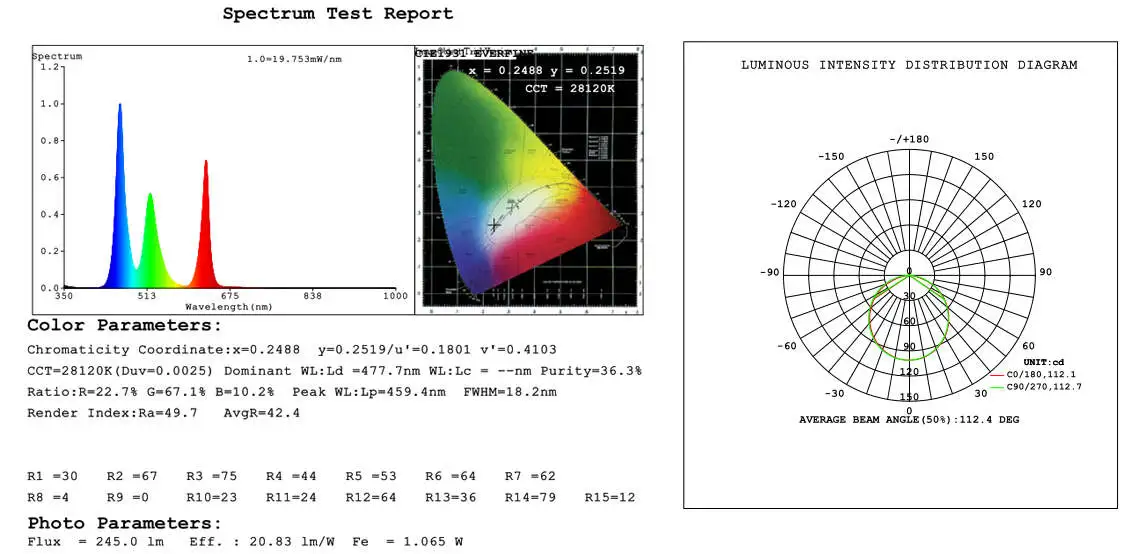

Test Report of DMX RGBW LED Neon Strip 1615
