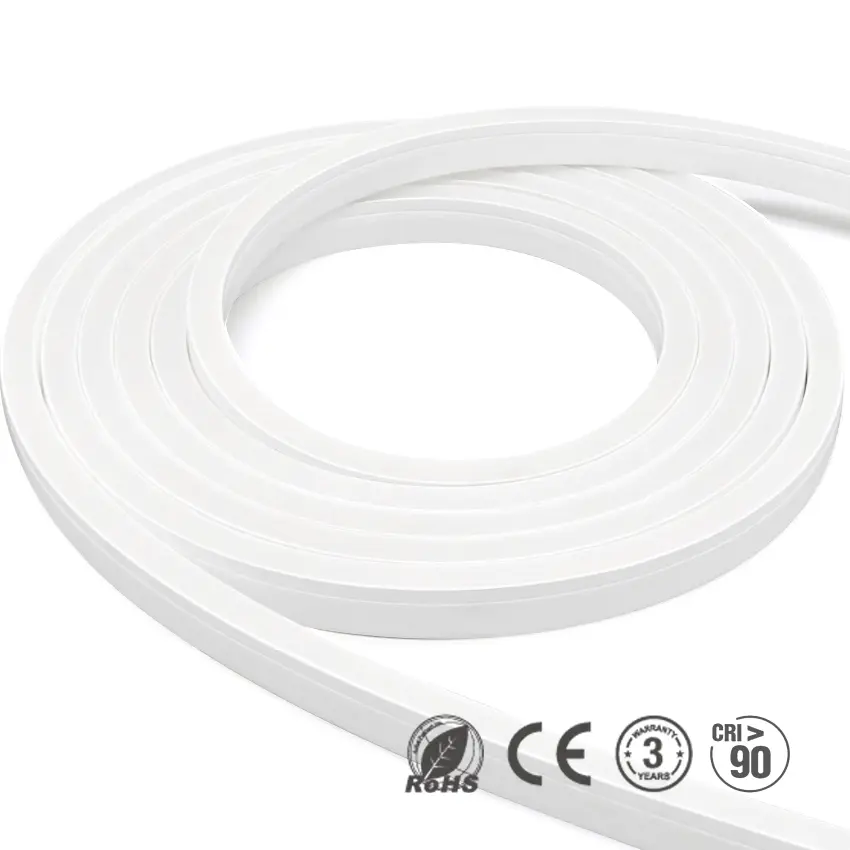

DMX Silicone Neon LED Flexible Strip 1220
The Digital Neon LED Flexible Strip 1220 is the ultimate lighting solution for professionals seeking dynamic lighting effects and outdoor durability. Compatible with SPI and DMX512 control systems, this flexible neon strip allows for precise color control and programmable lighting effects, making it ideal for architectural facades, outdoor displays, and creative installations.
Available in both RGB and RGBW options, it offers a wider range of color choices and richer lighting effects, from vibrant hues to pure whites. Built for outdoor use, it features superior waterproofing, ensuring reliable performance in challenging weather conditions. Combining durability, versatility, and stunning illumination, this strip is perfect for transforming any space with seamless, professional-grade lighting.
Main Features
- RGB & RGBW Options: Choose from RGB for vivid color effects or RGBW for added white tones, providing greater design flexibility.
- DMX512 & SPI Control Compatibility: Supports precise programming and dynamic effects for synchronized lighting shows, perfect for architectural and entertainment applications.
- Outdoor-Grade Waterproofing: Engineered for outdoor environments, with excellent waterproof performance ensuring reliable operation in various weather conditions.
- Dynamic Visual Effects: Ideal for architectural lighting, outdoor decorations, facade illumination, and creative projects requiring customizable light shows.
- Flexible & Durable Design: The bendable silicone structure allows for easy installation in curved and complex designs while ensuring long-lasting durability.
- Seamless Lighting Output: Uniform illumination with no shadowing, enhancing the aesthetic appeal of any space.
Technical Parameter
| Part NO. | SR-NEON-SH1220-RGBD |
|---|---|
| LED Type: | 5050 RGB |
| Voltage: | DC24V |
| Driver Method: | Constant Voltage |
| Power: | RGB : 12W/m RGBW: 15W/m |
| Signal Type: | DMX512 RGB or RGBW / SPI RGBW 4-in-1 / Breakpoint transmission RGB |
| IC Type: | UCS512C2L / UCS2603 / UCS2904 |
| Pixel Segment: | 8 pixels |
| Colors available: | RGB (R:620-625nm; G:515-525nm;B:460-465nm) |
| Beam angle: | 110° |
| Bending Direction: | Side Bend, Horizontal Bend |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 125mm |
| Cable Option : | UL Listed PVC 20AWG Cable / Silicone 20AWG Cable |
| Cable Entry Option : | Front Cable Entry/ Side Cable Entry / Bottom Cable Entry |
| End Cap option: | Silicone End Cap / Integral End Cap / Combine End Cap |
| Dimension: | 12mm*20mm/(W*H) |
| Working temperature: | -25 – +60℃ |
| Accessories: | Mounting Clips, Aluminum profiles, Suspension Accessories |
| Working Life: | >50000 working hours |
| IP Rated: | IP67 |
| Warranty | 5 years warranty for indoor; 3 years warranty for outdoor use; |

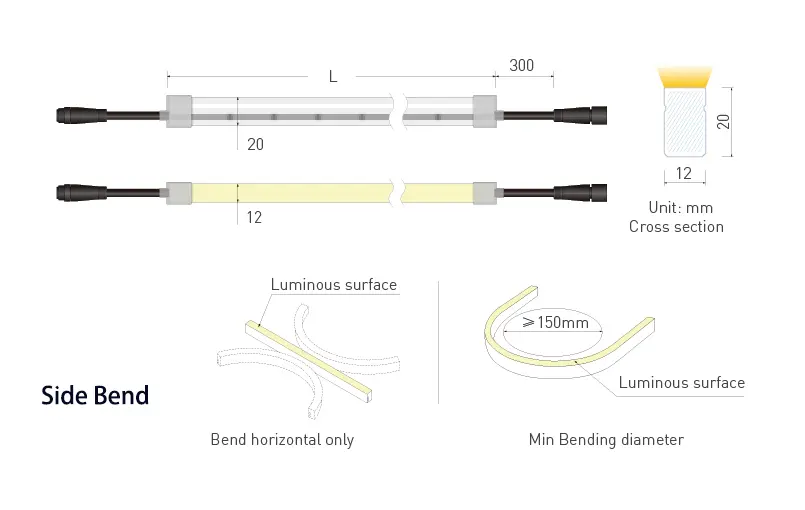

Dimension
