Addressable DMX512 & SPI LED Neon Flex 1225
The Addressable LED Neon Flex is integrated with DMX512 and SPI options. It is an ideal solution for professional lighting projects that require dynamic effects and ultimate customization. Its durable silicone design, advanced DMX512 compatibility, and IP67 rating make it perfect for architectural, commercial, and creative lighting applications.
Main Features of Side Bend DMX512 LED Neon Light
- Advanced DMX512 & SPI Control: Enables precise programming of dynamic lighting effects like chasing, gradient, and pulsating patterns.
- Premium Silicone Material: Made from Dow Chemical SILASTIC™ ET-7021 silicone rubber, ensuring high transparency, strength, and durability.
- Customizable Lengths: Supports tailored length adjustments for precise and seamless installations.
- Exceptional Durability: UV resistance, salt solution resistance, and anti-yellowing properties for reliable outdoor use.
- Uniform Illumination: Innovative optical light distribution structure provides a smooth, shadow-free lighting effect.
- IP67 Protection: Designed for outdoor environments with high water and dust resistance.
- Long Lifespan: Over 50,000 hours of working life, supported by a 5-year warranty.
Technical Parameter
| Part NO. | SR-NEON-SH1225-RGBD |
|---|---|
| LED Type: | 5050 RGB / 4-in-1 RGBW |
| LED Qty: | 80leds/m |
| Voltage: | DC24V |
| Driver Method: | Constant Voltage |
| Power: | RGB : 12W/m RGBW: 15W/m |
| Signal Type: | DMX512 RGB or RGBW 4-in-1 / SPI RGBW 4-in-1 / Breakpoint transmission RGB |
| IC Type: | UCS512C2L / UCS2904 /UCS2603 |
| Pixel Segment: | 8 pixels |
| Colors available: | RGB (R:620-625nm; G:515-525nm;B:460-465nm) |
| Beam angle: | 110° x 220° |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Bending Direction: | Side Bending, Horizontal Bending |
| Cable Entry: | Front Cable Entry |
| Cable: | UL Listed PVC 20AWG Cable / Silicone 20AWG Cable |
| End Caps Option: | Silicone Endcaps |
| Cuttable Length: | 125mm |
| IP Rated: | IP67 |
| Dimension: | 12mm*25mm/(W*H) |
| Working temperature: | -25 – +60℃ |
| Accessories: | IP67 waterproof Male and Female Plug / IP67 Signal Cable / IP67 Power cable / Controller |
| Working Life: | >50000 working hours |
| Warranty | 3 years warranty |

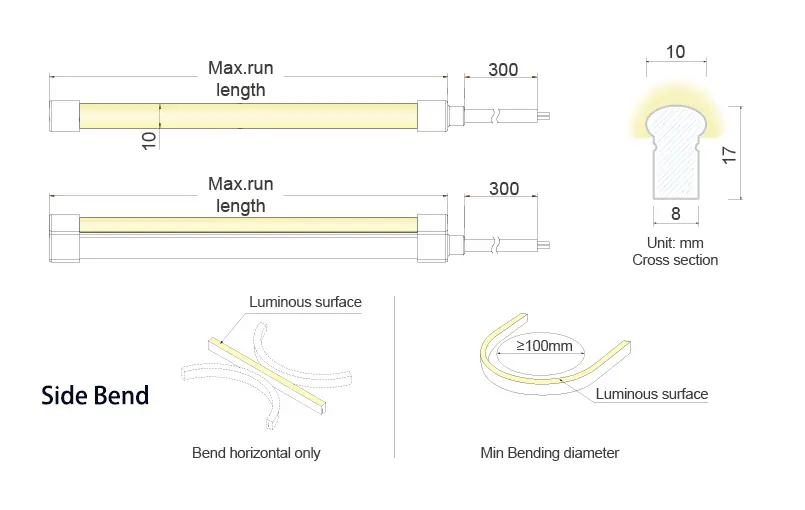

Dimension

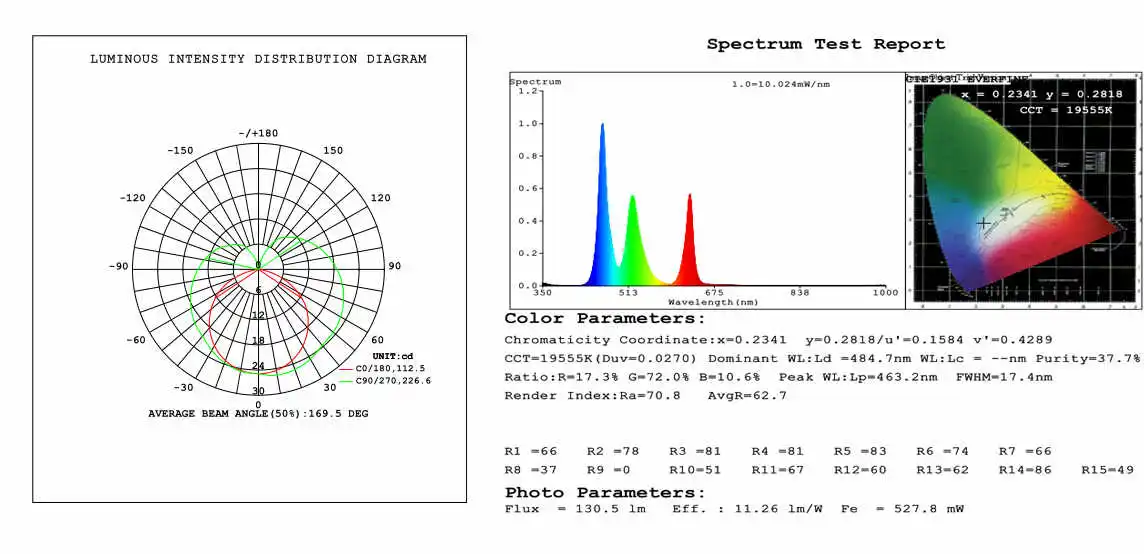

Test Report of DMX RGB Strip
