Silicone Neon LED Strip Lights 0816

The Neon LED Strip Lights utilize a one-piece extrusion molding process with Dow-corning silicone, ensuring durability and a seamless design that enhances water resistance. The LED neon is capable of horizontal bending with a minimum diameter of 100mm, providing flexibility for various lighting designs and installations. With a cross-sectional size of 8mm*17mm (width*height), it offers a slim and discreet profile, providing even and consistent illumination without visible hot spots or glare, ensuring aesthetically pleasing lighting effects. Suitable for a broad range of indoor and outdoor lighting applications, including architectural lighting, signage, landscape features, and decorative accents.

Certification

Main Features of Silicone Neon LED Strip lights

  • Advanced Silicone Material: Made with Dow Chemical SILASTIC™ ET-7021 silicone rubber for superior transparency, strength, and durability.
  • Exceptional Resistance: Resistant to salt solutions, acids, alkalis, and UV rays, ensuring performance in harsh environments.
  • Uniform Illumination: Unique optical light distribution structure eliminates shadows, providing a smooth and consistent lighting effect.
  • Flexible Bending: Horizontal bending with a diameter of 100mm allows for creating various shapes and designs.
  • Compact Dimensions: Measuring 8mm (W) x 17mm (H), it’s ideal for sleek, space-saving installations.

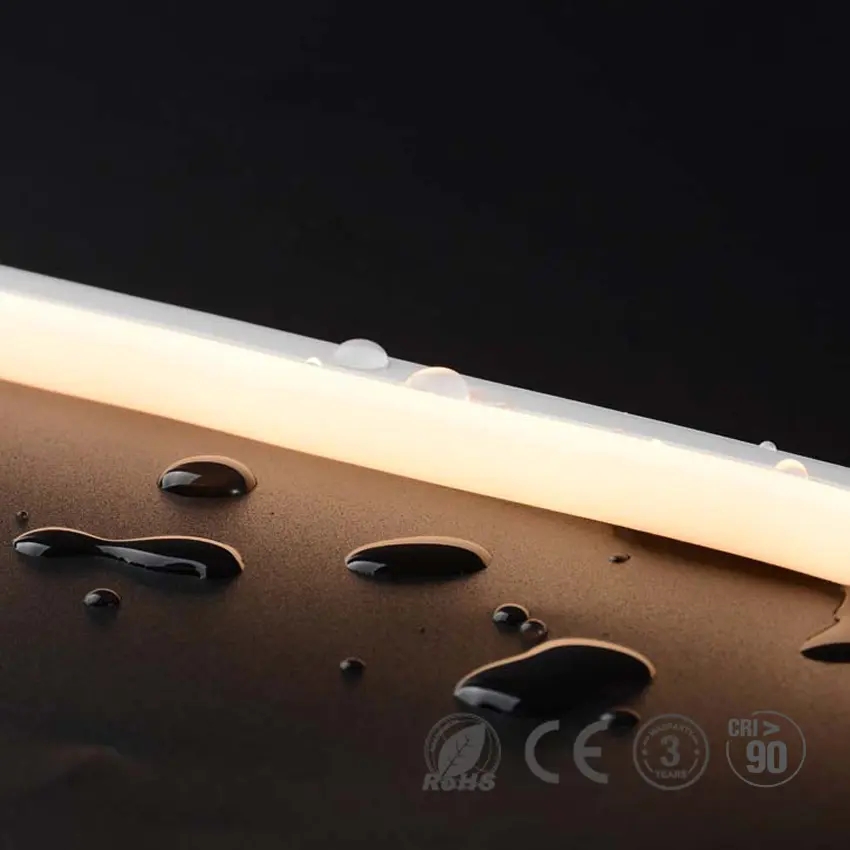

  • IP67 Waterproof: Suitable for indoor and outdoor applications, offering reliable performance even in harsh environments.
  • Multiple Color Options: Available in a wide range of vibrant colors,White, Red, Blue, Green, yellow, Pink, Orange, CCT, and RGB to suit diverse lighting needs.
  • Customizable Lengths: Tailor the strip length to your specific requirements for seamless installation.
  • Versatile End Caps: Choose from various end cap designs for the perfect finish in any setup.
  • Long Lifespan: Built to last with a working life of over 50,000 hours and a reliable 5-year warranty.

Technical Parameter



Part NO. SR-NEON-SH0817X
LED Type: Top LED 2835, CRI>90, SDCM<3
Voltage: DC24V
Driver Methord Option: Constant Current / Constant Voltage
Power: 5w/10w
Lumen: 150-430Lm / m
Colors available: White(2000-6500K), red, blue, green, yellow, Pink, Orange, CCT, RGB
Beam angle: 180 degree
Bending Direction: Side Bending, Horizontal Bending
Material: American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance
Cable Entry: Front Cable Entry
Cable: UL Listed PVC 20AWG Cable / Silicone 20AWG Cable
End Caps Option: Integrated End Caps / Solder Free End Caps / Silicone Endcaps
Accessories: Mounting Clips, Aluminum profiles, Flexible Aluminum Profiles
Dimension: 8mm*17mm/(W*H)
Cuttable Length: 50mm
Working temperature: -25 – +60℃
IP Rated: IP67 Rated
Working Life: >50000 working hours
Warranty 5 years warranty

Dimension

size 0817

Dimension
