Side Bend Neon Strip Lights 1225

The Side Bend LED Neon Strip Lights 1225 are engineered with high-quality SILASTIC™ ET-7021 silicone rubber from Dow Chemical, providing exceptional transparency and strength. This environmentally friendly silicone is manufactured using an integrated extrusion molding process, ensuring superior flexibility, durability, and high-performance lighting.

Designed for both aesthetic appeal and practicality, the Neon Strip Lights offer uniform lighting with no shadows, thanks to their unique optical light distribution. The IP67 waterproof rating provides resistance to salt solutions, UV rays, acids, and alkalis, making it an ideal solution for both indoor and outdoor installations.

The tough and durable silicone construction, combined with a sleek and stylish appearance, makes this product a perfect fit for diverse lighting needs. With a 5-year warranty and a 50,000-hour lifespan, the LED Neon Rope Light promises long-term reliability and energy-efficient performance.

Certification

Main Features

  • Premium Silicone Construction:
    Made from Dow Chemical SILASTIC™ ET-7021 silicone rubber, this neon strip light offers high transparency, strength, and flexibility, ensuring reliable performance in diverse environments.
  • Seamless Extrusion Molding: The integrated extrusion process creates a smooth, flexible design ideal for complex installations.
  • Uniform & Shadow-Free Illumination:
    Features a unique optical light distribution design, providing uniform lighting with no shadows, perfect for creating smooth, continuous lighting effects.
  • IP67 Waterproof & Weather-Resistant:
    Rated IP67, the rope light is resistant to UV rays, yellowing, salt, alkalis, and extreme temperatures, making it suitable for both indoor and outdoor lighting applications.
  • Side Bend Flexibility:
    The side bend capability ensures easy shaping for a variety of configurations, offering great flexibility for creative lighting designs.
  • Energy-Efficient & Long-Lasting:
    Powered by DC24V, the constant current technology allows for longer lighting strips, better energy efficiency, and lower installation costs.
  • Tough & Stylish Design:
    Features an elegant, sleek design that is both simple and stylish, blending seamlessly into any setting while offering superior toughness for long-term use.
  • 5-Year Warranty & 50,000-Hour Lifespan:
    With a 5-year warranty and a 50,000-hour lifespan, these neon strip lights ensure low maintenance and extended reliability.

Technical Parameter

Part NO. SR-NEON-SH1225
LED Type: Top LED 2835, CRI>90,SDCM<5
Voltage: DC24V
Driver Method: Constant Current / Constant Voltage
Power: 5w/10w/15W
Lumen: 150-400Lm / m
Colors available: White(2000-6500K), red, blue, green, yellow, Pink, Orange, CCT, RGB, RGBW
Beam angle: 180 degree
Bending Direction: Side Bend, Horizontal Bend
Material: American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance
Cuttable Length: 50mm
Dimension: 12mm*25mm/(W*H)
Max running Length: 5 meters for Constant Voltage Version;
25 meters for Constant Current Version;
Working temperature: -25 – +60℃
Cable: UL Listed PVC 20AWG Cable / Waterproof Plug with Cable
Cable Entry Option: Front Cable Entry / Side Cable Entry / Bottom Cable Entry
End Caps Option Integrated End Caps /  Silicone End caps
Accessories: Mounting Clips, Aluminum profiles, Curve Aluminum Profiles suspension installation
Cutting Mark: Yes
Logo: OEM
IP Rated: IP67 Rated
Working Life: >50000 working hours
Warranty 3-5 years warranty

Dimension

size 1225s

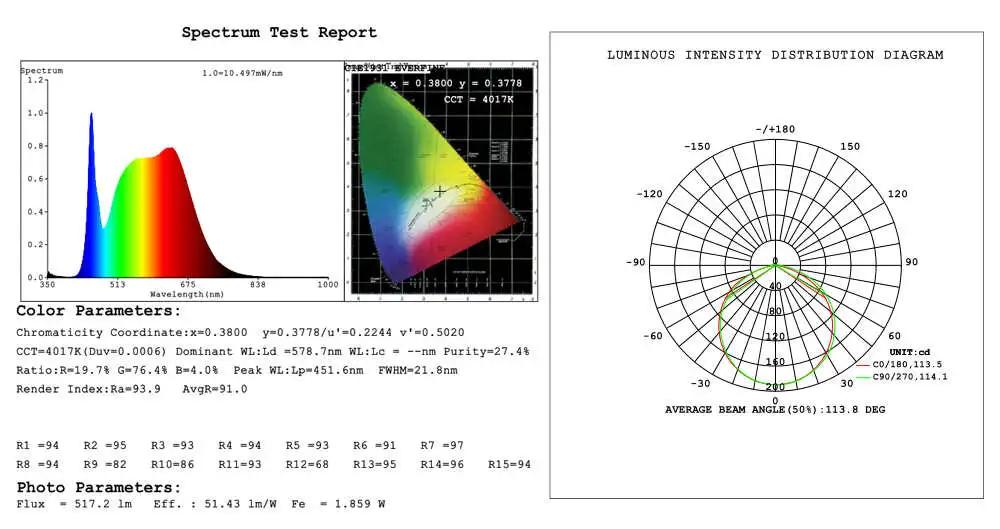

Test Report

Test report
