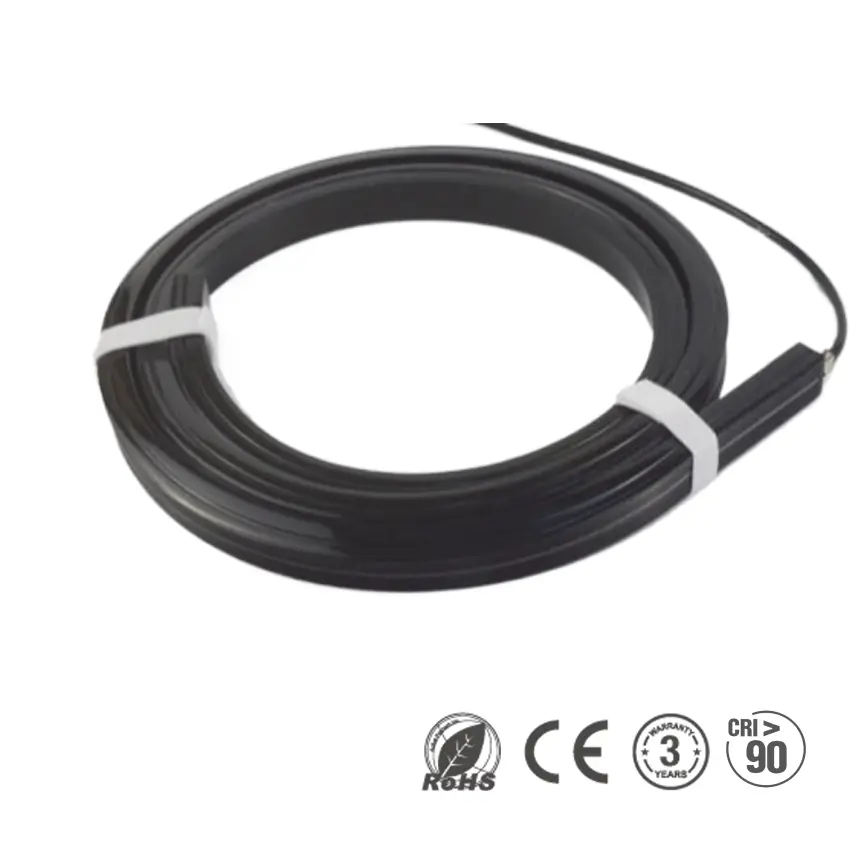

Black Neon LED Strip Light 1615
The Black Silicone Neon LED Strip 1615 is a premium lighting solution designed to combine aesthetic appeal with high-performance features. Featuring a unique black silicone body, this Neon LED strip seamlessly integrates into various environments, offering a modern, sleek appearance that fits naturally into any design. The 5-color silicone extrusion process enhances the transparency and strength of the silicone, ensuring long-term durability and superior performance.
The strip features IP67 waterproof protection, providing resistance to UV rays, yellowing, salt, alkalis, and high temperatures, making it ideal for both indoor and outdoor applications. Its unique optical structure design ensures uniform, shadow-free illumination, delivering consistent lighting with no dark spots or glare. Powered by DC24V and equipped with constant current technology, it allows for longer, more energy-efficient installations, reducing installation costs.
Main Features of Black silicone Neon LED Strip Lights
- SILASTIC™ Silicone Material:
Made from Dow Chemical SILASTIC™ ET-7021 silicone material, providing excellent transparency, strength, and flexibility for long-lasting performance. - 5-Color Silicone Extrusion Technology:
Made using exclusive 5-color silicone extrusion technology, the strip provides superior light transmission, strength, and higher transparency, ensuring consistent and long-lasting illumination. - Uniform, Shadow-Free Illumination:
A unique optical light distribution structure ensures uniform lighting with no shadows or glare, perfect for decorative and functional applications. - IP67 Waterproof & Weather-Resistant:
IP67-rated, providing superior protection against UV rays, yellowing, salt, alkalis, and high temperatures, ideal for both indoor and outdoor installations. - Flexible Bending & Customizable Shapes:
With a bending diameter of 200mm and 16mm x 15mm cross-sectional size, the strip is highly flexible, allowing you to shape it into various configurations for personalized installations. - Constant Current & Energy-Efficient:
Powered by DC24V, the constant current technology ensures longer LED strips and more energy-efficient lighting installations, reducing overall installation and operational costs. - Environmentally Friendly & Durable:
Made from eco-friendly silicone, this strip is designed to be resistant to yellowing, UV degradation, and extreme weather conditions, ensuring long-lasting performance. - 5-Year Warranty:
Backed by a 5-year warranty, ensuring reliability and peace of mind for long-term usage.
Technical Parameter
| Part NO. | SR-NEON-TV1615B |
|---|---|
| LED Type: | Top LED 2835, CRI>90, SDCM<3 |
| Voltage: | DC24V |
| Driver Method: | Constant Current / Constant Voltage |
| Power: | 5w/10w / 15w |
| Lumen: | 10-30Lm / m |
| Colors available: | White(2000-4500K), red, blue, green, yellow, Pink, CCT, RGB, RGBW |
| Beam angle: | 120 degree |
| Bending Direction: | Top Bend, Vertical Bend |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 50mm |
| Dimension: | 16mm*15mm/(W*H) |
| Max running Length: | 5m for Constant Voltage Version; 12-27 meters for Constant Current Version; |
| Working temperature: | -25 – +60℃ |
| Cable: | PVC 20AWG Cable / Silicone 20AWG Cable |
| Cable Entry Option: | Front Cable Entry / Side Cable Entry / Bottom Cable Entry |
| End Caps Available | Integrated End Caps / Silicone Endcaps |
| Accessories: | Mounting Clips, Aluminum profiles, Curve Aluminum Profiles, Suspension Accessories |
| Working Life: | >50000 working hours |
| Cutting Mark: | Yes |
| Logo: | OEM |
| IP Rated: | IP67 Rated |
| Warranty | 3-5 years warranty |
Dimension
Video

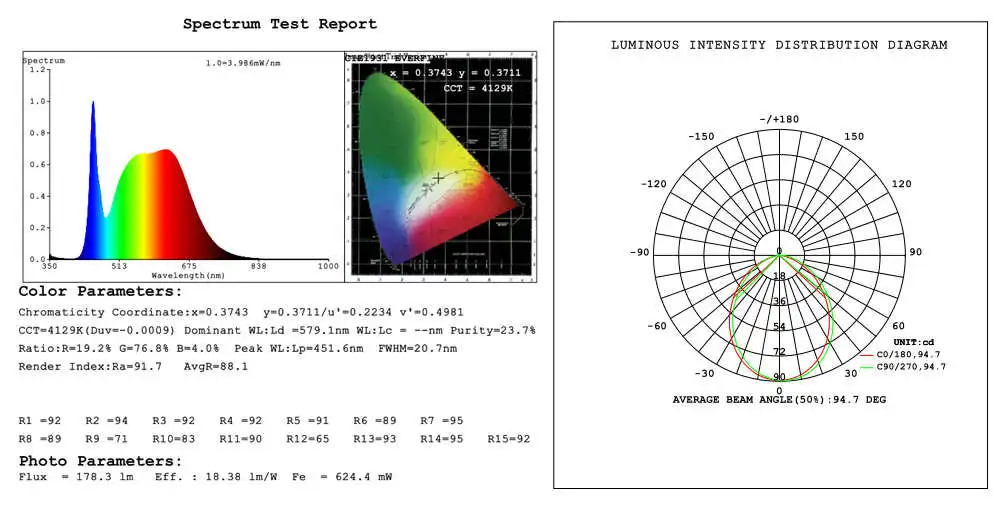

Test Report
