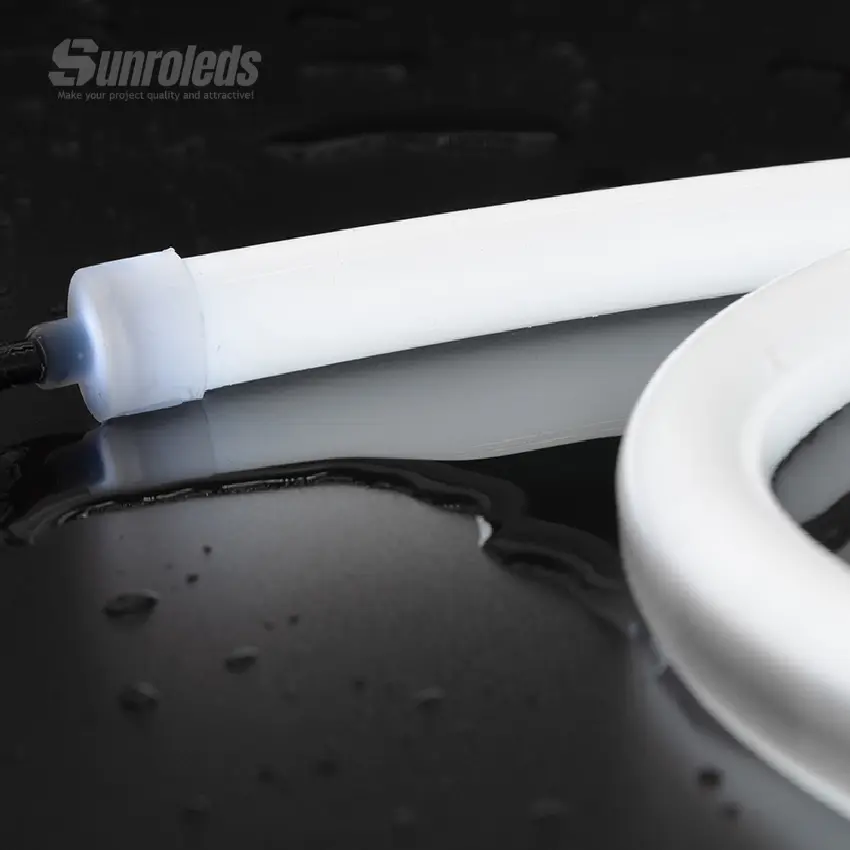

Arc-surface LED Neon Rope Light 16D
The Top Band LED Neon Rope Light 16D is a premium arc-surface illumination solution designed for versatile indoor and outdoor applications. Crafted from high-quality silicone using a seamless one-piece extrusion process, this neon rope light delivers uniform, glare-free illumination with exceptional durability.
With an IP67 waterproof rating, it resists yellowing, UV rays, salt, alkali, and high temperatures, making it ideal for long-term use in challenging environments. The 200mm bending diameter and 16mm cross-sectional diameter allow for easy shaping, making it suitable for creative lighting designs. Its unique end cap design ensures quick, solder-free installations without additional waterproofing treatments, saving time and reducing labor costs.
Main Features
- Premium Silicone Construction:
Crafted from high-quality silicone, this neon rope light ensures exceptional durability, superior flexibility, and excellent light transmission for long-lasting performance. - Arc-Surface Illumination:
Features a curved luminous surface that delivers uniform brightness from every angle, offering an impressive 270° wide viewing angle for enhanced lighting coverage. - Seamless Extrusion Design:
Manufactured using a one-piece silicone extrusion process, resulting in a sleek, streamlined appearance with a robust and durable structure that stands up to demanding environments. - Uniform & Glare-Free Lighting:
Provides consistent, shadow-free illumination, ensuring a smooth and glare-free lighting experience perfect for any indoor or outdoor application. - Flexible Bending Capability:
Designed with a 200mm bending diameter and a 16mm cross-sectional profile, allowing for versatile shaping to accommodate creative lighting designs and complex installations. - IP67 Waterproof & Weather-Resistant:
Engineered with IP67 waterproof protection, this neon rope light is highly resistant to UV rays, yellowing, salt, alkalis, and high temperatures, making it ideal for outdoor use and harsh environments. - Multiple Wiring Options:
Offers top, side, and bottom wiring configurations, providing flexible installation solutions tailored to various lighting setups and design requirements. - Effortless Installation:
Equipped with an innovative end cap design that allows for quick, solder-free installation, eliminating the need for additional waterproofing treatment while accommodating custom lengths
Technical Parameter
| Part NO. | SR-NEON-16D |
|---|---|
| LED Type: | Top LED 2835, CRI>90,SDCM<3 |
| Voltage: | DC24V |
| Driver Method: | Constant Current / Constant Voltage |
| Power: | 5w/10w |
| Lumen: | 300-800Lm / m |
| Colors available: | White(2000-6500K), red, blue, green, yellow, Pink, Orange, CCT, RGB |
| Beam angle: | 270° |
| Bending Direction: | Top Bend, Vertical Bend |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 50mm |
| Max running Length: | 5m for Constant Voltage Version; 19 meters for Constant Current Version; |
| Dimension: | Diameter 16mm |
| Working temperature: | -25 – +60℃ |
| Cable: | UL Listed PVC 20AWG Cable |
| Cable Entry Way: | Front Cable Entry |
| End Caps Available | Integrated End Caps / Solder Free End Caps / Silicone Endcaps |
| Accessories: | Mounting Clips, Aluminum profiles, Curve Aluminum Profiles suspension installation |
| Cutting Mark: | Yes |
| Logo: | OEM |
| Working Life: | >50000 working hours |
| IP Rated: | IP67 Rated |
| Warranty | 3-5 years warranty |
