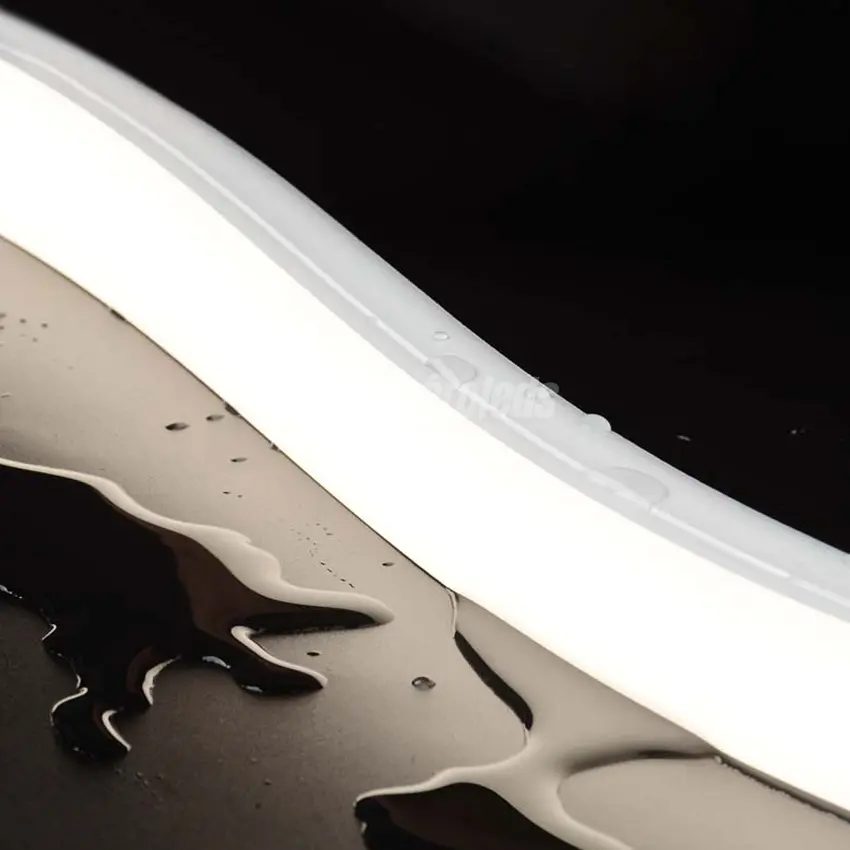

Top Band LED Neon Light Strip 3020
The Top Band LED Neon Light Strip 3020 is engineered for premium performance and durability, making it ideal for both indoor and outdoor lighting projects. Manufactured using Dow Chemical SILASTIC™ ET-7021 silicone rubber, it offers exceptional transparency and strength. The eco-friendly silicone material and integrated extrusion molding process ensure a sleek, seamless finish with enhanced flexibility.
Designed with a unique optical light distribution structure, this Neon Light Strip delivers uniform, shadow-free illumination, creating a smooth and consistent lighting effect in any setting. With an IP67 protection rating, it is highly resistant to UV rays, salt solutions, acids, and alkalis, making it suitable for challenging environments. Its robust construction allows for easy bending and shaping, while the minimalist design complements any space.
Main Features of Top Band Neon Ligh Strip with Big Surface
- High-Quality Silicone Material: Made from Dow Chemical SILASTIC™ ET-7021 silicone rubber for superior transparency and high strength.
- Eco-Friendly & Durable: Environmental protection-grade silicone ensures safe use and long-term durability.
- Seamless Extrusion Molding: The integrated extrusion process creates a smooth, flexible design ideal for complex installations.
- Uniform, Shadow-Free Illumination: Advanced optical light distribution structure ensures consistent lighting without dark spots.
- IP67 Waterproof & Weather-Resistant: Resistant to UV rays, salt solutions, acids, and alkalis, suitable for both indoor and outdoor use.
- Flexible & Versatile Design: Excellent toughness allows for versatile bending, with a simple and elegant appearance that fits any scene.
- Long Lifespan & Warranty: Delivers over 30,000 hours of continuous operation and comes with a 3-5 year warranty.
Technical Parameter
| Part NO. | SR-NEON-TV3020 |
|---|---|
| LED Type: | Top LED 2835, CRI>90,SDCM<3 |
| Voltage: | DC24V |
| Driver Method: | Constant Current / Constant Voltage |
| Power: | 16w/ 20w/24w |
| Lumen: | 836-1400Lm / m |
| Colors available: | White(1700-6500K), red, blue, green, yellow, Pink, Orange, CCT,RGB, RGB+W |
| Beam angle: | 180 degree |
| Bending Direction: | Top Bend, Vertical Bend |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 50mm |
| Dimension: | 30*20mm (W*H) |
| Max running Length: | 5m for Constant Voltage Version; 18 meters for Constant Current Version; |
| Working temperature: | -25 – +60℃ |
| Cable Option: | PVC 20AWG Cable / Waterproof male and female plug |
| Cable Entry Way: | Front Cable Entry |
| End Caps Available | Integrated End Caps / Solder Free End Caps / Silicone Endcaps |
| Accessories: | Mounting Clips, Aluminum profiles, Curve Aluminum Profiles suspension installation |
| Cutting Mark: | Yes |
| Logo: | OEM |
| Working Life: | >50000 working hours |
| IP Rated: | IP67 Rated |
| Warranty | 3-5 years warranty |
Dimension
Video

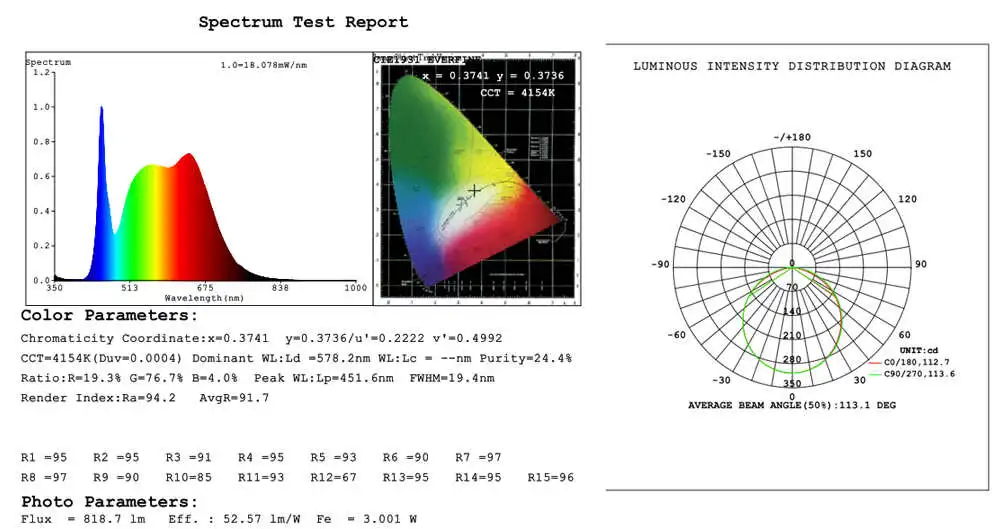

Test Report @ 4000K
