Top Band LED Neon Light Strip 0606
The Top Band Mini LED Neon Light 0606 is a compact, high-performance lighting solution designed for both indoor and outdoor applications. Crafted from eco-friendly silicone through a seamless one-piece extrusion process, this neon light delivers uniform, glare-free illumination with a sleek, minimalist design. Operating at DC24V, it offers flexible installation with three wiring options: top, side, or bottom entry. Its robust IP67 waterproof rating and resistance to UV rays, yellowing, salt, alkali, and high temperatures make it ideal for long-term use in damp or challenging environments.
With a bending diameter of 200mm and compact dimensions of 6mm × 6mm (W × H), this LED neon strip provides excellent flexibility for creative designs. The unique end cap design allows for quick, solder-free installations, eliminating the need for additional waterproofing treatments. Backed by a 3-year warranty and a working lifespan of over 30,000 hours, it’s a reliable and stylish choice for modern lighting projects.
Main Features
- Premium Silicone Material: Made from eco-friendly, high-transparency silicone for enhanced light transmission and durability.
- Seamless Extrusion Technology: The one-piece extrusion process ensures a sleek, minimalist design with superior flexibility.
- Uniform, Shadow-Free Lighting: Innovative optical light distribution design delivers consistent, smooth illumination without dark spots.
- IP67 Protection Grade: Resistant to UV rays, salt spray, acid, and alkali corrosion—ideal for indoor and outdoor applications.
- Superior Flexibility: Highly bendable with a refined, stylish appearance, perfect for creative and compact installations.
- Long Lifespan & Reliability: Guaranteed for 3 years with a working lifespan exceeding 30,000 hours, providing long-term performance.
Technical Parameter
| Part NO. | SR-NEON-TV0606 |
|---|---|
| LED Type: | Top LED 2835, CRI>90,SDCM<5 |
| Voltage: | DC12V/24V |
| Driver Methord: | Constant Voltage |
| Power: | 6W/m |
| Lumen: | 235-400Lm |
| Colors available: | White(1700-6500K), red, blue, green, yellow, Orange |
| Beam angle: | 180 degree |
| Bending Direction: | Top band, Vertical Band |
| Material: | American Brand Dow-corning Silicone, UV Reistance, Corrosion Resistance |
| Cuttable Length: | 25mm |
| Max running Length: | 5m |
| Dimension: | 6*6mm (W*H) |
| Working temperature: | -25 – +60℃ |
| Cable Entry Option: | Front Cable Entry / Side Cable Entry / Bottom Cable Entry |
| Cable Option: | PVC 20AWG Cable / Silicone 20AWG Cable |
| End Caps Option | Integrated End Caps / Solder Free End Caps / Silicone Endcaps |
| Accessories: | Mounting Clips, Aluminum profiles, Curve Aluminum Profiles suspension installation |
| Working Life: | >50000 working hours |
| IP Rated: | IP67 Rated |
| Warranty | 3-5 years warranty |
Dimension
Video

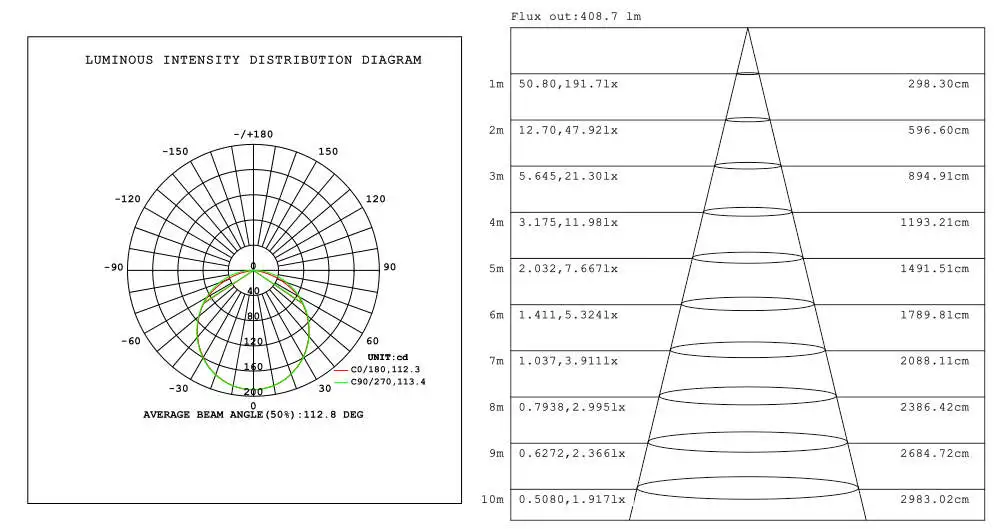

Test Report @ 4000K
