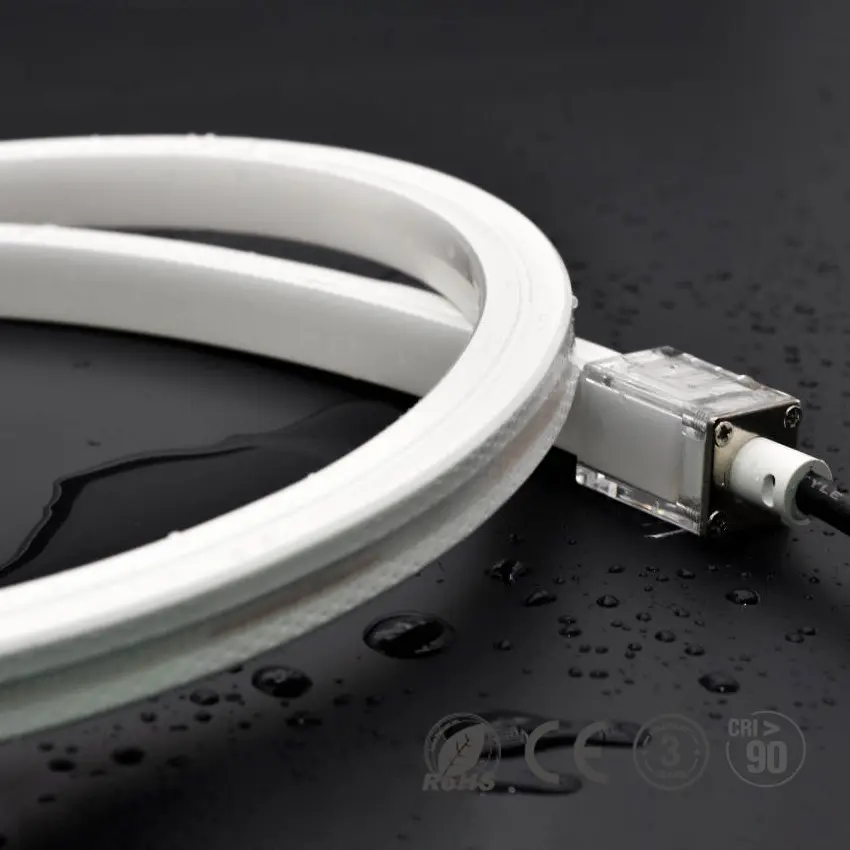

Top Band LED Neon Strip Light 1212
The Top Band LED Neon Strip is crafted from high-transparency, eco-friendly silicone material using an integrated extrusion molding process, ensuring superior durability and sleek aesthetics. Its unique optical light distribution design delivers uniform, shadow-free illumination with a soft glow.
Featuring an IP67 protection rating, it is highly resistant to salt solutions, acids, alkalis, and UV radiation, making it ideal for both indoor and outdoor lighting applications. With excellent flexibility and a simple yet stylish appearance, it perfectly combines decorative appeal with functionality.
Main Features
- High-Transparency Silicone Material: Eco-friendly, non-toxic silicone with excellent light transmittance.
- Uniform, Shadow-Free Illumination: Unique optical light distribution for a smooth and consistent lighting effect.
- IP67 Protection Rating: Waterproof, dustproof, and corrosion-resistant, suitable for diverse environments.
- Superior UV Resistance: Prevents yellowing and aging under UV exposure.
- Exceptional Flexibility: Highly bendable to accommodate complex installations and creative designs.
- Sleek & Stylish Design: Minimalist yet distinctive appearance that enhances any space.
- Long-Lasting Performance: Lifespan ≥50,000 hours with a 3-year warranty for guaranteed reliability.
- Applications: Indoor linear lighting and decorative accents, outdoor architectural outlines and bridge lighting, garden and landscape illumination, commercial displays and signage lighting, creative installations and artistic lighting designs.
Technical Parameter
| Part NO. | SR-NEON-TV1212 |
|---|---|
| LED Type: | Top LED 2835, CRI>90,SDCM<5 |
| Voltage: | DC12V/24V |
| Driver Method: | Constant Current / Constant Voltage |
| Power: | 5W/10W/15W |
| Lumen: | 420-950Lm |
| Colors available: | White, warm white, red, blue, green, yellow, Orange, Pink, CCT, RGB |
| Bending Direction: | Top Bend, Vertical Bend |
| Beam angle: | 180 degree |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 50mm |
| Cutting Mark: | Yes |
| Logo: | OEM |
| IP Rated: | IP67 Rated |
| Dimension: | 12*12 mm (W*H) |
| Max Running Length: | 5m for Constant Voltage Version; 13-17m for Constant Current Version |
| Working temperature: | -25 – +60℃ |
| Cable Option: | PVC 20AWG Cable / Silicone 20AWG Cable |
| Cable Entry Option: | Front Cable Entry / Side Cable Entry / Buttom Cable entry |
| End Caps Option: | Integrated End Caps / Solder Free End Caps / Silicone Endcaps |
| Accessories: | Mounting Clips, Aluminum profiles, Curve Aluminum Profiles suspension installation |
| Working Life: | >50000 working hours |
| Warranty | 3-5 years warranty |
Dimension

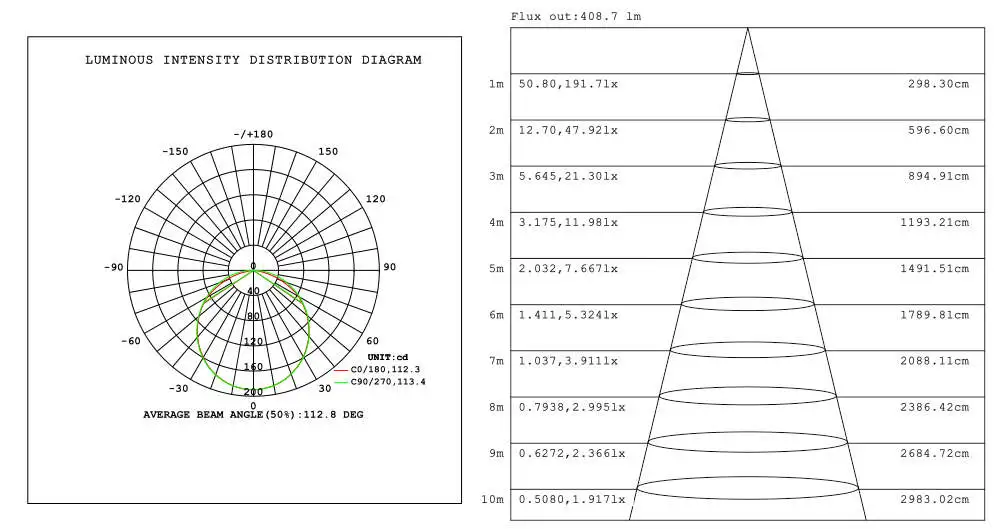

Test Report @ 4000K
