Side Bend LED Neon Light Strips 1220
Silicone led neon light strips with high light efficiency, side light IP67, silicone integrated extrusion molding process; DC24V, horizontal bending, forward out/side out/bottom out 3 ways of outlet; The bending diameter is 200mm, the cross-sectional size: 12mm*20mm/(W*H), IP67 waterproof grade; Yellowing resistance, UV resistance, salt and alkali resistance, high-temperature resistance, uniform luminescence, no light spots, can shape different shapes.
The unique plug design allows for quick and easy installation to meet the needs of different lengths, without the need for wire bonding and waterproofing, suitable for indoor and outdoor lighting projects
Main Features of 1220 Neon Light Strips
- Premium Silicone Construction: Made from Dow Chemical SILASTIC™ ET-7021 silicone rubber, ensuring high transparency, exceptional strength, and eco-friendly performance.
- Flexible Side Bend Design: Specially designed for side-bending applications, allowing smooth curves and creative designs in architectural and commercial lighting.
- Seamless Lighting Effect: Unique optical light distribution ensures a uniform lighting surface without shadows, delivering sleek, professional results.
- Robust Outdoor Protection: With an IP67 protection rating, it resists dust, water, corrosive gases, acids, alkalis, UV rays, and fire—perfect for challenging European climates.
- Durable & Long-Lasting: The integrated extrusion molding process enhances durability and flexibility, backed by a 5-year warranty and ≥50,000 hours lifespan.
- Modern & Elegant Aesthetics: Simple yet sophisticated appearance with a delicate finish, making it ideal for indoor and outdoor architectural accents, signage, and decorative lighting.
Technical Parameter
| Part NO. | SR-NEON-SH1220 |
|---|---|
| LED Type: | Top LED 2835, CRI>90, SDCM<3 |
| Voltage: | DC24V |
| Driver Method: | Constant Current / Constant Voltage |
| Power: | 5W/10W/15W |
| Lumen: | 300-900Lm / m |
| Colors available: | White(2000-6500K), red, blue, green, yellow, Orange, Pink, CCT, RGB, RGBW |
| Beam angle: | 120 degree |
| Bending Direction: | Side Bend, Horizontal Bend |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 50mm |
| Max running Length: | 5 meters for Constant Voltage; 27 meters for Constant Current, No Voltage Drop; |
| Dimension: | 12mm*20mm/(W*H) |
| Working temperature: | -25 – +60℃ |
| Cable Option: | PVC 20AWG Cable / Silicone 20AWG Cable |
| Cable Entry Option: | Front Cable Entry / Side Cable Entry / Bottom Cable Entry |
| End Caps Available | Integrated End Caps / Solder Free End Caps / Silicone Endcaps |
| Accessories: | Mounting Clips, Aluminum profiles, Curve Aluminum Profiles suspension installation |
| Cutting Mark: | Yes |
| Logo: | OEM |
| Working Life: | >50000 working hours |
| IP Rated: | IP67 Rated |
| Warranty | 5 years warranty for indoor ; 3 years warranty for outdoor use |
Dimension

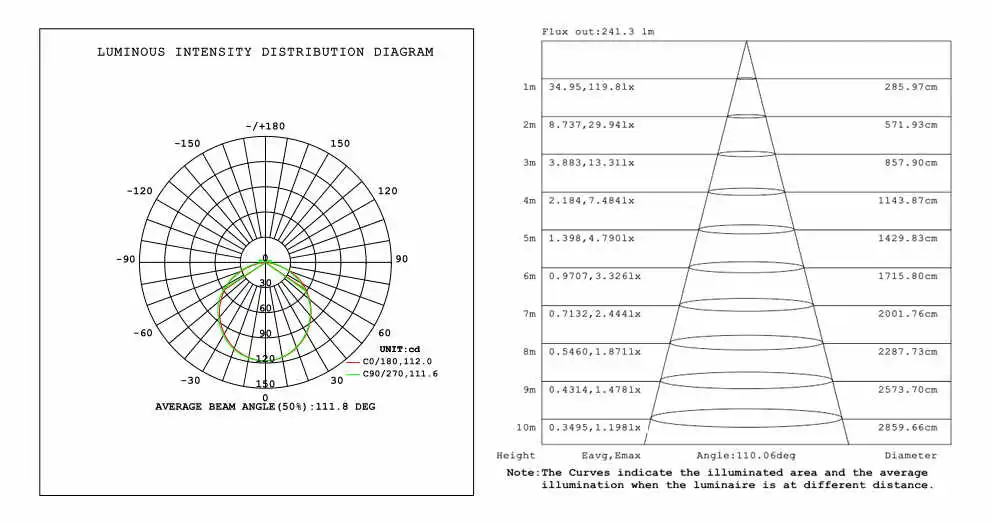

Test Report @ 4000K
