Side Bend LED Neon Strip Light 2020
The Side Bend LED Neon Strip Light 2020 is designed for creative lighting applications that require flexibility, durability, and exceptional visual effects. Made from Dow Chemical SILASTIC™ ET-7021 silicone rubber, this strip light offers superior transparency, high strength, and eco-friendly performance.
Its side-bend design allows for smooth curves, making it ideal for architectural contours, signage, and decorative lighting. With an IP67 protection rating, it resists dust, water, UV rays, acids, alkalis, and salt solutions, ensuring reliable operation both indoors and outdoors. The uniform lighting surface, free from shadows, delivers a sleek and professional finish.
Backed by a 5-year warranty and a ≥50,000-hour lifespan, the Neon Strip Light is the perfect lighting solution for projects requiring long-lasting performance and stylish aesthetics.

Main Features of Silicone Neon Strip Light
- High-Quality Silicone Material: Crafted from Dow Chemical SILASTIC™ ET-7021 silicone rubber, delivering exceptional transparency, durability, and eco-friendly performance.
- Seamless Extrusion Design: Features an integrated extrusion molding process for superior toughness, flexibility, and a refined finish.
- Uniform, Shadow-Free Lighting: Engineered with a unique optical light distribution structure for consistent, glare-free illumination without dark spots.
- IP67-Rated for Outdoor Durability: Fully protected against dust, water, UV rays, acids, alkalis, and salt solutions, ensuring reliable performance in demanding environments.
- Built to Last: Backed by a 5-year warranty and a lifespan of over 50,000 hours for long-term, worry-free use.
- Sleek & Minimalist Design: Elegant, minimalist aesthetics with a delicate finish that blends effortlessly into indoor and outdoor spaces.
Technical Parameter
| Part NO. | SR-NEON-SH2020 |
|---|---|
| LED Type: | Top LED 2835, CRI>90, SDCM<3 |
| Voltage: | DC24V |
| Driver Method: | Constant Current / Constant Voltage |
| Power: | 5W/10W/15W |
| Lumen: | 200-700Lm / m |
| Colors available: | White(2000-6500K), red, blue, green, yellow, Orange, Pink, CCT Tunable, RGB, RGBW |
| Beam angle: | 120 degree |
| Bending Direction: | Side Bend, Horizontal Bend |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 50mm |
| Max running Length: | 5 meters for Constant Voltage; 12-27 meters for Constant Current, No Voltage Drop; |
| Dimension: | 20mm*20mm/(W*H) |
| Working temperature: | -25 – +60℃ |
| Cable: | UL Listed PVC 20AWG Cable |
| Cable Entry: | Front Cable Entry |
| End Caps: | Silicone End caps |
| Accessories: | Mounting Clips, Aluminum profiles |
| Cutting Mark: | Yes |
| Logo: | OEM |
| Working Life: | >50000 working hours |
| IP Rated: | IP67 Rated |
| Warranty | 5 years warranty for indoor; 3 years warranty for outdoor use |
Dimension

Video

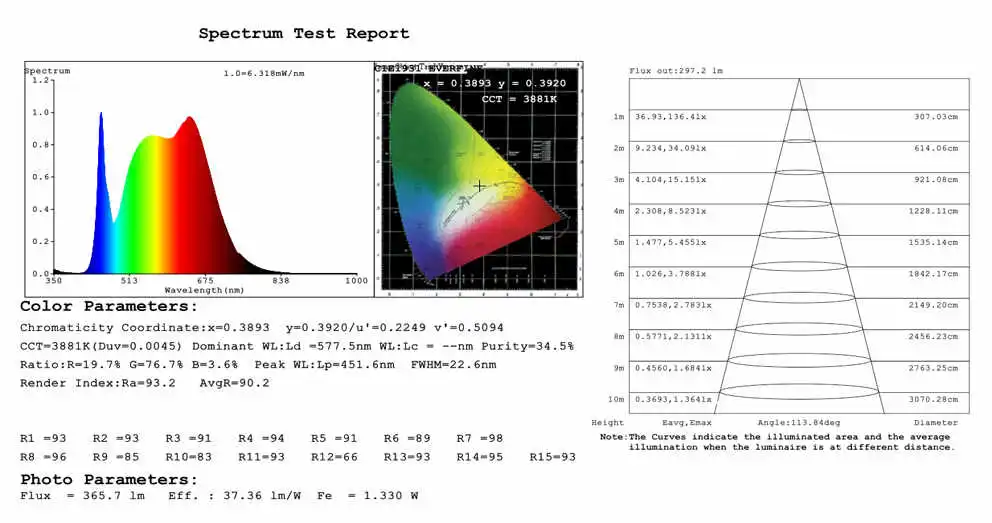

Test Report @ 4000K
