Side Bending LED Neon Lights
The hot-selling LED Neon Lights, integrated silicone extrusion molding process, ensures durability and a seamless design that enhances waterproof IP67; it runs on a low-voltage DC24V system, offering efficient power consumption and safety benefits. With a cross-sectional size of 16mm*15mm (width*height), it offers a slim and discreet profile, and provides even and consistent illumination without visible hot spots or glare, ensuring aesthetically pleasing lighting effects. The LED strips are suitable for a range of lighting applications.
Main Features of LED Neon Lights 1615
- Premium Silicone Material: Crafted from Dow Chemical’s SILASTIC™ ET-7021 silicone rubber, known for its high transparency, strength, and environmental protection.
- Uniform Light Distribution: Unique optical design ensures a smooth, shadow-free light surface with consistent brightness.
- IP67 Protection: Fully protected against dust, water, UV rays, and resistance to salt solutions, acids, and alkalis, making it perfect for outdoor and industrial applications.
- Superior Flexibility: Side-bending design allows for easy installation in creative and challenging spaces.
- Long Lifespan: With a working life of over 50,000 hours, this LED neon strip is designed for long-term reliability and minimal maintenance.
- Stylish & Durable: The simple, modern appearance and excellent toughness make it a versatile choice for both residential and commercial lighting needs.
- 5-Year Warranty: Supported by a 5-year warranty, ensuring Reliability with each installation.
Technical Parameter
| Part NO. | SR-NEON-SH1615X |
|---|---|
| LED Type: | Top LED 2835, CRI>90,SDCM<5 |
| Voltage: | DC24V |
| Driver Method: | Constant Current / Constant Voltage |
| Power: | 5w/10w/15W |
| Lumen: | 300-1080Lm / m |
| Colors available: | White(2000-6500K), red, blue, green, yellow, Pink, Orange, CCT,RGB, RGBW |
| Beam angle: | 180 degree |
| Bending Direction: | Side Bending, Horizontal Bending |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 50mm |
| IP Rated: | IP67 Rated |
| Dimension: | 16mm*15mm/(W*H) |
| Working temperature: | -25 – +60℃ |
| Cable: | UL Listed PVC 20AWG Cable / UL Listed Silicone 20AWG Cable / Waterproof Plugs with Cable |
| End Caps Option | Integrated End Caps / Solder Free End Caps / Silicone Endcaps |
| Cable Lead Option: | Front Cable Entry, Side Cable Entry, Bottom Cable Entry, End Cable Entry |
| Accessories: | Mounting Clips, Aluminum profiles, Curve Aluminum Profiles suspension installation |
| Working Life: | >50000 working hours |
| Warranty | 5 years warranty |
Dimension

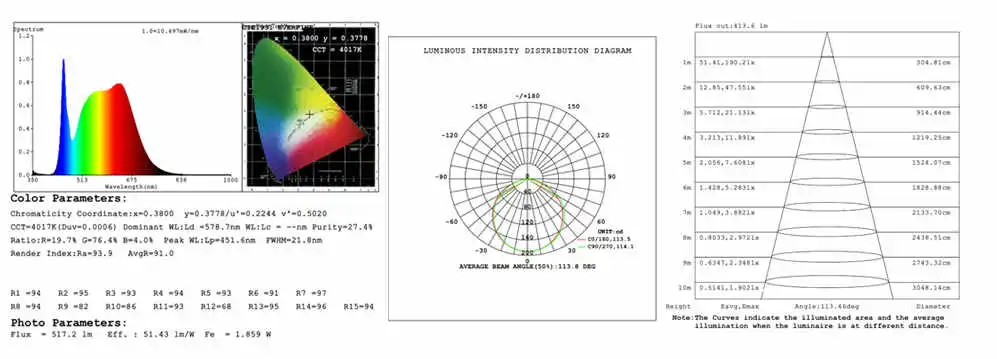

Test Reports of LED Neon Strip 1615 Side Bending
