Side Bend Silicone LED Neon Strip 1010
Silicone LED neon Light Strip 1010, side Bending IP67, silicone integrated extrusion molding process; DC24V, horizontal bending, 1 way of outlet; The bending diameter is 100mm, the cross-sectional size: 10mm*10mm/(W*H), IP67 waterproof level;
High light transmittance, environmentally friendly grade silicone material, Yellowing resistance, UV resistance, salt and alkali resistance, high temperature resistance, uniform luminescence, no light spots, can shape different shapes, suitable for indoor and outdoor lighting Projects.
Features
- Premium Silicone Material – Made with Dow Chemical SILASTIC™ ET-7021 for exceptional transparency, strength, and durability.
- Seamless Light Distribution – Innovative optical design ensures a uniform glow with no shadows, perfect for signage and decorative lighting.
- Superior Weather Resistance – IP67-rated, resistant to salt, acids, alkalis, and UV exposure, making it ideal for indoor and outdoor use.
- Durable & Long-Lasting – With a 5-year warranty and a working lifespan of ≥50,000 hours, ensuring long-term performance and reliability.
- Eco-Friendly & Safe – Made from environmentally friendly silicone, utilizing an integrated extrusion molding process for high-quality, consistent production.
- Sleek & Flexible Design – Excellent toughness with a modern, minimalist appearance, allowing for easy installation in various applications.
Technical Parameter
| Part NO. | SR-NEON-SH1010 |
|---|---|
| LED Type: | Top LED 2835, CRI>90,SDCM<5 |
| Voltage: | DC24V |
| Driver Method: | Constant Voltage |
| Power: | 5W/10W |
| Lumen: | 300-700Lm / m |
| Colors available: | White(2000-6500K), red, blue, green, yellow, Orange, Pink |
| Beam angle: | 180 degree |
| Bending Direction: | Side Bend, Horizontal Bend |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cuttable Length: | 37.5mm |
| Max running Length: | 5 meters |
| Dimension: | 10mm*10mm/(W*H) |
| Working temperature: | -25 – +60℃ |
| Cable : | UL Listed PVC 20AWG Cable |
| Cable Entry Option: | Front Cable Entry |
| End Caps Available | Silicone Endcaps |
| Accessories: | Mounting Clips, Aluminum profiles, Curve Aluminum Profiles suspension installation |
| Working Life: | >50000 working hours |
| IP Rated: | IP67 Rated |
| Warranty | 5 years warranty for indoor use; 3 years warranty for outdoor use; |
Dimension
Video

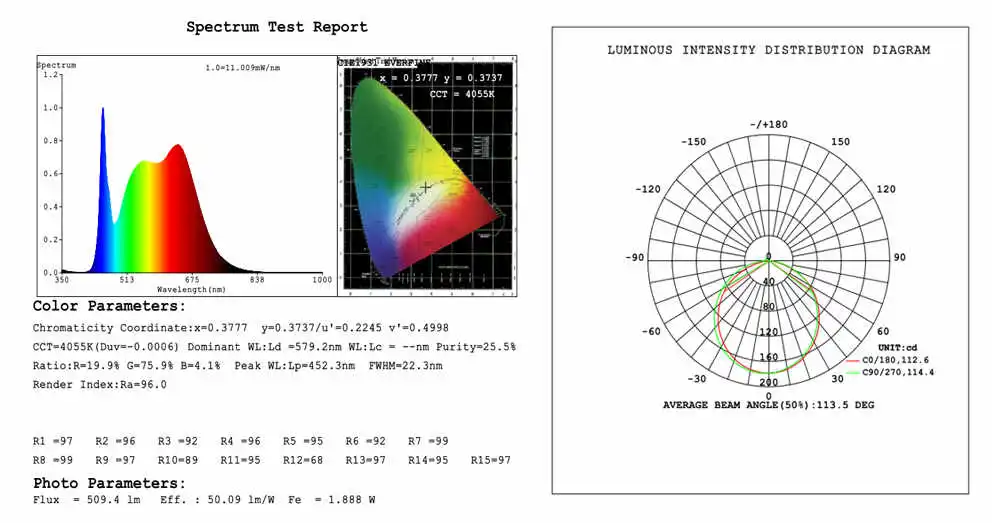

Test Report @4000K
