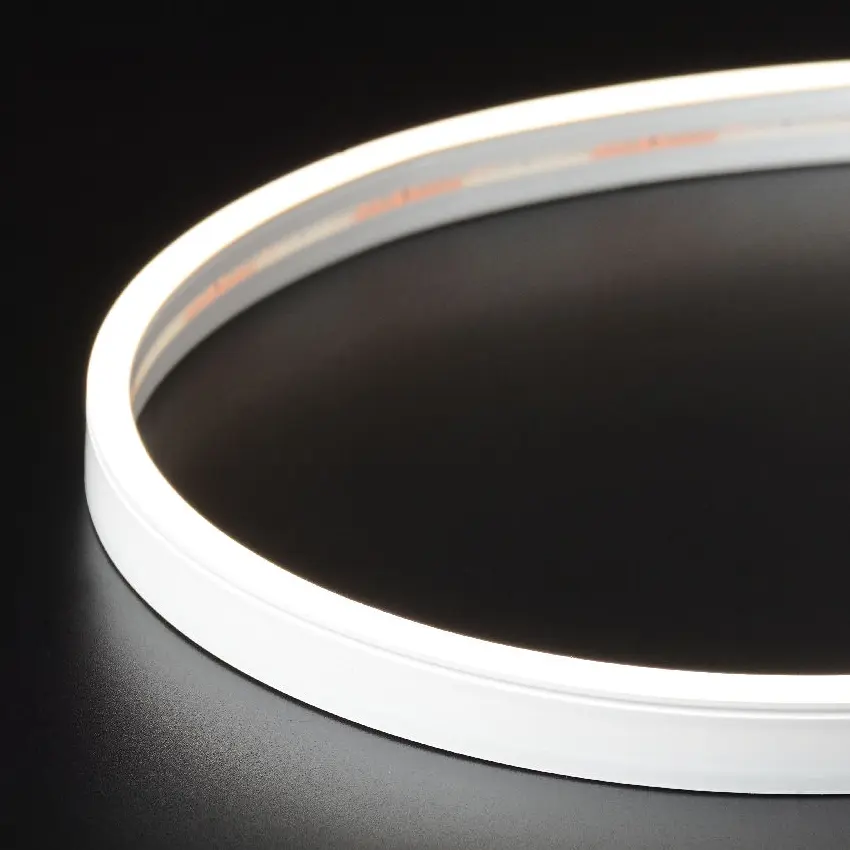

Side Bend Neon Rope Lights 0408

The Silicone Neon Rope Lights feature side-bend illumination with an IP67 waterproof rating, crafted through a seamless one-piece silicone extrusion process. Powered by DC24V with a single wiring output, these neon lights offer a bending diameter of 30mm and a compact cross-sectional size of 4mm x 8mm (W*H). Engineered for durability, they resist yellowing, UV rays, salt, alkali, and high temperatures, ensuring uniform, glare-free illumination. The flexible design allows for versatile shaping, ideal for both indoor and outdoor applications. Additionally, the innovative end cap design enables quick, solder-free installation across various lengths without extra waterproofing treatment.

Certification

Main Features of LED Neon rope lights

  • Miniature Design: Compact 4mm x 8mm profile, ideal for detailed applications and tight spaces.
  • Integrated Extrusion Molding: One-piece extrusion process for a sleek look, no visible seams, and improved waterproof performance.
  • Uniform & Shadow-Free Illumination: Unique optical light distribution ensures even brightness across the entire surface.
  • Eco-Friendly Silicone: Made from environmental-grade silicone, offering high transparency and durability without compromising on sustainability.
  • IP67 Weather Resistance: Resistant to UV rays, yellowing, salt, alkalis, and high temperatures, ensuring long-lasting performance in challenging environments.
  • Flexible & Versatile: Exceptional toughness and bendability, allowing for creative shaping and customized installations.
  • Long Lifespan & Warranty: Delivers ≥50,000 hours of consistent illumination, backed by a 5-year warranty for worry-free use.

Technical Parameter

Part NO. SR-NEON-SH0408
LED Type: Top LED 2835, CRI>90,SDCM<5
Voltage: DC24V
Driver Method:  Constant Voltage
Power: 6W
Lumen: 200-300Lm / m
Colors available: White(2000-6500K), red, blue, green, yellow, Orange
Beam angle: 180 degree
Bending Direction: Side Bend, Horizontal Bend
Material: American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance
Cuttable Length: 25mm
Dimension: 4mm*8mm/(W*H)
Max running Length: 5m
Working temperature: -25 – +60℃
Cable: UL Listed PVC 20AWG Cable
Cable Entry Option: Front Cable Entry / Side Cable Entry / Bottom Cable Entry
End Caps Option Integrated End Caps / Silicone Endcaps
Accessories: Mounting Clips, Aluminum profiles, Curve Aluminum Profiles, suspension installation
Working Life: >50000 working hours
Cutting Mark: Yes
Logo: OEM
IP Rated: IP67 Rated
Warranty 3-5 years warranty

Dimension

size

Video

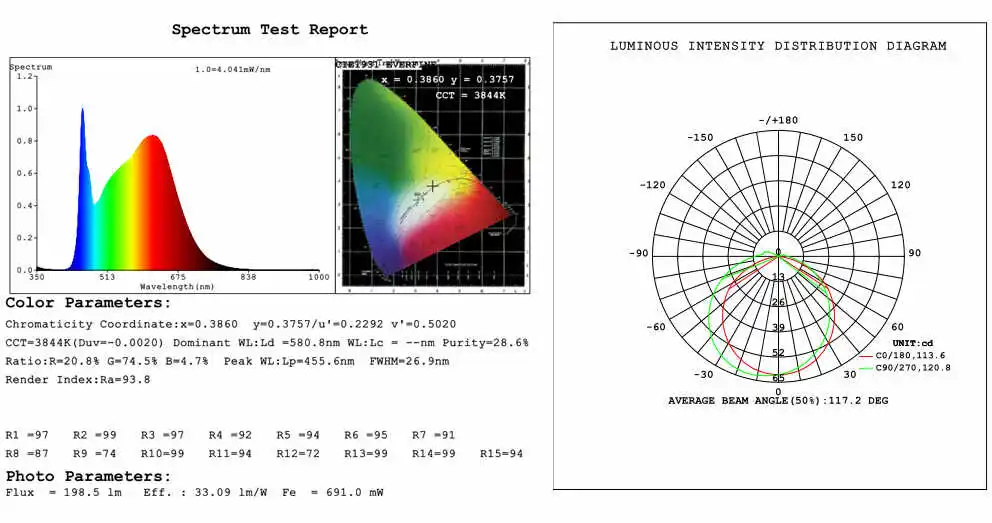

Test Report @ 4000k

Test report
