Main Features
- It is made of Dow Chemical SILASTIC™ ET-7021 silicone rubber, which provides high transparency and high strength;
- Environmental protection grade silicone material,integrated extrusion molding process;
- Unique optical light distribution structure design, uniform lighting surface and no shadow;
- IP67 protection level, salt solution resistance, acids & alkalis, and UV resistance;
- Excellent toughness, simple and stylish appearance, delicate and unique;
- 5 years warranty, working life ≥50000 hours.
Technical Parameter
| Part NO. | SR-NEON-TV1010X |
|---|---|
| LED Type: | Top LED 2835, CRI>90, SDCM<3 |
| Voltage: | DC12V/24V |
| Driver Method: | Constant Current / Constant Voltage |
| Power: | 5W/10W/15W |
| Lumen: | 350-810Lm |
| Colors available: | White, warm white, red, blue, green, yellow, Pink, Orange |
| Beam angle: | 180 degree |
| Bending Direction: | Top Bending, Vertical Bending |
| Material: | American Brand Dow-corning Silicone, UV Resistance, Corrosion Resistance |
| Cable Entry: | Front Cable Entry / Side Cable Entry / Bottom Cable Entry |
| Cable: | UL Listed PVC 20AWG Cable / Waterproof male and female plug |
| End Caps Option: | Integrated End Caps / Solder-Free End Caps / Silicone End caps |
| Accessories: | Mounting Clips, Aluminum profiles, Plastic Profiles |
| Cuttable Length: | 35.7mm |
| Max Length: | Constant Voltage- Max 5m; Constant Current- Max 13-19m; |
| IP Rated: | IP67 Rated |
| Dimension: | 10*10 mm (W*H) |
| Working temperature: | -25 – +60℃ |
| Working Life: | >50000 working hours |
| Warranty | 5 years warranty |
Dimension

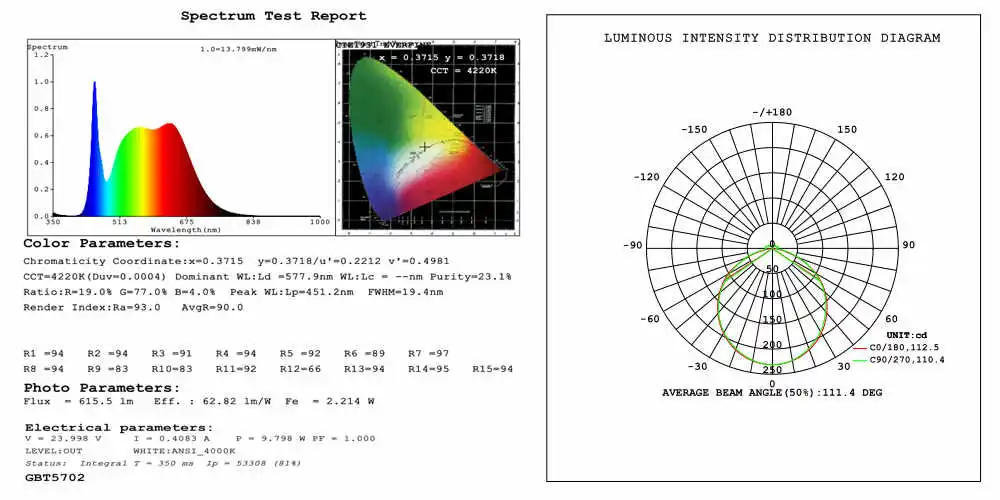

Test Report
