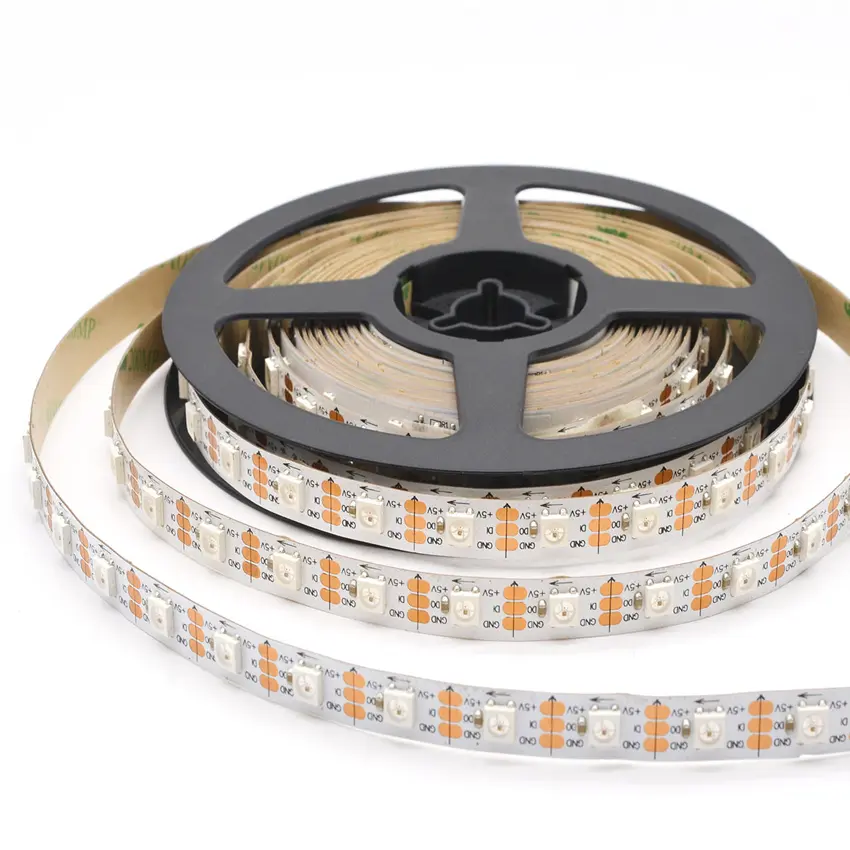

Pixel Led Strip SK6812
The Individually Addressable Pixel LED Strip combines advanced technology with durable construction, offering per-LED control, excellent heat dissipation, and flexible customization. Ideal for creating professional-grade lighting effects like color gradients, chases, pulsating patterns, and animations. in architectural, decorative, and commercial projects.
Main Features of SK6812 Addressable Pixel LED Strip
- Built-in SK6812 IC: Each LED operates independently, enabling precise color control for complex lighting effects.
- Advanced FPC Design: Crafted with 3-ounce double-sided copper FPC for excellent heat management and durability.
- Premium 20AWG Cable: Ensures stable power transmission for enhanced reliability in long-term use.
- Cuttable for Custom Lengths: Small segments allow tailored installations to fit specific project needs.
- Dynamic Lighting Effects: Program gradients, chases, pulsating patterns, and smooth animations for captivating displays.
- High-Precision SPI Control: Ensures smooth programming and synchronization of advanced lighting effects.
- Flexible Configuration: Adaptable to curved or intricate surfaces for creative and professional designs.
- Versatile 5m Rolls: Packaged for convenient handling and installation in diverse applications.
- Wide Range of Uses: Perfect for architectural highlights, signage, event decor, and entertainment lighting.
Technical Parameter
| Part NO | SR-SPI-60RGBD-5V | SR-SPI-60RGBWD-5V |
|---|---|---|
| LED Type: | 5050 RGB LED | 5050 RGBW LED |
| LED Qty/m: | 60leds/m | 60leds/m |
| Voltage: | DC5V | DC5V |
| Driver Method | Constant Voltage | Constant Voltage |
| Signal Protocol | SPI | SPI |
| Max Power: | 10.6W | 12W |
| PCB Width: | 10mm | 10mm |
| Pixel Segments/m: | 60 pixels | 60 pixels |
| Colors: | Full Color | Full Color |
| IC Type | SK6812 | SK6812 |
| Cut Unit: | 16.66mm | 16.66mm |
| Connection Wire: | 20AWG | 20AWG |
| Working Temperature: | -25° C –+45° C | -25° C –+45° C |
| Working Hours: | 50000 hours | 50000 hours |
| IP Rated: | IP20/IP54/IP65/IP67 / IP68 | IP20/IP54/IP65/IP67 / IP68 |
| Warranty: | 3 years warranty | 3 years warranty |
Dimension

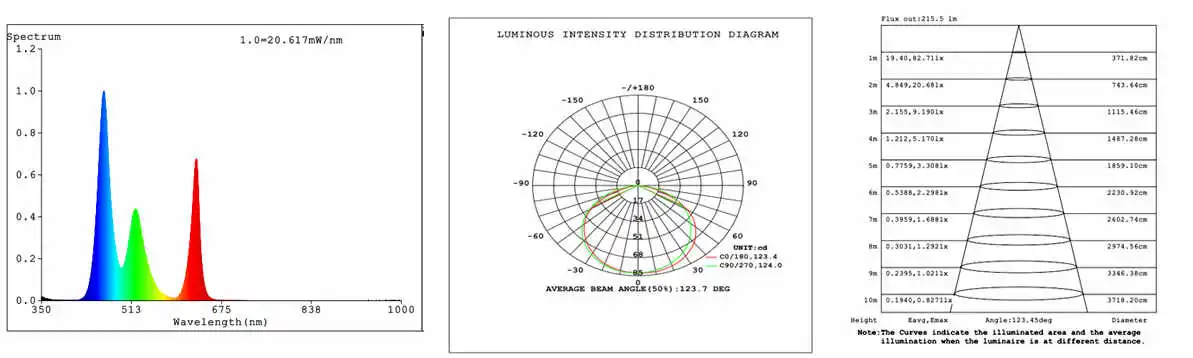

Test Report of SK6812 IC LED Strip
