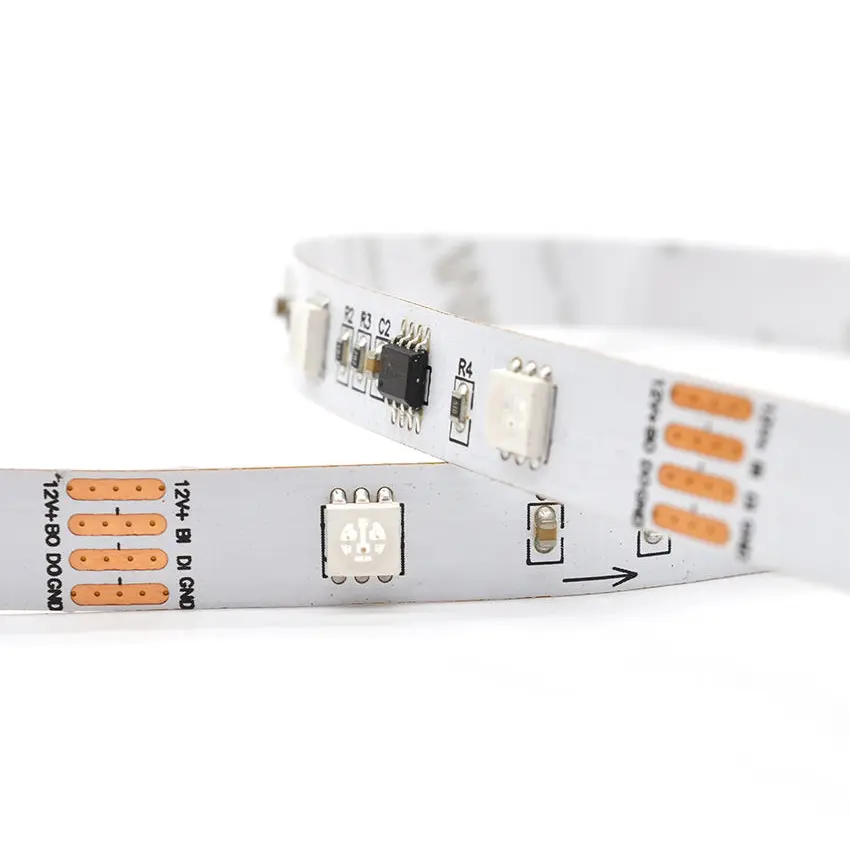

WS2811 LED Strip Lights
The Addressable LED Strip integrated with 60 LEDs/m Top RGB LED and WS2811 IC, it provides precise control over dynamic lighting effects, supported by high-quality construction using 3-ounce double-sided copper FPC and 20AWG cable. Ideal for professional, customizable visual displays, it ensures durability, flexibility, and vivid color-changing effects for any lighting project.
Main Features of our Addressable LED Strips
- WS2811 IC Technology: Enables precise control of each LED for vibrant, dynamic effects.
- Customizable Length: Small cuttable segments allow for precise adjustments to fit any installation need.
- Dynamic Lighting Effects: Easily create color-changing effects, gradients, chases, pulsating patterns, and animations.
- SPI Control Protocol: This protocol is compatible with various SPI controllers for seamless programming and synchronization.
- High Brightness LEDs: Delivers vivid, eye-catching visuals ideal for professional lighting displays.
- Durable 3-ounce Double-Sided Copper FPC: Ensures excellent heat dissipation and long-lasting performance.
- High-Quality 20AWG Cable: Provides reliable power supply and ensures durability for extended use.
- Flexible Design: Perfect for curved surfaces and intricate installations, enhancing design versatility.
- Standard 5m Rolls: Packaged for easy installation across small and large-scale projects.
- Wide Applications: Ideal for stage lighting, architectural designs, signage, and immersive visual displays.
Technical Parameter
| Part NO | SR-SPI-60RGBD-12V | SR-SPI-60RGBD-24V |
|---|---|---|
| LED Type: | 5050 RGB LED | 5050 RGB LED |
| LED Qty/m: | 60leds/m | 60leds/m |
| Voltage: | DC12V | DC24V |
| Driver Method | Constant Voltage | Constant Voltage |
| Signal Method | SPI | SPI |
| Power: | 14W | 14W |
| PCB Width: | 10mm | 10mm |
| Pixel Segments: | 20 pixels/m | 10 pixels/m |
| Colors: | Full Color | Full Color |
| IC Type available: | UCS1903H/WS2811/SM16703 | UCS1903H/WS2811/SM16703 |
| Cut Unit: | 50mm | 100mm |
| Connection Wire: | 20AWG | 20AWG |
| Working Temperature: | -25° C –+45° C | -25° C — +45° C |
| IP Rated: | IP20/IP54/IP65/IP67 | IP20/IP54/IP65/IP67 |
| Warranty: | 3 years warranty | 3 years warranty |
Dimension

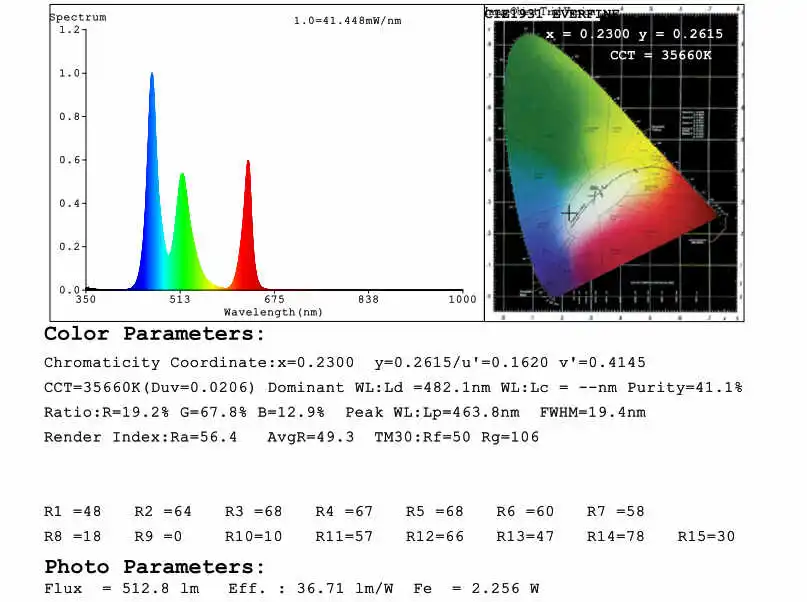

Test Report of WS2811 LED Strip
