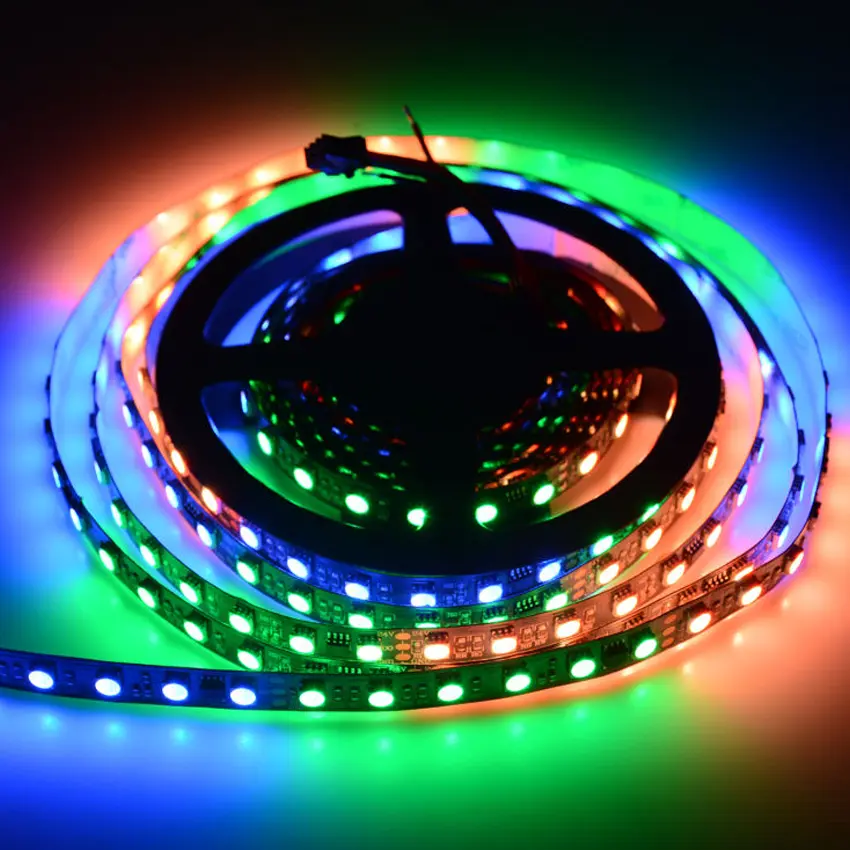

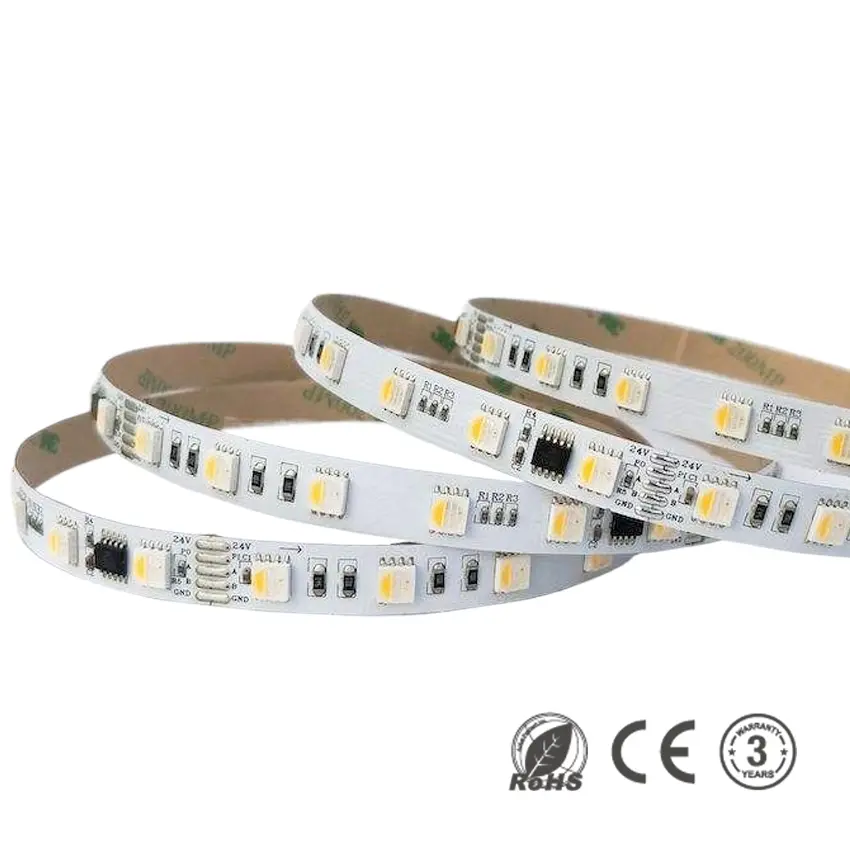

Pixel RGBW LED Tape Strip
The Pixel RGBW LED Tape Strip seamlessly integrates red, green, blue, and white LEDs, offering a broad spectrum of vibrant colors along with the versatility of pure white light. Available in both 12V and 24V versions, each IC addressable at every 3 or 6 LEDs, this LED strip enables complex animations, color transitions, and dynamic lighting effects that can be synchronized for an engaging display.
Ideal for both commercial and residential lighting, the addressable RGBW LED Tape is perfect for a wide range of applications including architectural lighting, signage, retail displays, event lighting, and home decor. This strip offers the perfect combination of creative versatility and functional reliability, bringing your lighting projects to life with stunning visual effects.

Main Features
- RGBW Color Spectrum: Combines vibrant RGB colors with pure white light for dynamic color-changing effects and functional white lighting.
- Addressable IC Control: Each 3 or 6 LEDs is individually addressable for complex animations, patterns, and gradients.
- 12V/24V Options: Choose between 12V or 24V configurations to suit various project requirements.
- Customizable Lighting Effects: Create dynamic visual effects such as color transitions, pulsating patterns, and gradients.
- Seamless Animation: Ideal for smooth animations and synchronized lighting across long installations.
- Versatile Applications: Perfect for architectural lighting, signage, event installations, home decor, themed environments, and retail displays.
- Pure White Light: Incorporates a white LED for high-quality illumination, enhancing both aesthetics and functionality.
- Easy Installation: Flexible and simple to install in a variety of settings with a wide range of lengths and options.
Technical Parameter
| Part NO | SR-SPI-60RGBWD-12V | SR-SPI-60RGBWD-24V |
|---|---|---|
| LED Type: | 5050 RGBW LED 4-in-1 | 5050 RGBW LED 4-in-1 |
| LED Qty/m: | 60leds/m | 60leds/m |
| Voltage: | DC12V | DC24V |
| Driver Method | Constant Voltage | Constant Voltage |
| Signal Method | SPI | SPI |
| Power: | 18W | 18W |
| PCB Width: | 10mm | 10mm |
| Pixel Segments: | 20 pixels/m | 10 pixels/m |
| Colors: | Full Color | Full Color |
| IC Type available: | UCS2904B | UCS2904B |
| Cut Unit: | 50mm | 100mm |
| Connection Wire: | 20AWG | 20AWG |
| Working Temperature: | -10° C –+45° C | -10° C — +45° C |
| IP Rated: | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 |
| Warranty: | 3 years warranty | 3 years warranty |
