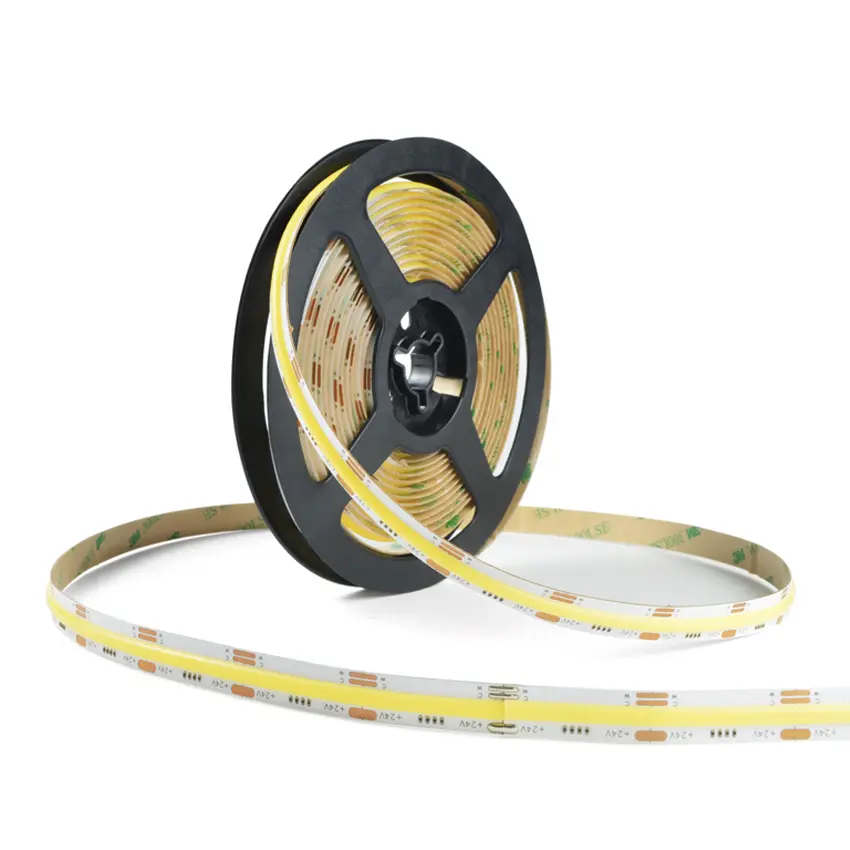

10m LED Strip COB

The Super Long 10m LED Strip COB is designed as a constant current version, capable of running 10–15 meters with a single-end 24V power supply. Thanks to its constant current design, it eliminates voltage drop, maintaining consistent brightness and performance throughout its length. The SDCM <3 ensures uniform color output, while a high CRI of 90 guarantees accurate and vibrant color representation. With a 180° wide viewing angle, it delivers smooth, dot-free illumination, making it ideal for linear lighting and decorative projects.

certification

Main Features

  • Constant Current Design: Ensures stable performance and consistent brightness across long runs.
  • Super Long Length: Operates up to 10–15 meters from a single-end power supply, reducing wiring complexity.
  • 24V Rated: Provides a stable power supply for reliable, flicker-free operation.
  • Color Consistency (SDCM <3): Uniform color output with minimal deviation, ideal for high-end lighting projects.
  • No Voltage Drop: Maintains consistent brightness from start to end, perfect for continuous installations.
  • 180° Viewing Angle: Offers wide, even light distribution without dark spots.
  • High CRI (CRI90): Reproduces vibrant, true-to-life colors, suitable for applications requiring high color accuracy.
  • Versatile Applications: Perfect for linear lighting, architectural accents, and decorative projects.

Technical Parameter

Part NO SR-COB-560
LED Type: Top COB LED
LED Qty/m: 560leds/m
CRI: >90
SDCM: <5
Voltage: DC24V
Driver Methord: Constant Current
Power: 4.8W/9W
PCB Width: 10mm
Lumen@3000K: 389-770Lm/m
Colors: WW/CW/NW
View angle: 180°
Cut Unit: 50mm
Max running Length: 15m for 4.8Watt; 10m for 9Watt
Connection Wire: 20AWG
Working Temperature: -10° C –+45° C
IP Rated: IP20/IP65/IP67/IP68
Warranty: 5 years warranty

Dimension

sizes

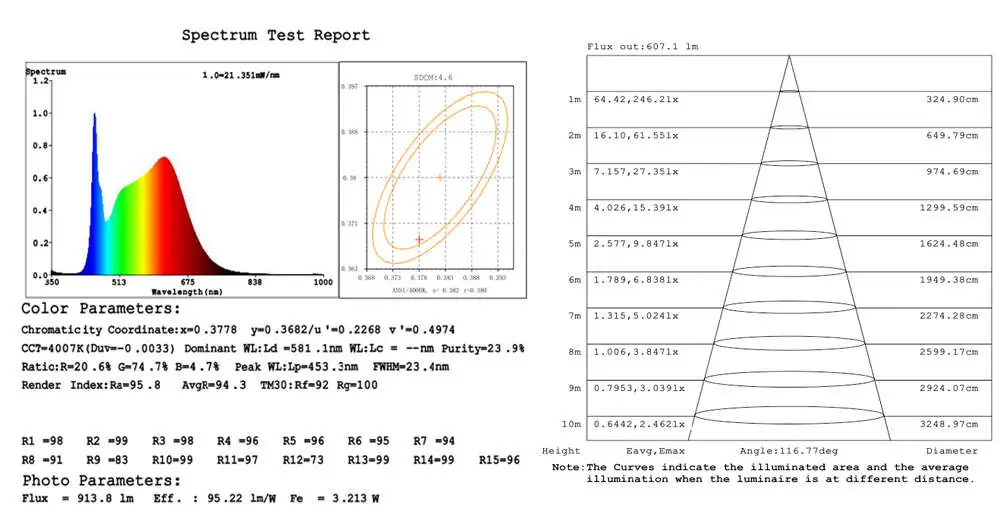

Test Report

test report
