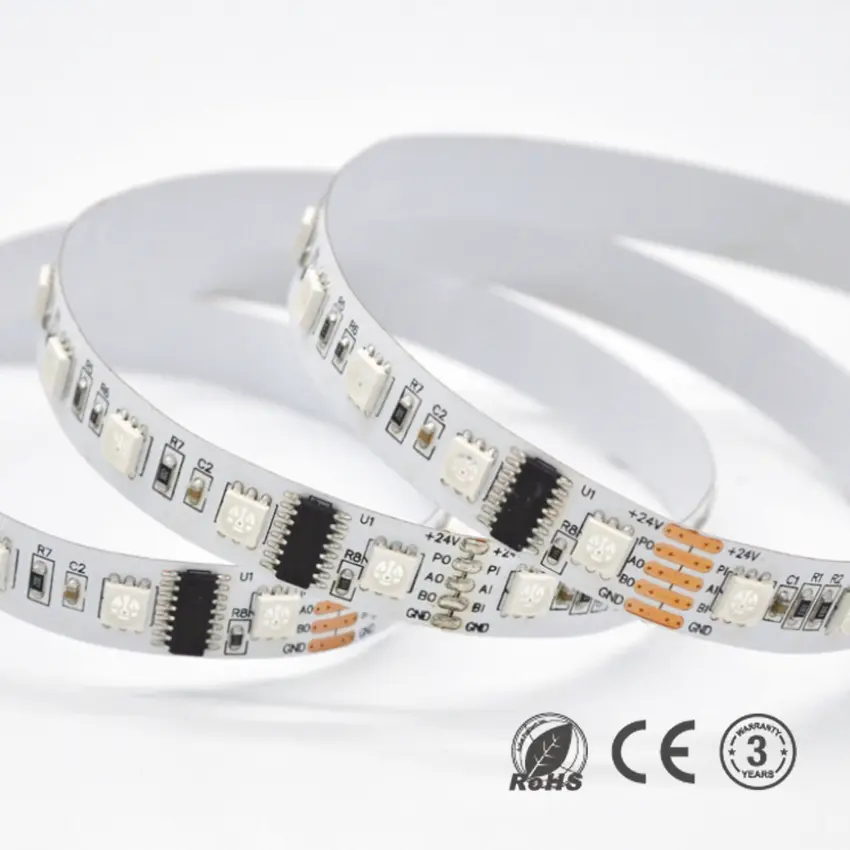

DMX LED Strip Lights
The DMX LED Strip offers dynamic lighting control for your creative projects. Powered by the UCS512C4 IC, this strip enables impressive color-changing effects, such as gradients, chases, pulsing patterns, and animations. Whether you are designing a theatrical installation, event lighting, or architectural lighting, the DMX LED Strip light provides precise control over every aspect of the display.
Featuring a small cuttable length, this strip allows for customizable configurations, making it easy to adapt to any space. It is perfect for users who require flexibility in field installations and need a lighting solution as dynamic as their vision.

Main Features
- UCS512C4 IC Control: Enables precise DMX control, ideal for creating sophisticated color effects and animations.
- Customizable Color Effects: Easily program color-changing gradients, chases, pulsating patterns, and more for captivating visual displays.
- Flexible and Cuttable: The small cuttable length allows for precise installation in various lengths and configurations.
- Perfect for Creative Projects: Ideal for use in theatrical lighting, event spaces, signage, and architectural installations.
- Easy Integration: Works seamlessly with DMX control systems, making it simple to incorporate into existing setups.
Technical Parameter
| Part NO | SR-DMX-60RGBD | SR-DMX-60RGBWD |
|---|---|---|
| LED Type: | 5050 RGB LED | 5050 RGBW LED 4-in-1 |
| LED Qty/m: | 60leds/m | 60leds/m |
| Voltage: | DC24V | DC24V |
| Driver Method | Constant Voltage | Constant Voltage |
| Signal Method | DMX512 | DMX512 |
| Power: | 14W | 18.5W |
| PCB Width: | 12mm | 12mm |
| Pixel Segments: | 10 pixels/m | 10 pixels/m |
| Colors: | Full Color | Full Color |
| IC Type available: | UCS512C4/SM18512PK | UCS512C4/SM18512PK |
| Cut Unit: | 100mm | 100mm |
| Connection Wire: | 20AWG | 20AWG |
| Working Temperature: | -10° C –+45° C | -10° C — +45° C |
| IP Rated: | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 |
| Warranty: | 3 years warranty | 3 years warranty |
Dimension

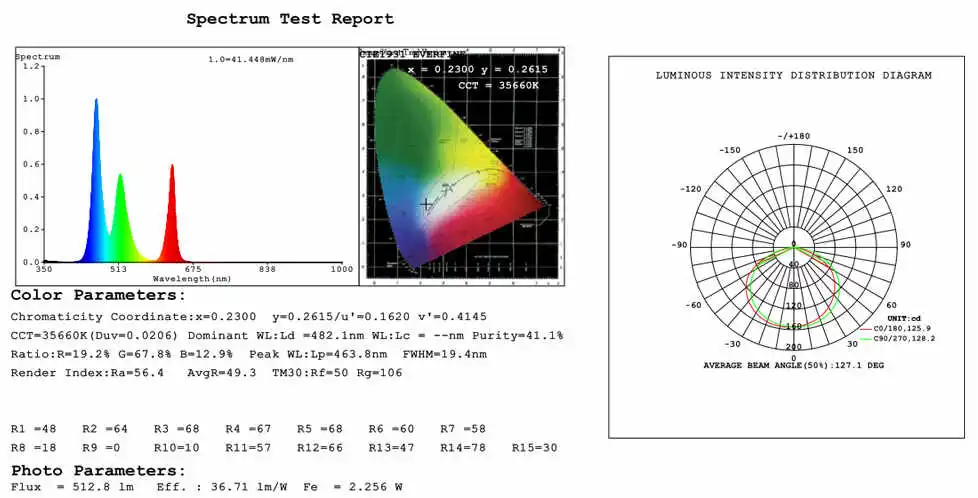

Test Report
