5-in-1 RGBWW LED Strip Lights
The 5-in-1 RGBWW LED Strip is the ultimate lighting solution, combining vibrant RGB colors with high CRI>90 white and warm white for exceptional color accuracy and uniformity (SDCM<3). Designed with high-lumen LEDs and a pure copper PCB, it ensures outstanding brightness and heat management. Perfect for architectural RGBWW lighting, retail displays, events, and ambient decor, this LED Light strip offers programmable dynamic effects to elevate any space.
Main Features of RGBWW LED Strips
- 5-in-1 RGBWW Technology: Combines RGB, pure white, and warm white for seamless, multi-functional lighting solutions.
- High-Quality LEDs: Equipped with top-grade high-lumen LEDs to deliver bright and vivid illumination.
- Superior Color Consistency: SDCM<3 ensures uniform white and RGB illumination without visible variations.
- Enhanced Lighting Uniformity: The latest 5-in-1 design ensures smoother transitions and uniform brightness across the strip.
- Premium PCB Material: Double-sided 3-ounce pure copper PCB provides superior heat dissipation, extending the strip’s lifespan.
- Dynamic Programming: Compatible with RGBWW remote controllers, enabling customized flashing, fading, and dynamic lighting effects.
- Wide Compatibility: Supports various controllers and amplifiers for flexible installation and operation.
- Easy Customization: Flexible, bendable design allows cutting and shaping for tailored lighting applications.
- Standard 5m Rolls: Designed for convenient installation in residential, commercial, and creative projects.
Techinical Parameter
| Part NO | SR-NP-60RGBWW | SR-NP-84RGBWW | SR-NP-96RGBWW |
|---|---|---|---|
| LED Type: | 5050 RGBW LED 5-in-1 | 5050 RGBW LED 5-in-1 | 5050 RGBW LED 5-in-1 |
| LED Qty/m: | 60leds/m | 84leds/m | 96leds/m |
| White CRI: | >90 | >90 | >90 |
| SDCM: | <3 | <3 | <3 |
| Voltage: | DC24V | DC24V | DC24V |
| Power: | 19.2W | 19.2W | 19.2W |
| PCB Width: | 12mm | 12mm | 12mm |
| Lumen: | 1180Lm/m | 1354Lm/m | 1350Lm/m |
| Colors: | RGB+2200-2700k+6500K | RGB+2200-2700k+6500K | RGB+2200-2700k+6500K |
| View angle: | 120° | 120° | 120° |
| Cut Unit: | 100mm | 83.5mm | 62.5mm |
| Connection Wire: | 22AWG | 22AWG | 22AWG |
| Max Run Length: | 5m/roll | 5m/roll | 5m/roll |
| Working Temperature: | -25° C –+45° C | -25° C — +45° C | -25° C – +45° C |
| Working Hours: | 50000 hours | 50000 hours | 50000 hours |
| IP Rated: | IP20/IP54/IP65/IP67 | IP20/IP54/IP65/IP67 | IP20/IP54/IP65/IP67 |
| Warranty: | 5 years warranty | 5 years warranty | 5years warranty |

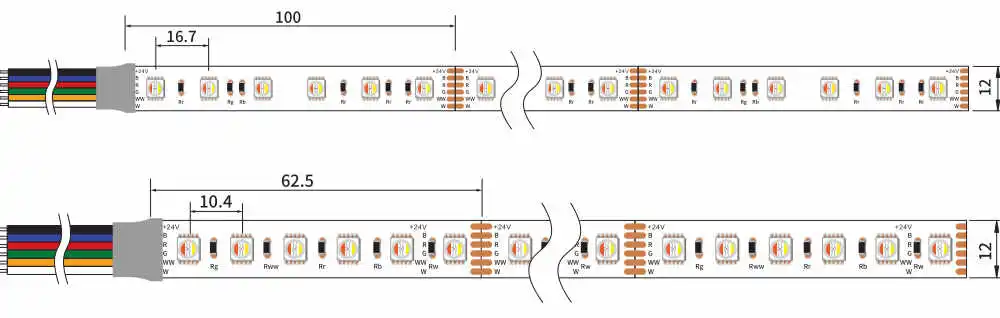

Dimension of RGBWW Strip Lights
