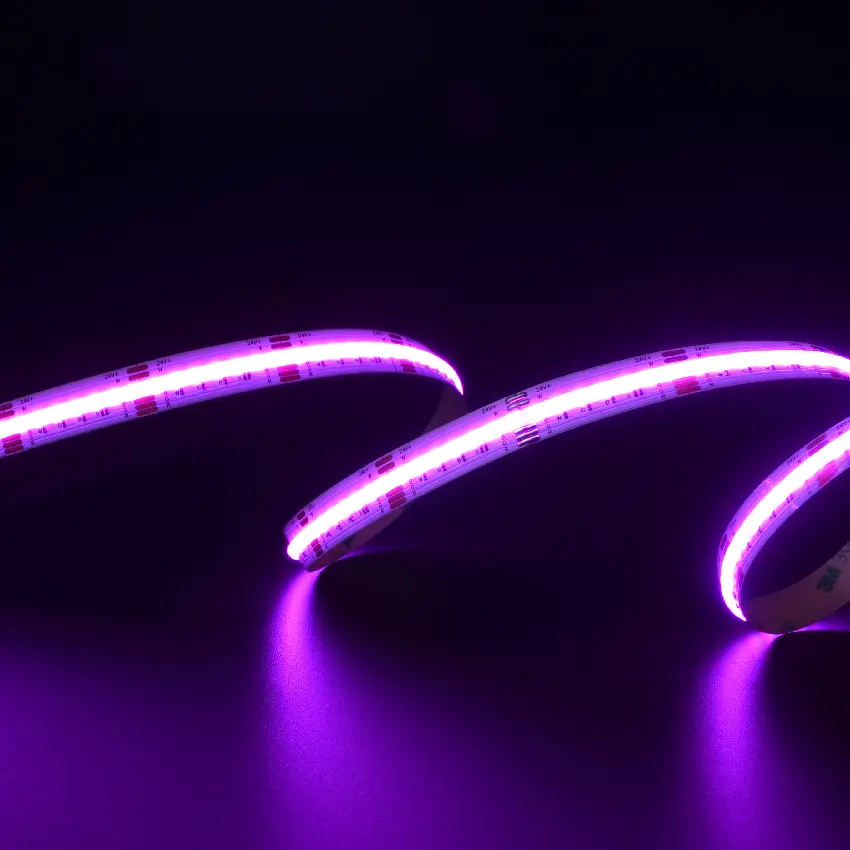

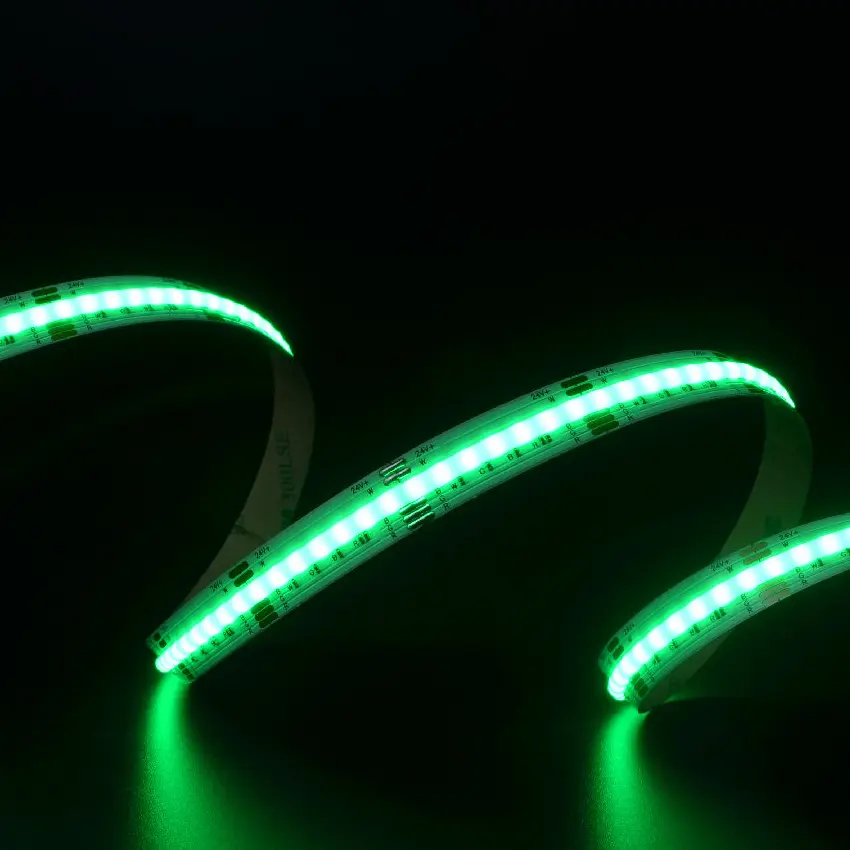

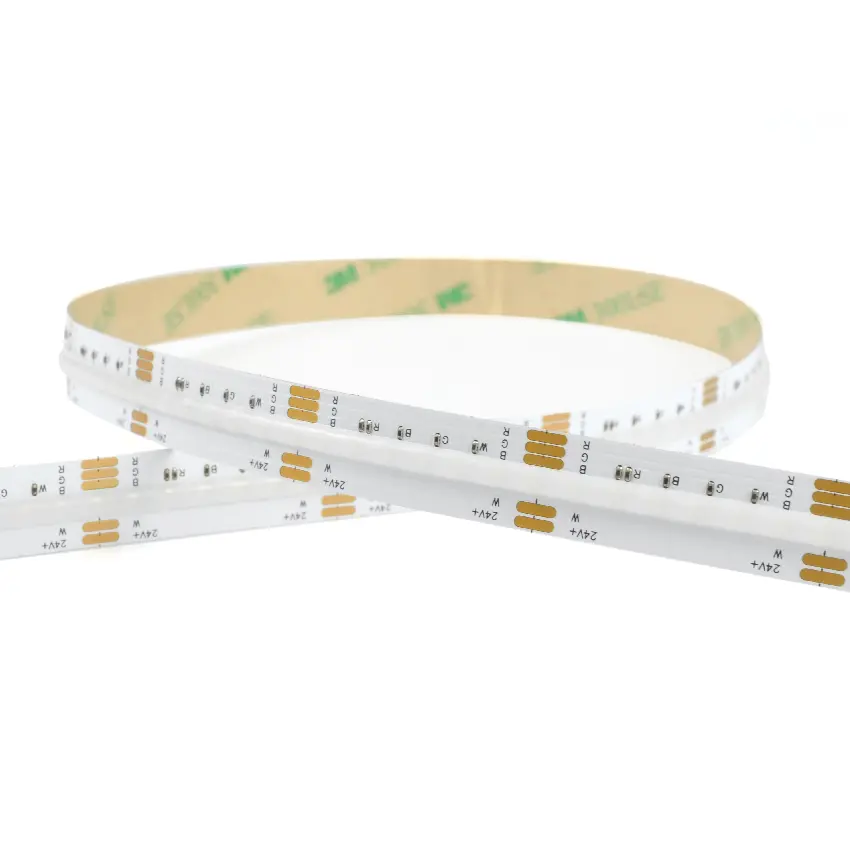

COB RGBW LED Strip Lights
COB RGBW LED Strip Lights merge advanced Chip-on-Board (COB) technology with RGBW (Red, Green, Blue, and White) color control to deliver seamless, dot-free illumination with exceptional brightness. Unlike traditional LED strips, COB offers continuous, uniform lighting with a soft, diffused glow—perfect for upscale, modern lighting effects.
Engineered for residential, commercial, and decorative applications, this RGBW LED strip adapts to virtually any setting. It’s ideal for cove lighting, under-cabinet lighting, retail displays, architectural accents, and entertainment lighting. Available in IP20, IP65, and IP67 waterproof ratings, it’s suitable for both indoor and outdoor use.
Main Features of RGBW LED Strip Lights
- Seamless & Uniform Illumination: Advanced COB technology eliminates visible LED dots, delivering ultra-smooth, consistent lighting across the entire strip.
- Rich RGBW Color Spectrum: Combines vibrant RGB output with an independent white LED for precise color mixing and dynamic lighting effects.
- High Luminous Efficiency: Powered by premium COB LEDs, this strip offers exceptional brightness while maintaining excellent energy efficiency.
- 180° Wide Beam Angle: Maximizes light coverage, making it perfect for cove lighting, architectural accents, and ambient lighting applications.
- Flexible & Customizable: Easily bent, shaped, or cut to fit a variety of installation scenarios—from curves to tight corners.
- Robust & Long-Lasting: Crafted with high-quality materials for enhanced durability, stability, and extended lifespan.
- Quick & Secure Installation: Backed with industrial-strength 3M adhesive for fast, reliable mounting on most surfaces.
- Dimmable & Smart Control Ready: Fully compatible with dimmers, smart controllers, and DMX systems for personalized lighting control.
- Indoor & Outdoor Versatility: Available in multiple IP ratings (IP20, IP65, IP67) to suit a wide range of environments and conditions.
Technical Parameter
| Part NO | SR-COB-560RGBW | SR-COB-720RGBW | SR-COB-840RGBW |
|---|---|---|---|
| LED Type: | COB RGBW LED | COB RGBW LED | COB RGBW LED |
| LED Qty/m: | 560leds/m | 720leds/m | 840leds/m |
| CRI: | >90 | >90 | >90 |
| SDCM: | <3 | <3 | <3 |
| Voltage: | DC24V | DC12V | DC24V |
| Power: | 16W | 16W | 16W |
| PCB Width: | 12mm | 12mm | 12mm |
| Colors: | RGBW(2700K-6000K) | RGBW(2700K-6000K) | RGBW(2700K-6000K) |
| View angle: | 180° | 180° | 180° |
| Cut Unit: | 50mm | 33.3mm | 33.3mm |
| Connection Wire: | 20AWG | 20AWG | 20AWG |
| Working Temperature: | -10° C –+45° C | -10° C — +45° C | -10° C – +45° C |
| IP Rated: | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 |
| Warranty: | 5 years warranty | 5 years warranty | 5 years warranty |
Dimension
