Mini Cut 2835 Led Strip Lights
The Mini Cut 2835 LED Strip combines precision, high efficiency, and top-tier LED performance. With its 1 LED 1 cut design, CRI>90, and LM-80 certification, it is the ultimate solution for professional lighting projects requiring flexibility and superior color rendering.
Main Features of Mini Cut Strip Lights
- 1 LED 1 Cut Design: Enables unparalleled precision for customized installations and intricate layouts.
- Mini Cut Capability: Perfect for small-scale applications, tight spaces, and detailed designs.
- 100Lm/W High Efficiency: Energy-saving performance without compromising on brightness.
- CRI >90: Ensures vibrant, true-to-life colors for superior illumination quality.
- SDCM <3: Delivers consistent color across the entire strip for a seamless lighting experience.
- LM-80 Certified LEDs: Guarantees long-lasting performance and reduced light decay over time.
- Flexible Configuration: Easily bends to fit curved or irregular surfaces.
- Standard 5m Rolls: Packaged for convenient installation and handling.
- Versatile Applications: Ideal for architectural accents, retail displays, creative decor, and task lighting.
Technical Parameter
| Part NO | SR-NP-120W2835-5V | SR-NP-120W2835-12V | SR-NP-120W2835-24V |
|---|---|---|---|
| LED Type: | 2835 SMD LED | 2835 SMD LED | 2835 SMD LED |
| LED Qty/m: | 120leds/m | 120leds/m | 120leds/m |
| CRI: | >90 | >90 | >90 |
| SDCM: | <3 | <3 | <3 |
| Voltage: | DC5V | DC12V | DC24V |
| Power: | 12W/m | 14W/m | 19W/m |
| PCB Width: | 10mm | 10mm | 10mm |
| Lumen@3000K: | 930Lm/m | 1400Lm/m | 1750Lm/m |
| Colors: | WW/CW/NW | WW/CW/NW | WW/CW/NW |
| White Color Tempearture: | 2700-6500K | 2700-6500K | 2700-6500K |
| View angle: | 120° | 120° | 120° |
| Cut Unit: | 8.34mm, 1 LED 1 Cut | 8.34mm, 1 LED 1 Cut | 8.34mm, 1 LED 1 Cut |
| Connection Wire: | 22AWG | 22AWG | 22AWG |
| Working Temperature: | 50000 hours | 50000 hours | 50000 hours |
| Working Hours: | -25° C –+45° C | -25° C — +45° C | -25° C – +45° C |
| IP Rated: | IP20/IP54/IP65/IP67/IP68 | IP20/IP54/IP65/IP67/IP68 | IP20/IP54/IP65/IP67/IP68 |
| Warranty: | 5 years warranty | 5 years warranty | 5 years warranty |

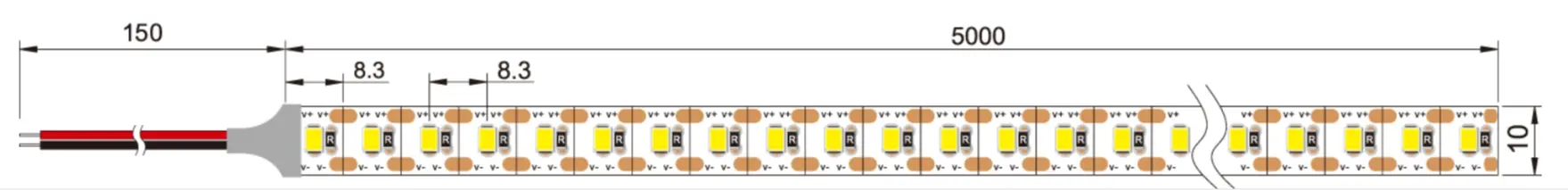

Dimension
