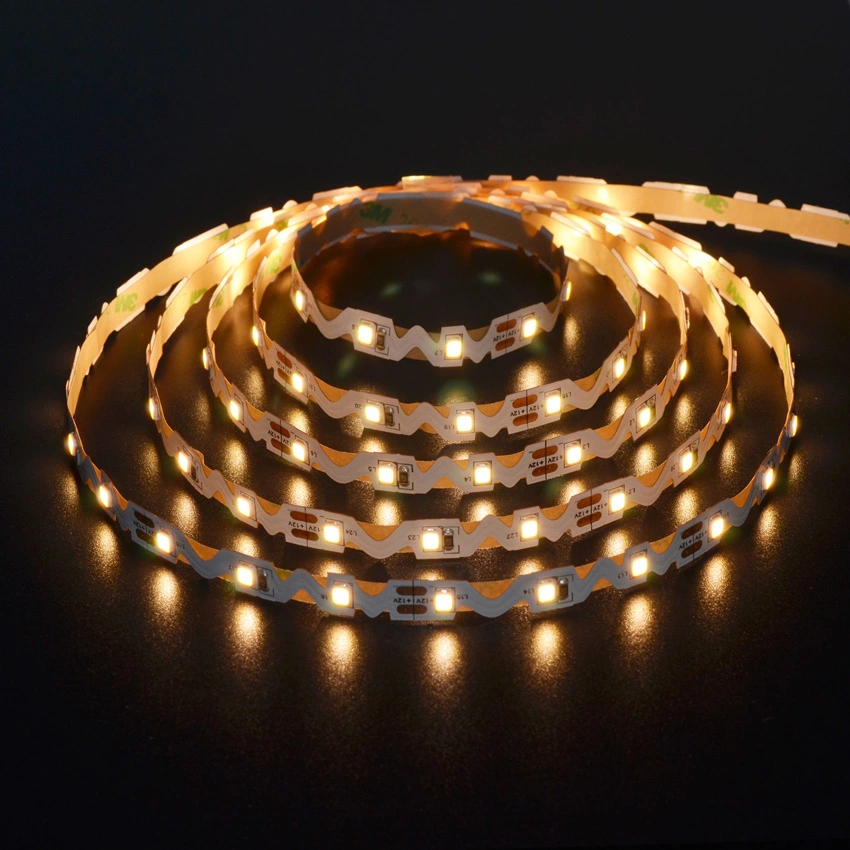

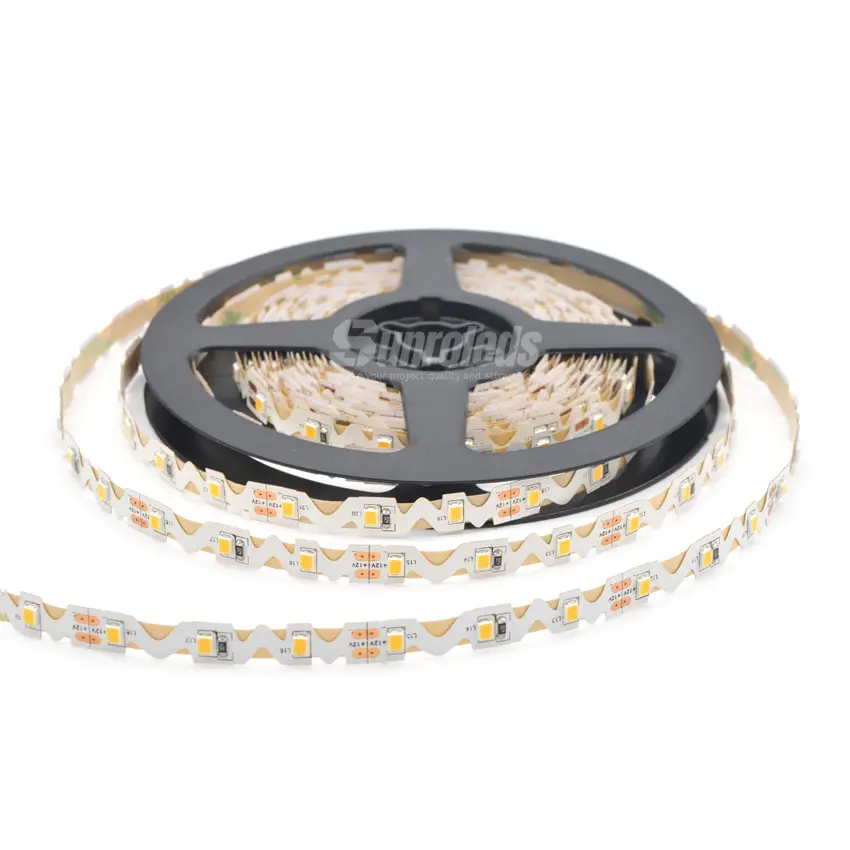

S Type LED Strip
The S-Type LED Strip features a flexible zigzag design, making it the ideal choice for creative layouts and complex installations. Its superior performance, color consistency, and versatility ensure high-quality lighting for diverse applications, such as small channel letters, Indoor decoration lighting, Architectural decoration lighting, advertisement backlighting, channel letter lighting, concealed lighting, cove lighting, Furniture decoration lighting.
Main Features of S Type LED Strip
- Zigzag Design: Unique “S-Type” structure for easy bending and adaptability to curved and irregular surfaces.
- Ultra-Bright Illumination:Equipped with high-density 2835 SMD LEDs, this strip delivers exceptional brightness, making it ideal for both task lighting and ambient decor.
- Energy-Efficient Performance: Designed to consume less power while providing superior light output, reducing energy costs without compromising on quality.
- Flexible & Easy to Install :The flexible PCB allows for seamless bending and cutting, enabling customization for any space or project.
- High CRI: Enhances true-to-life color rendering for professional-grade lighting.
- SDCM <3: Guarantees color consistency across the entire strip for seamless lighting.
- Durable& Long Lasting: Built with high-quality materials, the 2835 S Type LED Strip ensures reliable performance and a long lifespan.
- Easy Installation: Comes with adhesive backing and small cutting lengths for effortless customization.
- Wide Applications: Perfect for signage, decorative lighting, architectural highlights, and more.
Technical Parameter
| Part NO.: | SR-NP-60X2835S | SR-NP-120X2835S |
|---|---|---|
| LED Type: | 2835 SMD LED | 2835 SMD LED |
| LED Qty/m | 60 LEDS/m | 120 LEDs/m |
| CRI: | >90 | >90 |
| SDCM: | <3 | <3 |
| Voltage: | DC12V/24V | DC12V/24V |
| Power: | 6W / 12W | 12W |
| PCB Width: | 6mm / 8mm | 6mm / 8mm |
| Lumen @3000K: | 960-1080Lm | 1200Lm |
| Colors: | W/R/G/B/Y | W/R/G/B/Y |
| Color Temperature: | 2700-6500K | 2700-6500K |
| View angle: | 120° | 120° |
| Cut Unit: | 12V:50mm/24V:100mm | 12V:50mm/24V:100mm |
| Connection Wire: | 22AWG | 22AWG |
| Working Temperature: | -25° C — +45° C | -25° C — +45° C |
| Working Hours: | >50000 hours | >50000 hours |
| IP Rated: | IP20 | IP20 |
| Warranty: | 5 years warranty | 5 years warranty |

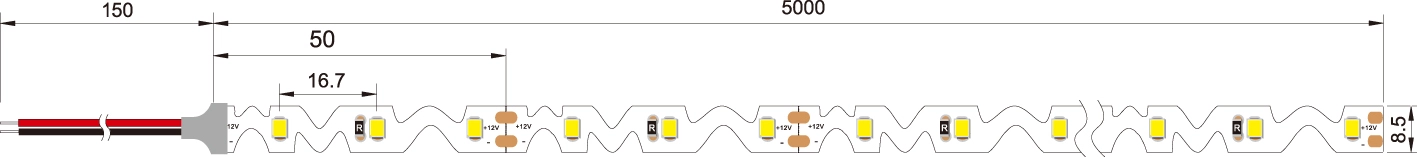

Dimension
Test Report
