5630 LED Strip5630 LED Strip Main Features
- Premium quality Chip: CRI>80, SDCM<5, High brightness, ensuring vibrant and uniform lighting.
- Durable Materials: High-quality double-sided two-ounce copper FPC for reliability.
- Low Light Decay: Maintains brightness over time for long-lasting performance.
- Long Working Life: Designed for extended use, >50000 working hours
- Strong Tapes: Equipped with original 3M adhesive tape on the backside for secure installation.
- Warranty: 5 years warranty;
5630 LED Strip Technical Parameter
| Part NO | SR-NP-60X5630 | SR-NP-72X5630 | SR-NP-120X5630 | SR-NP-240X5630 |
|---|---|---|---|---|
| LED Type: | 5630 SMD LED | 5630 SMD LED | 5630 SMD LED | 5630 SMD LED |
| LED Qty/m: | 60leds/m | 72 leds/m | 120 leds/m | 240 leds/m |
| CRI: | >80 | >80 | >80 | >80 |
| Light Efficiency: | 96.5Lm/W | 96.5Lm/W | 95.7Lm/W | 95Lm/W |
| Voltage: | DC12V/24V | DC24V | DC24V | DC24V |
| Power: | 14.4W | 17.2W | 24W | 24W |
| PCB Width: | 10mm | 10mm | 10/15mm | 15mm |
| Lumen@3000K: | 1310-1368Lm/m | 1440Lm/m | 2012-2296Lm/m | 2112-2232Lm/m |
| Colors: | W/R/G/B/Y | W/R/G/B/Y | W/R/G/B/Y | W/R/G/B/Y |
| White Color Temperature: | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| View angle: | 120° | 120° | 120° | 120° |
| Cut Unit: | 12V:50mm/24V:100mm | 24V:83.33mm | 50mm | 25mm |
| Connection Wire: | 22AWG | 22AWG | 22AWG | 22AWG |
| Working Temperature: | -25° C –+45° C | -25° C — +45° C | -25° C – +45° C | -25° C – +45° C |
| Working Hours: | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| IP Rated: | IP20/IP54/IP65/IP67/IP68 | IP20/IP54/IP65/IP67/IP68 | IP20/IP54/IP65/IP67/IP68 | IP20/IP54/IP65/IP67/IP68 |
| Warranty: | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty |
5630 LED Strip Test Report

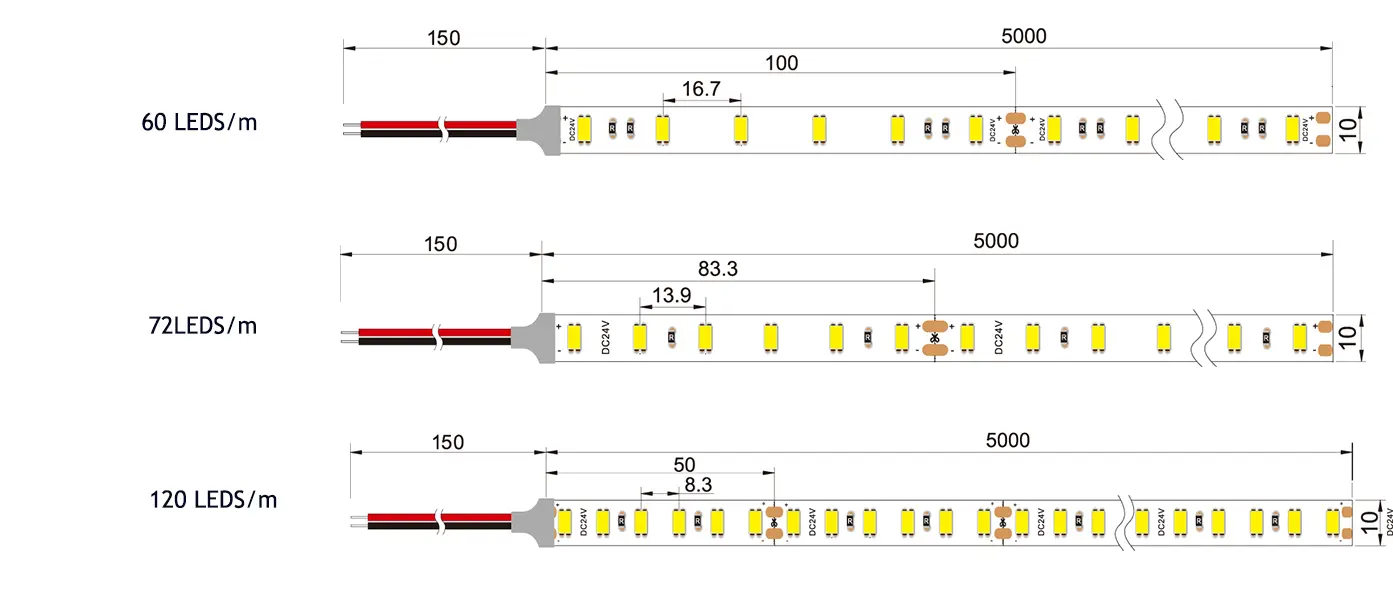

5630 Strip Dimension
5630 LED Strip Waterproof Types:
Frequently Asked Questions
Generally speaking, It wil ltake 3-5 working days for samples; 7-15 working days for Mass production. If production line has burden task, the time might be delayed for several days.
For regular products, We don’t require MOQ. but if it is customized, then MOQ is needed.
Yes! We provide custom PCB width, LED density, CCT, IP rating, length, and packaging to match your project requirements
Our LED strips feature CRI80+, CRI90+, and CRI95+ options for excellent color accuracy and vivid lighting effects.
Yes, most LED strips are cuttable at marked intervals and can be reconnected using connectors or soldering.
Our LED Strip Chip Brand: San’an, Epistar, Lumiled
Our LED is well packaged with cooper bracket and gold wire, CRI>90, SDCM<5, Stable quality, Low light decay, Long working life
We provide 3-5 years warranty: 5 years warranty for indoor use; 3 years warranty for outdoor use;
