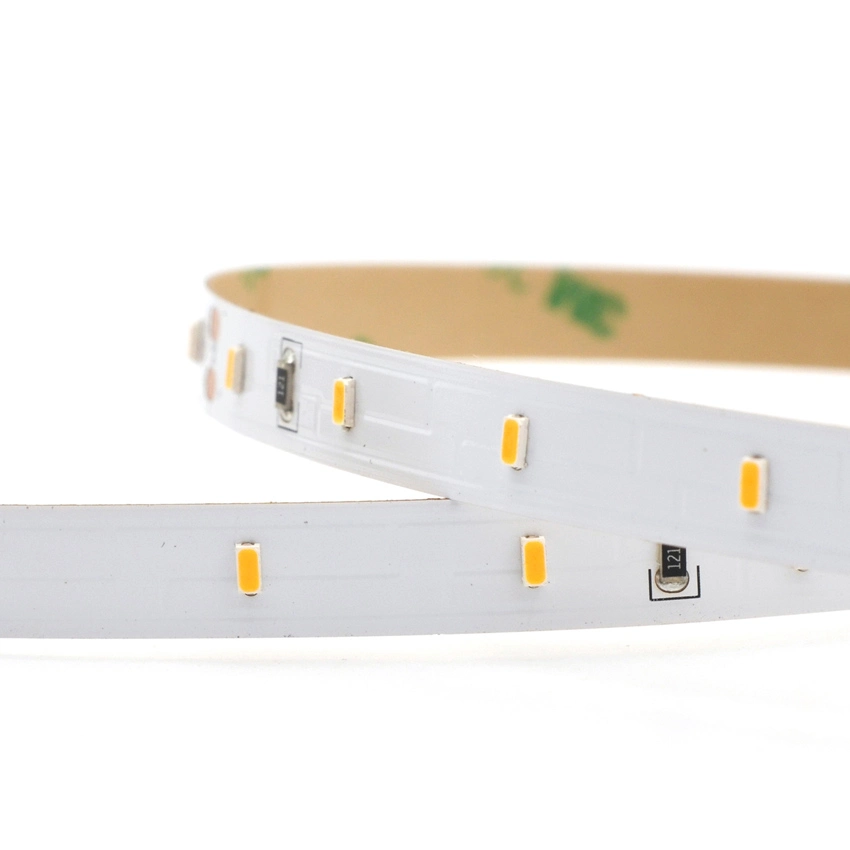

3014 LED Light Strips
The 3014 LED Strip Series is powered by high-quality 3014 SMD LEDs, providing excellent brightness and high CRI. Available in 12V and 24V DC options, with densities ranging from 30 to 204 LEDs per meter, it is ideal for light boxes, indoor illumination, and linear lighting solutions.
Main Features
- High Brightness and Color Consistency: CRI>90, SDCM<3, ensuring vibrant and uniform lighting.
- Durable Construction: High-quality double-sided two-ounce copper FPC for reliability.
- Low Light Decay: Maintains brightness over time for long-lasting performance.
- Long Working Life: Designed for extended use, >50000 working hours
- Strong Adhesion: Equipped with original 3M adhesive tape on the backside for secure installation.
- Flexible and Customizable: The strip can be bent, twisted, and cut to fit various applications.
Technical Parameter
| Part NO.: | SR-NP-60X3014 | SR-NP-120X3014 |
|---|---|---|
| LED Type: | 3014 SMD LED | 3014 SMD LED |
| LED Qty/m | 60 LEDS/m | 120 LEDs/m |
| CRI: | >90 | >90 |
| SDCM: | <5 | <5 |
| Voltage: | DC12V/24V | DC12V/24V |
| Power: | 7.2W | 12W |
| PCB Width: | 8mm | 5mm / 8mm |
| Lumen @3000K: | 600Lm | 1080Lm |
| Colors: | WW/NW/CW | WW/NW/CW |
| Color Temperature: | 2700-6500K | 2700-6500K |
| View angle: | 120° | 120° |
| Cut Unit: | 12V:50mm/24V:100mm | 12V:50mm/24V:100mm |
| Connection Wire: | 20AWG | 20AWG |
| Working Temperature: | -10° C — +45° C | -10° C — +45° C |
| Working Hours: | >50000 hours | >50000 hours |
| IP Rated: | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 |
| Warranty: | 3 years warranty | 3 years warranty |
3014 LED Strip Dimension
3014 LED Strip Waterproof Types
