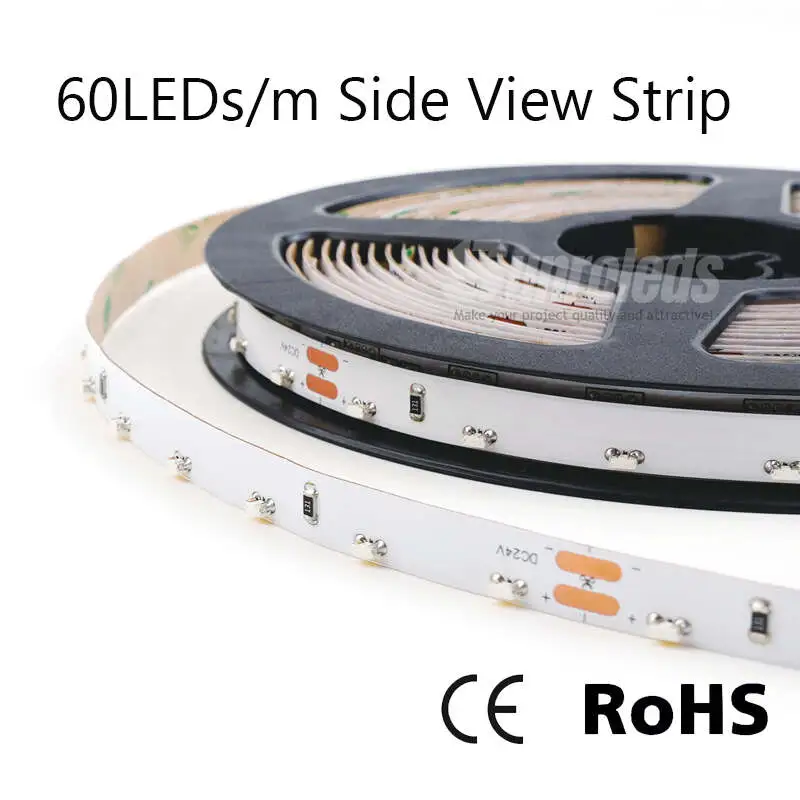

3014 Side Emitting LED Strips
Side Emitting LED Strips, powered by quality 3014 SMD LEDs (CRI > 80/90), offer superior brightness and color consistency. Designed for flexibility and durability, they feature double-sided copper FPC and original 3M adhesive backing for reliable installations. With a lifespan of over 50,000 hours and a 3-year warranty, these strips are perfect for building decoration, office and commercial lighting, cove lighting, and signage. Available in 12V/24V, they suit both indoor and outdoor applications, ensuring high performance and versatility.
Main Features of 3014 Side Emitting LED Strip
- Enhanced Color Consistency: Achieves superior uniformity with an SDCM ≤3 rating, ensuring a seamless lighting effect across the entire strip.
- Customizable Lengths: Small, cuttable increments enable precise adjustments, allowing flexibility for field installations and unique design requirements.
- Versatile Protection Levels: Designed with IP20 protection, easily upgradable to IP54, IP65, or IP67 for enhanced durability and suitability in various environments, including moisture-prone areas.
- Directional Lighting: Emits light from the side, ideal for edge lighting, signage, or creating unique ambient effects in compact spaces.
Technical Parameter
| Part NO | SR-NP-60W3014 | SR-NP-120W3014 | SR-NP-156W3014 | SR-NP-72RGBW3014 |
|---|---|---|---|---|
| LED Type: | 3014 SMD LED | 3014 SMD LED | 3014 SMD LED | 3014 SMD LED |
| LED Qty/m: | 60leds/m | 120leds/m | 156leds/m | 72leds/m |
| CRI: | >90 | >90 | >90 | >80 |
| Light Efficiency@4000K: | 96.2Lm/W | 92.7Lm/W | 96.2Lm/W | 40.8Lm/W |
| Voltage: | DC12V/24V | DC12V/24V | DC24V | DC24V |
| Power: | 6W/m | 12W/m | 15.6W/m | 12W/m |
| PCB Width: | 8mm | 8mm | 10mm | 12mm |
| Lumen: | 522-549Lm/m | 1032-1112Lm/m | 1528Lm/m | 489Lm/m |
| Colors: | WW/CW/NW | WW/CW/NW | WW/CW/NW | RGBW |
| White Color Tempearture: | 2700-6500K | 2700-6500K | 2700-6500K | RGB+ White |
| View angle: | 120° | 120° | 120° | 120° |
| Cut Unit: | 12V:50mm/24V:100mm | 12V:25mm/24V:50mm | 12V:19.2mm 24V:38.5mm | 166.6mm |
| Connection Wire: | 22AWG | 22AWG | 22AWG | 22AWG |
| Working Temperature: | -25° C –+45° C | -25° C — +45° C | -25° C – +45° C | -25° C – +45° C |
| IP Rated: | IP20/IP54/IP65/IP67 | IP20/IP54/IP65/IP67 | IP20/IP54/IP65/IP67 | IP20/IP54/IP65/IP67 |
| Working Life: | > 50000 hours | > 50000 hours | > 50000 hours | > 50000 hours |
| Warranty: | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty |
