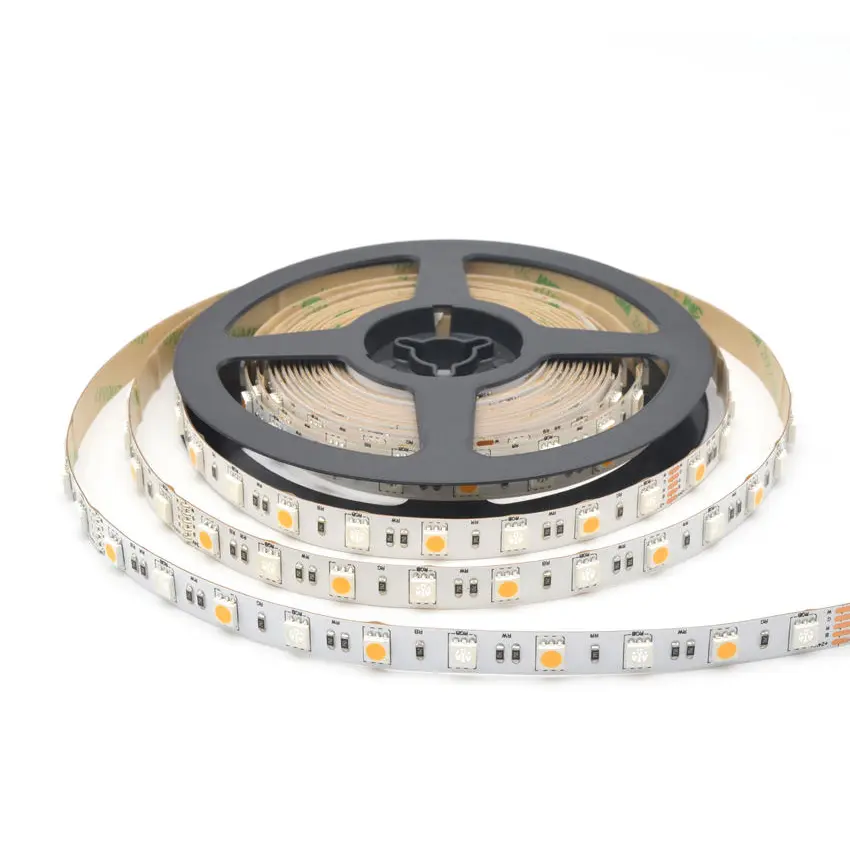

RGB CCT LED Strip Lights
RGB CCT LED strip light is integrated with a Pure White LED between each RGB chip. It offers unmatched versatility, combining dynamic RGB colors with a crisp, dedicated white channel. Its high brightness and adaptable design are ideal for creative, residential, or commercial projects, delivering reliable and beautiful illumination.
Main Features of Our RGB White LED Strips
- RGB + White Configuration: Combines colorful RGB lighting with a separate white LED channel for versatile applications.
- Dedicated Pure White: Delivers clean, true white light, perfect for accents or task lighting.
- High Brightness LEDs: Ensures consistent, vibrant illumination across all color modes.
- Low Light Decay: Designed for long-lasting performance with stable brightness.
- Flexible Design: Easily bends and adjusts to fit curved surfaces and unique layouts.
- Robust Construction: Double-sided 2-ounce pure copper PCB ensures excellent heat dissipation and reliability.
- Controller Compatible: Seamlessly integrates with RGBW controllers for customizable effects.
- Convenient Packaging: Comes in standard 5m rolls for easy installation and handling.
- Wide Applications: Perfect for ambient lighting, retail displays, architectural accents, and event decor.
Technical Parameter
| Part NO | SR-NP-60RGB+W | SR-NP-72RGB+W | SR-NP-120RGB+W |
|---|---|---|---|
| LED Type: | 5050 RGB + 5050 White | 5050 RGB + 5050 White | 5050 RGB + 5050 White |
| LED Qty/m: | 30+30 | 36+36 | 60+60 |
| CRI: | >90 | >90 | >90 |
| SDCM: | <3 | <3 | <3 |
| Voltage: | DC12V/24V | DC24V | DC24V |
| Power: | 14.4W | 17.28W | 28.8W |
| PCB Width: | 10mm | 12mm | 20mm |
| Lumen | 780Lm/m | 930Lm/m | 1568Lm/m |
| Colors: | RGB | RGB | RGB |
| White CCT: | 2700K/3000K/4000K/6500K | 2700K/3000K/4000K/6500K | 2700K/3000K/4000K/6500K |
| View angle: | 120° | 120° | 120° |
| Cut Unit: | 12V:50mm/24V:166.6mm | 166.6mm | 100mm |
| Connection Wire: | 22AWG | 22AWG | 22AWG |
| Max run length: | 5m | 5m | 5m |
| Working Temperature: | -25° C –+45° C | -25° C — +45° C | -25° C – +45° C |
| Working Hours: | 50000 hours | 50000 hours | 50000 hours |
| IP Rated: | IP20/IP54/IP65/IP67/IP68 | IP20/IP54/IP65/IP67/IP68 | IP20/IP54/IP65/IP67/IP68 |
| Warranty: | 5 years warranty | 5 years warranty | 5 years warranty |

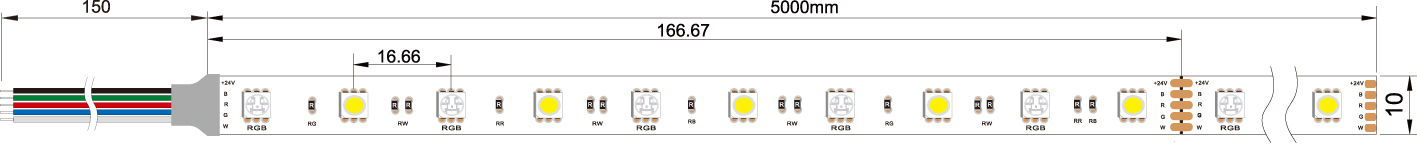

Dimension
