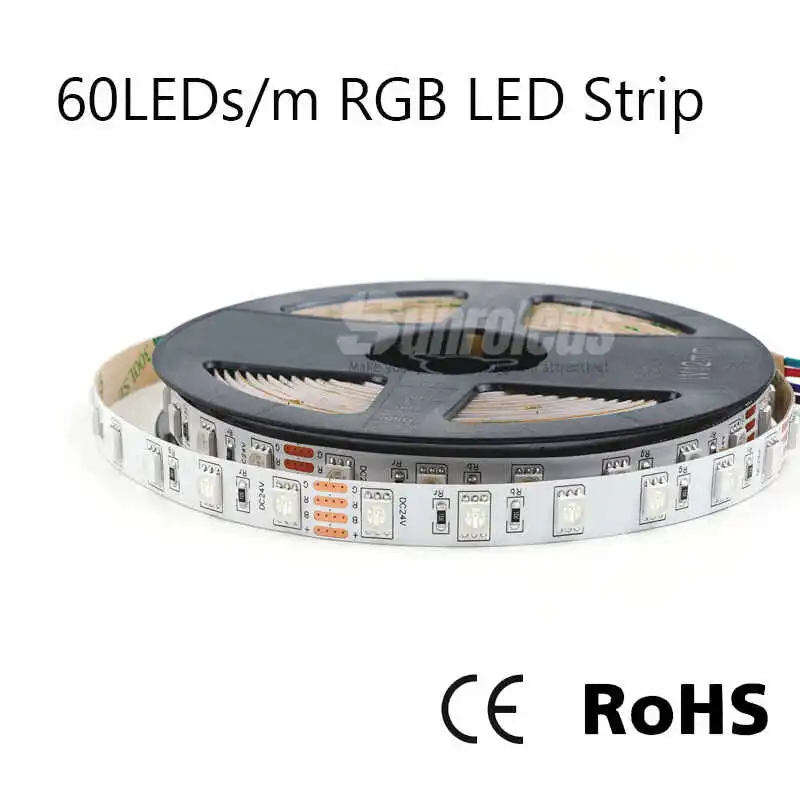

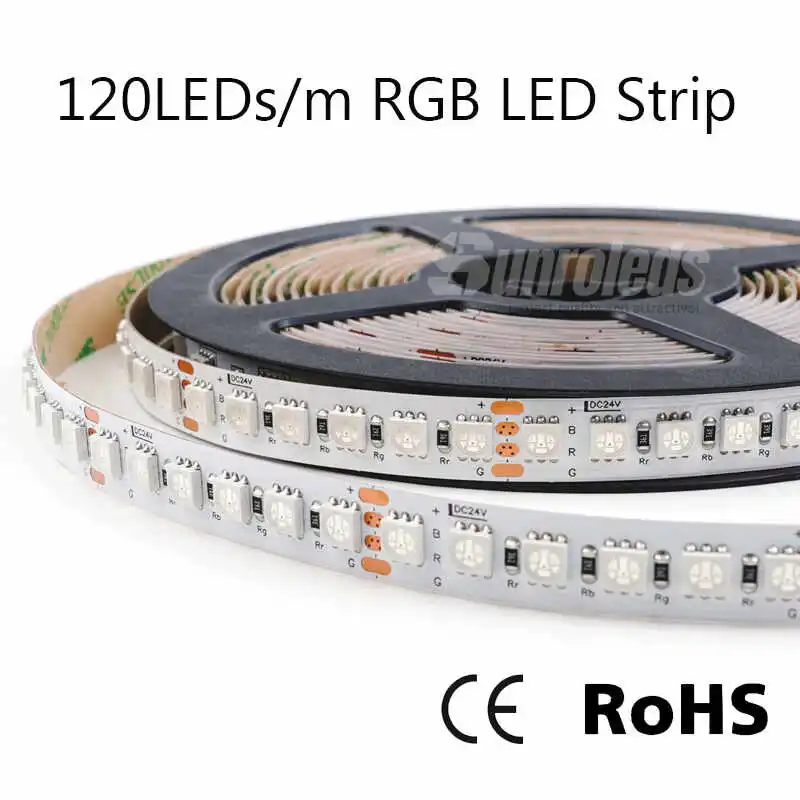

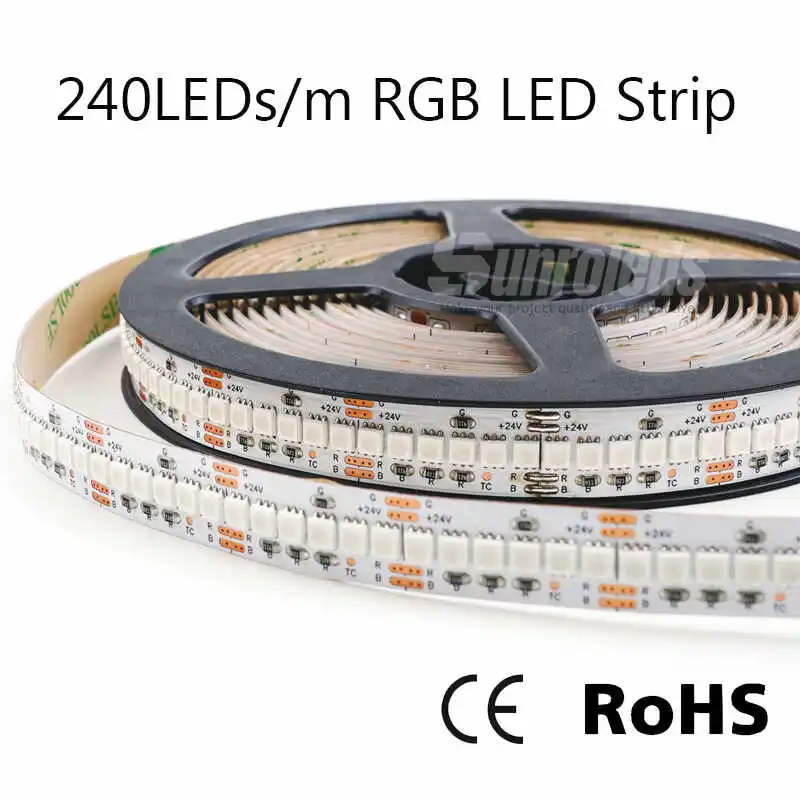

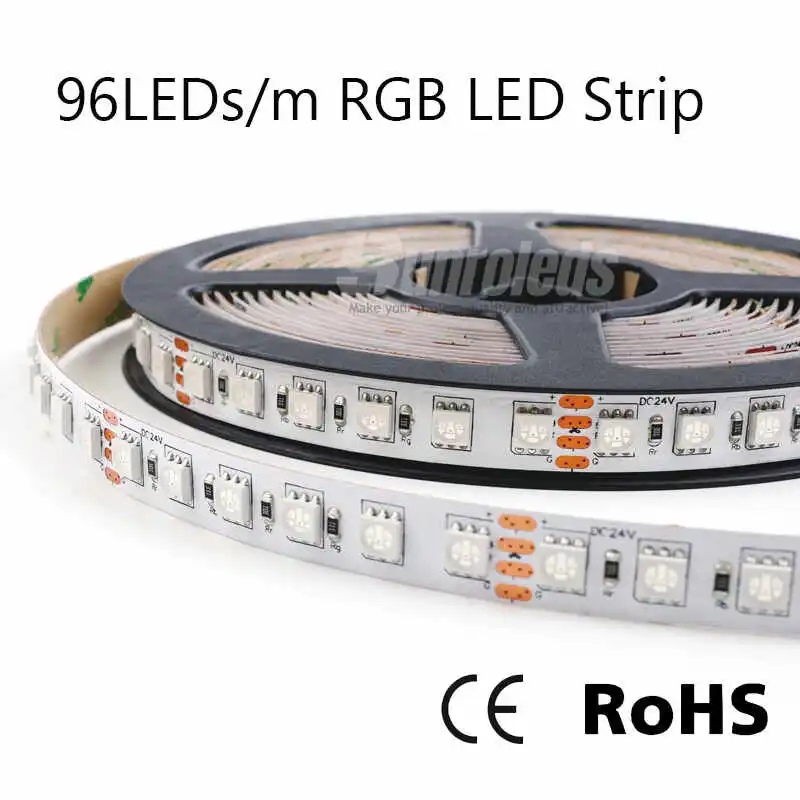

RGB Color LED Strip Lights
Our Flexible RGB Color LED Strip is perfect for creating stunning and dynamic lighting effects. With multiple LED densities (30/60/96/120 LEDs/m), high brightness, and superior color consistency, it is ideal for residential, commercial, and creative applications. The durable double-sided 2oz FPC, combined with flexible and customizable features, ensures easy installation in complex layouts. Whether it’s for architectural accents, retail displays, stage lighting, or ambient decor, this RGB LED strip guarantees outstanding performance backed by a 5-year warranty.
Main Feature of RGB Color LED Strip Light
- Versatile LED Configurations: Available in 30, 60, 96, and 120 LEDs/m options to meet diverse brightness needs.
- Durable Design: Built with a double-sided 2oz FPC for enhanced heat dissipation and longer lifespan.
- Superior Light Quality: High brightness with low light decay ensures vibrant, long-lasting performance.
- Excellent Color Consistency: Enjoy precise and uniform RGB lighting across every strip.
- Flexible & Customizable: Bendable, twistable, and easily cut to fit unique lighting designs and installations.
- Strong Adhesion: Equipped with a 3M adhesive tape on the backside for secure and hassle-free mounting.
- Standard Length: Comes in standard 5-meter rolls, simplifying installations for any project.
- Warranty Assurance: Backed by a reliable 5-year warranty for peace of mind and lasting performance.
Technical Parameter
| Part NO | SR-NP-60RGB5050 | SR-NP-72RGB5050 | SR-NP-120RGB5050 | SR-NP-240RGB3838 |
|---|---|---|---|---|
| LED Type: | 5050 RGB LED | 5050 RGB LED | 5050 RGB LED | 3838 RGB LED |
| LED Qty/m: | 60leds/m | 72leds/m | 120leds/m | 240leds/m |
| CRI: | >80 | >80 | >80 | >80 |
| Voltage: | DC12V/24V | DC24V | DC12V/24V | DC24V |
| Power: | 14.4W | 17.28W | 23W | 24W |
| PCB Width: | 8mm/10mm | 10mm | 12mm / 20mm | 12mm |
| Lumen | 620Lm/m | 743Lm/m | 1238Lm/m | 1338Lm/m |
| Colors: | RGB | RGB | RGB | RGB |
| View angle: | 120° | 120° | 120° | 120° |
| Cut Unit: | 12V:50mm/24V:100mm | 83.3mm | 12V:25mm/ 24V:50mm | 25mm |
| Connection Wire: | 22AWG | 22AWG | 22AWG | 22AWG |
| Working Temperature: | -25° C –+45° C | -25° C — +45° C | -25° C – +45° C | -25° C – +45° C |
| IP Rated: | IP20/IP54/IP65/IP67 | IP20/IP54/IP65/IP67 | IP20/IP54/IP65/IP67 | IP20/IP54/IP65/IP67 |
| Working Hours | 50000 hours | 50000 hours | 50000 hours | 50000 hours |
| Warranty: | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty |

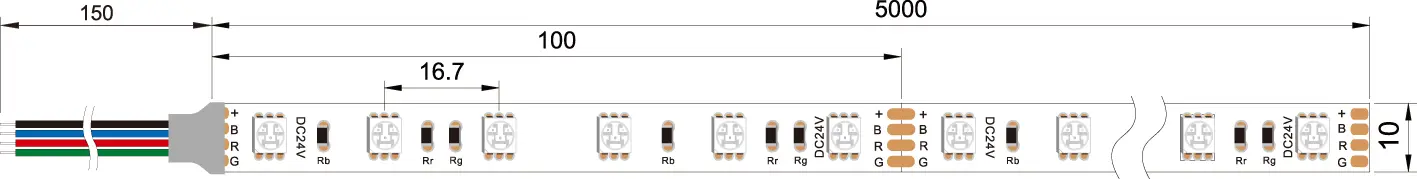

Dimension

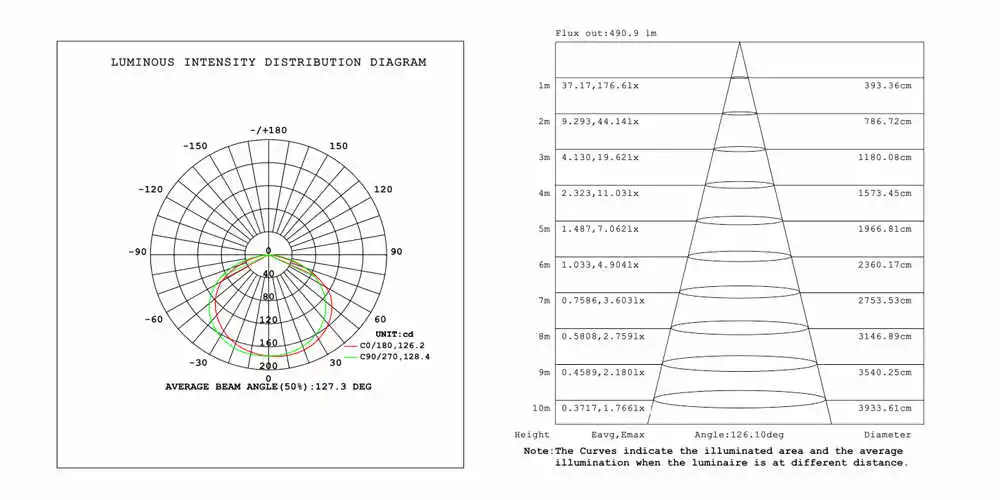

Test for 60LEDS/m RGB LED Strips
