Underwater Neon LED Strip IP68
The Underwater Neon LED Strip IP68 is specially engineered for long-term underwater use, delivering outstanding performance in swimming pools, fountains, and water features. With an IP68 waterproof rating, it guarantees full protection against water ingress, making it perfect for continuous submersion.
Made from high-quality PU material, this LED strip resists yellowing, saltwater corrosion, and acid and alkali erosion, ensuring exceptional durability. It also provides effective chlorine protection, ideal for chlorinated pool environments. The milky white neon LED strip emits a soft, uniform glow without any light spots, creating a clean and elegant underwater ambiance.
Main Features of IP68 LED Strips
- IP68 Waterproof Rating: Engineered for long-term underwater use, perfect for swimming pools, fountains, and water features.
- Soft & Even Illumination: The milky white light strip provides smooth, uniform lighting without dark spots, creating an elegant underwater glow.
- Durable PU Material: Made from PU that resists yellowing, saltwater corrosion, weak acids, and alkali damage for lasting performance.
- Chlorine-Resistant: Specially designed to withstand chlorine exposure in swimming pool environments.
- Flexible Installation Options: Available with single-ended and double-ended cable outlets to suit various installation needs.
- Versatile Underwater Applications: Ideal for submerged and semi-submerged settings such as decorative fountains, jacuzzis, and aquariums.
- Easy Installation: Flexible design allows for custom lengths and precise fitting in any underwater environment.
Technical Parameter
| Part NO | SR-IP68-SH1220 | SR-IP68-TV1615 | SR-IP68-SH0612 |
|---|---|---|---|
| Lighting Emitting | Side Bend, Horizontal Bend | Top Bend, Vertical Bend | Side Bend, Horizontal Bend |
| LED | Top quality LED | Top LED | Top LED |
| Voltage | DC24V | DC24V | DC24V |
| Power | 10W/m | 10W/15W | 8W/m |
| Lumen/m | 250-350Lm | 305-900Lm | 365-400Lm |
| Colors: | W/WW/CW/R/B/Y/G/CCT/RGB/RGBW | W/R/G/B/Y/RGB/RGBW/CCT | W/R/G/B/Y/RGB/CCT |
| CCT | 2700-6500K | 2700-6500K | 2700-6500K |
| Driver System available | Constant Voltage | Constant Voltage | Constant Voltage |
| Max Run Length | 5m | 5M | 5m |
| Cut unit | 41.67mm | 41.67mm | 41.67mm |
| CRI | CRI>90 | CRI>90 | CRI>90 |
| Material | PU (Polyurethane) | PU (Polyurethane) | PU (Polyurethane) |
| Resistance | Anti-yellowing, chlorine, salt liquid, weak acid, alkali | Anti-yellowing, chlorine, salt liquid, weak acid, alkali | Anti-yellowing, chlorine, salt liquid, weak acid, alkali |
| Cable | 20AWG TPU Cable | 20AWG TPU Cable | 20AWG TPU Cable |
| Cable Outlet | Single-ended / Double-ended | Single-ended / Double-ended | Single-ended / Double-ended |
| Cable Entry Option | Front Cable Entry, Side Cable Entry, Bottom Cable Entry | Front Cable Entry, Side Cable Entry, Bottom Cable Entry | Front Cable Entry |
| Cutting Mark | Yes | Yes | Yes |
| Mounting Way | Mounting Clip, Flexible Profiles, Aluminum profiles | Mounting Clip, PC Profiles, Aluminum profiles | Mounting Clip, Flexible Profiles, Aluminum profiles |
| Working Temperature | -25℃~ 60℃ | -25℃~ 60℃ | -25℃~ 60℃ |
| Size | 1000x12x20mm | 1000x16x15mm | 1000x6x12mm |
| IP Rated | IP68 Rated (Submersible) | IP68 Rated(Submersible) | IP68 Rated(Submersible) |
| Working Hours | 50000 hours | 50000 hours | 50000 hours |
| Warranty | 3 years warranty | 3 years warranty | 3 years warranty |

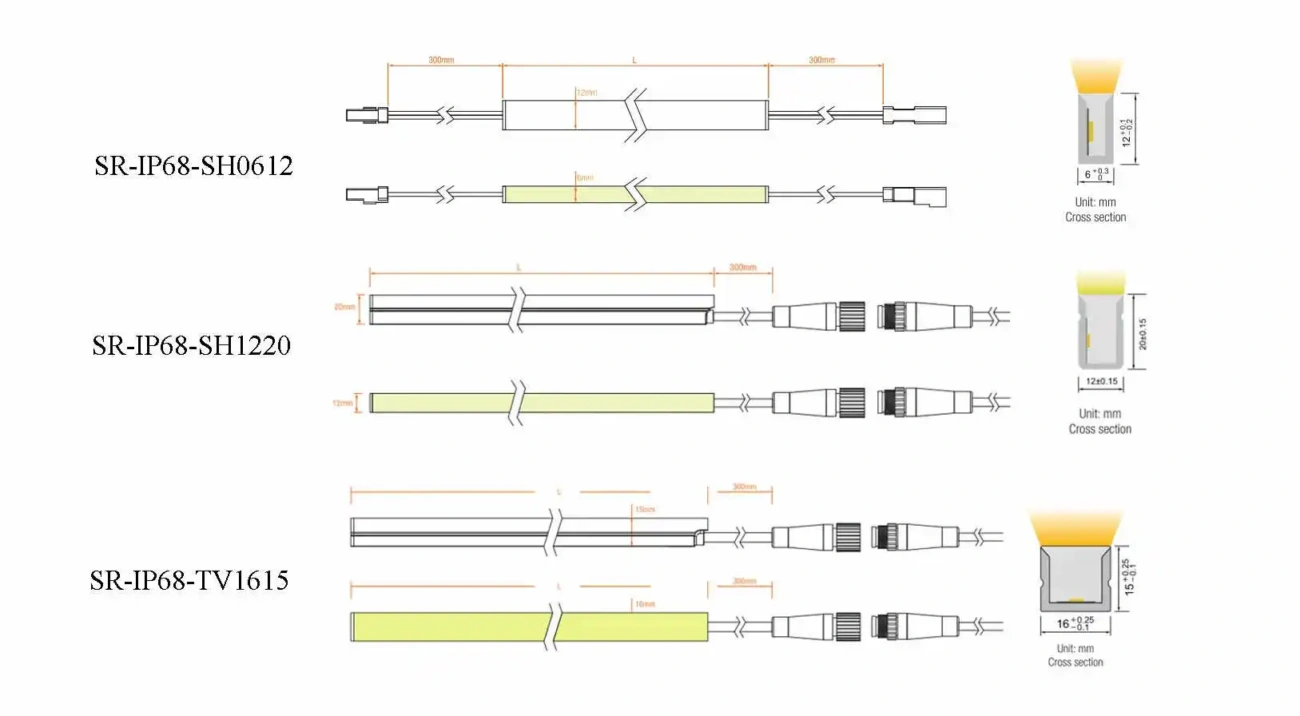

Dimension
Video
Application
- Swimming Pools: Create vibrant underwater lighting effects for residential and commercial pools.
- Fountains & Water Features: Highlight outdoor fountains, waterfalls, and pond features with seamless illumination.
- Jacuzzis & Spas: Add a luxurious touch with soft, consistent lighting in spa areas.
- Aquariums: Provide stable, safe lighting for large aquariums and water tanks.
- Resorts & Hotels: Enhance outdoor pool areas and decorative water installations with durable, long-lasting LED lighting.
- Architectural Water Designs: Ideal for water-integrated architectural features, ensuring bright, reliable performance even underwater.
