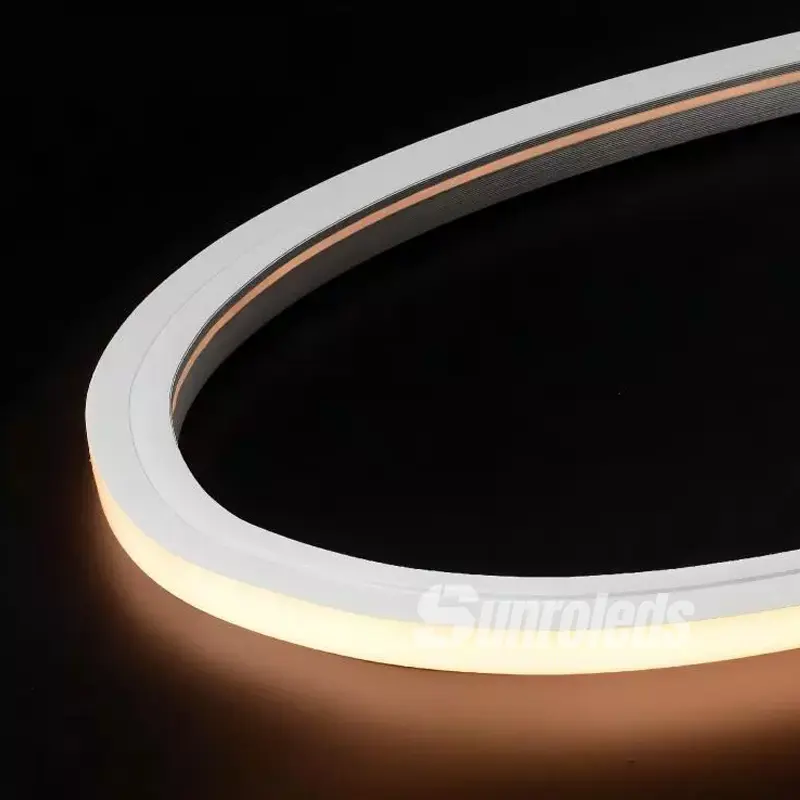

3D Bending Neon Strip Lights 1617
Transform your spaces with our innovative 3D Neon Strip Lights, designed for both indoor and outdoor use. This product combines flexibility and functionality, allowing for both vertical and horizontal bends. With just one model, you can cover two bending directions, simplifying your inventory management and enabling more flexible installations on-site.
Main Features
- High-Quality Lumileds LEDs: Our 3D neon strip lights utilize premium Lumileds LEDs, ensuring superior brightness and exceptional color rendering for stunning lighting effects.
- Color Consistency: Enjoy outstanding color consistency with an SDCM (Standard Deviation of Color Matching) of less than 3, ensuring uniform and accurate light output across your installation.
- Easy Configuration: The LED neon strips support customizable lengths through small cutting intervals, making precise on-site installations effortless.
- Uniform Lighting & Dimming: Enjoy consistent illumination across your installations, with adjustable brightness to suit any ambiance.
- Optional Matte Dust-Free Surface: Enhance the aesthetic appeal with our optional matte finish that resists dust and fingerprints.
- Durable & Resistant: Made with Dow Corning SILASTIC™ silicone and co-extrusion molding, these neon strips offer exceptional UV resistance, chemical stability, and wear resistance.
- Double Protection with PCB Breakage Prevention: Our advanced technology ensures the strips are flexible for both vertical and horizontal bends without compromising durability.
Technical Parameter
| Part NO. | SR-NEON-3D1617 |
|---|---|
| LED Type: | 2835 LED |
| Voltage: | DC24V |
| Driver Methord: | Constant Voltage |
| Power: | 10Watt |
| Lumen: | 737-800Lm/m |
| Max Length: | 5 m /roll |
| Colors available: | W /R/G/B/Y / Pink/ Orange / CCT / RGB/RGBW / Pixel RGB |
| Colors Temperature: | 2100K/2400K/2700K/3000K/3500K/4000K/5000K/6000K |
| Beam angle: | 110° |
| Material: | American Brand Dow-corning Silicone, UV Reistance, Corrosion Resistance |
| Cuttable Length: | 50mm |
| IP Rated: | IP67 |
| Dimension: | 16mm*17mm/(W*H) |
| Working temperature: | -25 – +60℃ |
| Cable Options: | Silicone Cable/ Waterproof male and female plug |
| Cable Entry Options: | Front, Side, Bottom cable entry |
| Accessories available: | Aluminum profile, Moutning Clips, Silicone End caps |
| Working Life: | >50000 working hours |
| Warranty | 3-5 years warranty |
Dimension
Product Video

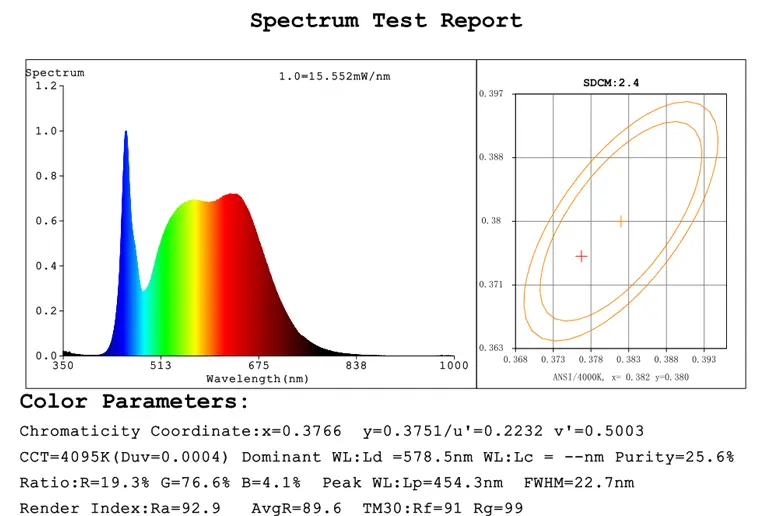

Test Report
