16 Waterproof Methods of LED Strip Lights
From outdoor patios to humid kitchens, waterproof LED strip lights are the go-to choice for environments where moisture is a concern. But not all waterproofing is created equal, and picking the right protection level can make or break the performance of your lighting project.
In this guide, we’ll walk you through the essential IP rating system, followed by 15 proven waterproofing techniques we use at our factory level — each tailored for specific environments, budgets, and installation needs.
Whether you’re a project contractor, lighting designer, or a distributor looking to serve commercial and residential customers, this guide will help you choose smarter and specify better.
IP stands for Ingress Protection, a rating system that tells you how well a product is sealed against solids like dust and liquids like water. It’s made up of two digits:
The first digit (0–6) refers to protection against solid particles.
The second digit (0–8) refers to protection against water and moisture.
Waterproof LED Strip IP Ratings Explained (IP20 to IP68)
Here’s a quick breakdown of the most relevant waterproof IP ratings for LED strips:
| IP Rating | Protection Level | Typical use |
|---|---|---|
| IP20 | No water protection | Indoor, dry areas only |
| IP54 | Splash-resistant (limited angle, minor splashes) | Indoor kitchens near sinks, where splashing is possible |
| IP65 | Protected from water jets (low pressure) | Bathrooms, under cabinets |
| IP67 | Waterproof and can be temporarily immersion (up to 30 min) | Outdoors, garden walls |
| IP68 | Continuous submersion | Pools, marine, aquariums, and water features |
What You Should Know About Waterproof LED Strip Structure & Performance
Waterproof LED strips do more than just survive the rain; they’re engineered to perform in harsh environments without compromising on light quality or lifespan. Here’s what goes on behind the scenes.
Dust and Water Resistance Mechanisms
At the core of any Waterproof LED strip Lights is a protective barrier that keeps water and dust away from the circuitry. Whether it’s a thin nano coating LED Strip, a conformal silicone Coating LED Strip, or a fully sealed extrusion, the goal is the same: block moisture and contaminants from reaching sensitive electronics.
This barrier is critical. Once water or dust breaches the protection layer, it can lead to dimming, short circuits, corrosion, or complete failure. That’s why choosing the right waterproofing technique based on your installation environment is so important.
Impact on Light Output & Flexibility
While protective layers offer durability, they can also affect the strip’s appearance and performance. Some waterproof coatings slightly diffuse the light, soft Light, or alter beam clarity. For high-end applications, always check with the LED Strip manufacturer for lumen output and color rendering data.
Materials like silicone and PU are not just waterproof—they also resist UV yellowing and maintain flexibility over time, which is especially valuable for outdoor and curved installations.
Waterproof LED Strip Maintenance
After cutting waterproof LED strips, Do seal the ends with silicone glue or special end caps so water won’t get in. Or else, moisture might sneak in and damage the wires. To help your strip lights last longer, check them now and then and give them a light clean, especially if they’re outside. These little steps go a long way in keeping your LED Lights safe and shining bright
16 Waterproofing Techniques We Use at Sunroleds
Here at Sunro, we’ve engineered 16 waterproofing methods, from basic silicone coatings to advanced Waterproof Extrusion technology. Each method serves different needs, so understanding their pros, cons, and best-fit scenarios is key to specifying the best waterproof strip.
Let’s dive in:
Silicone Coating (IP65)
A top layer of silicone gel is dispensed and cured directly over the strip. It fits PCBs with widths of 5, 8, 10, 12, and 15mm. This coating offers excellent resistance to yellowing, weather, UV rays, and heat, while maintaining high light transmittance.
Silicone Tube (IP65)
This clear silicone tube with an IP65 waterproof rating holds the LED strip inside hollow. it offers excellent resistance to yellowing, weather, and UV rays, along with outstanding heat resistance and high light transmittance.
Silicone Glue with Half Silicone tube (IP65)
With an IP67 waterproof rating, this silicone sleeve combined with injected Silicone Glue provides double-layer protection against weather and wear. It offers excellent waterproof and UV Resistance, and high light transmittance. It fit for 8mm,10mm, 12mm width PCB
Irrigated Silicone Glue Sealing (IP67)
IP67 waterproof rating. This is fully filled with silicone to achieve higher levels of water tightness and resistance to mechanical stress. Resists yellowing, UV rays, and heat. Excellent heat resistance, high light transmittance, keeping your Strip lights brighter and lasting longer. Suitable for rainy and outdoor enviroment
PU Coating (IP65)
It is IP65 rated. Highly durable and flexible, it resists UV rays, salt, and chemicals. It features High transmittance, smooth surface, good touch than silicone version, good visual effect, Perfect softness, soft glow, no glare
PU Coating with half tube (IP67)
With an IP67 waterproof rating, this PU sleeve combined with injected PU glue provides double-layer protection against weather and wear. It offers excellent resistance to weather and UV rays, high light transmittance, and a smooth surface that feels great to the touch. The result is a soft glow with no glare, delivering a pleasing visual effect and perfect softness. suitable for rainy and outdoor enviroment
Irrigated PU Glue Sealing (IP68)
Our premium waterproofing process fully encases the strip in seamless silicone extrusion, then vacuum-fills it with PU glue for superior protection. With an IP68 waterproof rating, it offers excellent resistance to weather and UV rays. The high light transmittance, smooth surface, and pleasant touch combine to create a soft glow with no glare, delivering an outstanding visual experience and perfect softness. suitable for extreme outdoor enviroment
Heat Shrink Tubing (IP65)
This heat shrink covering has an IP65 waterproof rating and features a soft, flame-retardant outer layer. (The transparent version is non-flame retardant.) It’s environmentally friendly and shrinks at temperatures between 80℃ and 110℃. It operates reliably in temperatures ranging from -45℃ to 65℃. suitable for a humid environment. It fits 8mm and 10mm FPCs, with a thickness of around 2mm and 2.5mm
Nano Coating (IP65)
An ultra-thin waterproof film is sprayed directly onto the PCB surface. It keeps the strip slim, flexible, and lightweight without adding any surface stress or affecting circuit performance. Made from a highly transparent material, it doesn’t impact the optical quality. The waterproof layer also has minimal effect on heat dissipation and provides reliable protection against air and water, meeting IP65 standards.
Silicone Square Tube Extrusion (IP65)
This clear silicone tube with an IP65 waterproof rating holds the LED strip inside.Made with integrated silicone extrusion, it offers strong waterproof and dustproof protection. It also delivers excellent weather resistance, high light transmission, bright illumination, and great heat resistance.
Silicone half round tube extrusion (IP54)
With an IP54 waterproof rating, the silicone half-round tube is extruded and filled with epoxy to fully seal the strip. It offers good weather resistance, high light transmission, and excellent brightness and heat resistance. This design is suitable for 8, 10, and 12mm PCBs.
Silicone square solid extrusion (IP67)
The Waterproof LED strip is fully co-extruded with solid silicone, creating a strong and flexible waterproof strip with an IP67 rating. This integrated silicone design offers excellent waterproof and dustproof protection, along with good weather resistance, high light transmission, and outstanding heat resistance. It fit for 8/10/12mm PCB with the height of 4.5mm

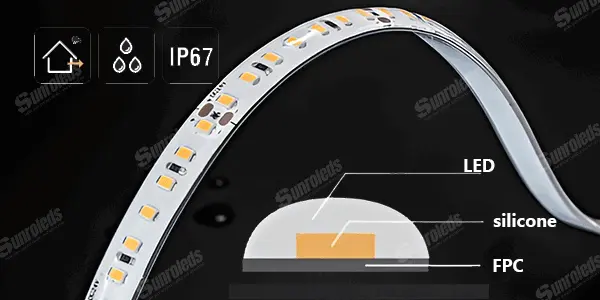

Silicone Half-Round Solid Extrusion (IP67)
The Waterproof LED strip is fully co-extruded with half-round solid silicone, creating a strong and flexible waterproof strip with an IP67 rating. This integrated silicone design offers excellent waterproof and dustproof protection, along with good weather resistance, high light transmission. It is suitable for 8/10/12mm PCB.
Milky White half-Round tube Extrusion (IP65)
This extrusion features a half-round milky White silicone sleeves that provides strong waterproofing IP65 Rated and gentle light diffusion. It reduces harsh glare and integrates smoothly into architectural and decorative settings, making it perfect for spaces where both appearance and waterproof
Hollow half-Round Extrusion (IP65)
Designed with a flexible hollow inside, this Waterproof extrusion provides shock absorption and water resistance while keep lightweight. Its half-round shape fits perfectly on curved surfaces or custom architectural lines. It fit for 8mm,10mm wide PCB Strips
Hollow Square Dual-Color Extrusion (IP65)
Built with a hollow square profile and crafted in two-tone silicone, this advance solution enhances both structural integrity and visual appeal. The inner and outer layers may vary in hardness or color to optimize installation ease and light diffusion. Ideal for modern designs where waterproof performance meets refined presentation.
Application Scenarios for IP Waterproof LED Strips
Waterproof LED strip lights aren’t one-size-fits-all; their IP ratings determine where they work best. Here’s a quick breakdown of which rating suits which space:
Indoor Damp Zones
Think bathrooms, kitchens, laundry rooms — anywhere with steam or the occasional splash. An IP54 /IP65 LED Strip is usually all you need here.
Semi-Outdoor Areas
Covered patios, gazebos, balconies, or under eaves — these spots face the weather indirectly. IP65 LED strips hold up well to moisture and light rain.
Near Water — But Not Underwater
Pool perimeters, fountains, dock edges, or garden ponds. These places get wet, fast. Go with an IP67 Neon Strip Light for protection against short-term submersion and heavy splashing.
Fully Submerged Locations
Installing lights in the pool, aquarium, or a decorative water feature? You’ll need an IP68 LED Strip for continuous underwater use, and make sure your connectors and end caps are sealed too.
Tough Industrial Environments
Factories, garages, coastal sites, or anywhere with chemicals, salt spray, or temperature extremes. A high IP rating alone isn’t enough here — choose rugged materials like PU or solid silicone that resist corrosion and wear.
How to Choose the Right Waterproof Level
Selecting the correct waterproof level isn’t just about ticking boxes — it’s about matching protection to reality. Here’s how I recommend approaching it:
1. Start with the Environment
Is your installation indoors, outdoors, or underwater? That’s your first filter. For a living room cove light, you don’t need more than IP20. For a pool edge or yacht lighting, nothing below IP67/IP68 will survive.
2. Think About Exposure, Not Just Location
Just because a light is outdoors doesn’t mean it’s soaking wet 24/7. A LED strip mounted under a covered pergola is exposed very differently from one wrapped around a garden fountain. Consider the frequency of water contact, splashes, storms, or full submersion?
3. Consider Maintenance and Lifespan
A slightly higher waterproof level often pays off in longevity. For example, an IP65 LED Light strip might work in your semi-outdoor bar area, but upgrading to IP67 could mean you won’t need to replace it for years, even with heavy summer rain or humidity.
4. Don’t Forget Connectors and End Caps
This is where many installations fail. Even if the Waterproof LED Light strip itself is IP68, a poorly sealed connector or exposed end can let in moisture and ruin the whole setup. Always use matching waterproof accessories, and seal every cut with silicone or end caps.
5. When in Doubt, Go One Step Higher
If you’re on the fence between two levels, choose the higher one. A slightly more rugged strip upfront is cheaper than rewiring and replacing later.
Final Thoughts: Choosing the Best Waterproof LED Strip for Your Project
Choosing the right waterproof LED strip lights isn’t just about keeping water out — it’s about securing long-term performance, reliability, and safety in the environment where it matters most.
With so many IP ratings and waterproofing methods on the market, the decision can feel overwhelming. But here’s the truth: when you match the right protection level to your application — and choose a manufacturer that backs their product with engineering, not guesswork — you get peace of mind built in.
At Sunroleds, we don’t just sell LED strips — we also engineer waterproof lighting solutions that last. Whether you need an IP65 flexible LED strip for kitchen cabinets or an IP68 LED Light solution for underwater installations, we’ve got the expertise, High-quality materials, and in-house manufacturing to deliver results you can count on.
