High Efficiency LED Light Strip
Our premium high-efficiency LED light strip features a cutting-edge constant current design. It ensures optimal illumination and uniform light distribution, setting a new standard for efficiency and performance in lighting solutions. With these energy-saving designs, It maximizes light output while maintaining energy efficiency, making our LED Light Strips ideal for a wide range of applications, from architectural lighting to decorative installations. 5-year warranty
Main Features
- Ultra-High Efficiency – 170lm/W, ensuring maximum brightness with energy savings
- Constant Current Design – Provides stable and flicker-free lighting for longer durability
- Precision Installation – Small cuttable length allows flexible configuration
- Superior Color Consistency – SDCM ≤3 ensures even, high-quality illumination
- Adaptable Protection Levels – Standard IP20, upgradeable to IP65 for added durability
- Ideal for Various Applications – Designed for commercial, industrial, and architectural lighting
Technical Parameter
| Part NO | SR-NP-64W2835CC | SR-NP-80W2835CC | SR-NP-128W2835CC | SR-NP-160W2835CC |
|---|---|---|---|---|
| LED Type: | 2835 SMD LED | 2835 SMD LED | 2835 SMD LED | 2835 SMD LED |
| LED Qty/m: | 64leds/m | 80leds/m | 128leds/m | 160leds/m |
| CRI: | >90 | >90 | >90 | >90 |
| SDCM: | <3 | <3 | <3 | <3 |
| Voltage: | DC24V | DC24V | DC24V | DC24V |
| Power: | 9.6W/m | 12W/m | 18W/m | 21W/m |
| High Efficiency: | 160Lm/W / 190Lm/W | 160Lm/W / 190Lm/W | 160Lm/W / 190Lm/W | 160Lm/W / 190Lm/W |
| Driver Methord: | Cosntant Current | Cosntant Current | Cosntant Current | Cosntant Current |
| PCB Width: | 10mm | 10mm | 12mm | 12mm |
| Lumen@3000K: | 1536-1728Lm/m | 1920-2160Lm/m | 2880-3240Lm/m | 3360-3780Lm/m |
| Colors: | WW/NW/CW | WW/NW/CW | WW/NW/CW | WW/NW/CW |
| White Color Tempearture: | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| View angle: | 120° | 120° | 120° | 120° |
| Cut Unit: | 125mm | 100mm | 62.5mm | 50mm |
| Connection Wire: | 20AWG | 20AWG | 20AWG | 20AWG |
| Max Running Length: | 5m | 5m | 5m | 5m |
| Working Temperature: | -10° C –+45° C | -10° C — +45° C | -10° C – +45° C | -10° C — +45° C |
| IP Rated: | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 | IP20/IP65/IP67/IP68 |
| Warranty: | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty |

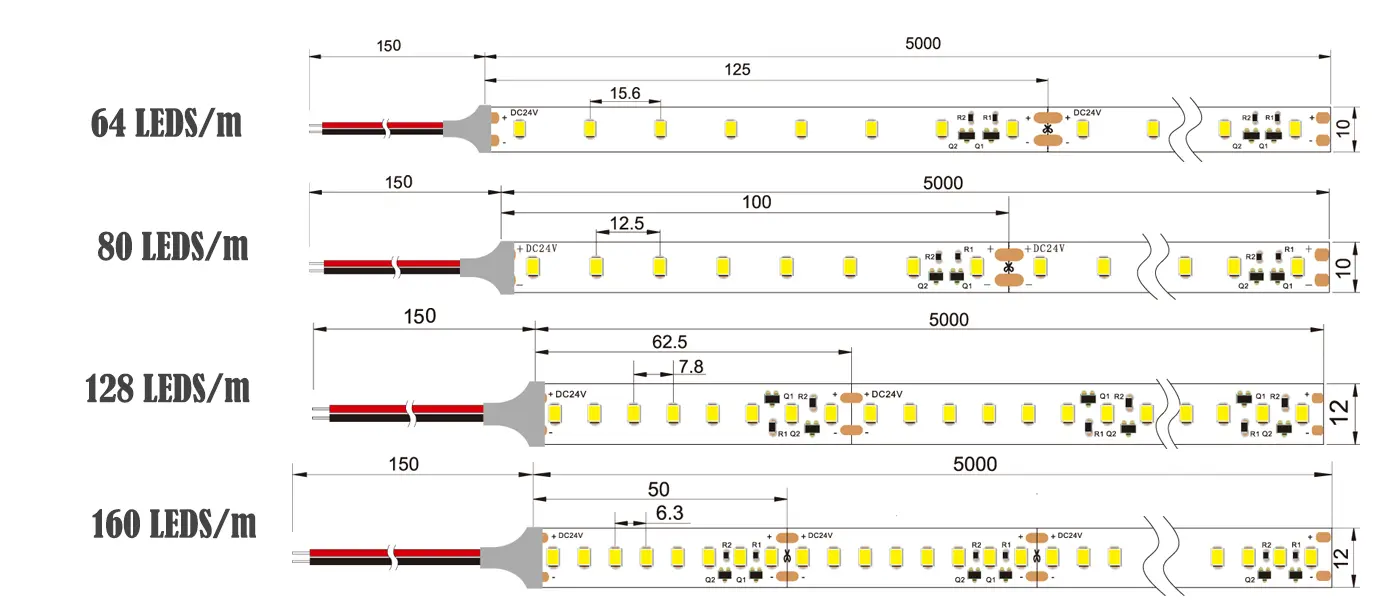

Dimension
