LED Linear Light

The Premium LED Linear Light is engineered for maximum brightness, uniform color consistency, and reliable performance. Perfect for a wide range of applications, it ensures long-lasting illumination in both commercial and residential spaces.

Crafted with high-quality LEDs, this light is designed with 6063 die-casting aluminum and an optical lens for anti-glare performance. It provides an excellent heat dissipation system, combined with PU waterproof glue, offering enhanced protection and durability.

Rated with waterproof and fireproof grade V-O, this LED linear light is resistant to harsh weather conditions and is ideal for both indoor and outdoor environments. Its oxidation-resistant build ensures it remains aesthetically pleasing while performing at peak efficiency for up to 50,000 hours.

Main Features

  • High-Quality LED: Provides exceptional brightness and consistent color consistency for clear and vibrant illumination.
  • Anti-Glare Design: Optical lens reduces glare, offering comfortable and uniform lighting with no harsh light spots.
  • Superior Heat Dissipation: 6063 die-casting aluminum housing ensures efficient heat management, extending the lifespan of the light.
  • Waterproof & Fireproof: Rated V-O for waterproof and fireproof protection, ensuring safety and reliability in all conditions.
  • Long Lifespan: Designed to last up to 50,000 hours, reducing the need for frequent replacements and maintenance.
  • Oxidation Resistance: Built with materials resistant to oxidation, ensuring long-lasting performance even in harsh environments.
  • Durable & Stylish: Features a sleek design that adds modern aesthetics while providing high functionality in various settings.

Technical Parameter

Part NO SR-LB-2325
LED Brand: Epistar / Cree
LED Qty/m: 48leds/m
Voltage: DC24V
CRI: >80 / 90
Power: 12W/ 15W
Colors: W/R/G/B/Y / RGB / RGBW/ DMX512 / SPI
Lumen: 1056-1356Lm/m
Cut Unit: 0.5m / 1 m
Working Temperature: -20° C –+60° C
IP Rated: IP67
Dimension: 23*25 mm (W*H)
Material: Die casting Aluminum Profiles + PC Cover + Optical Lens
Extra Accessories: Waterproof Male and female plug
Warranty: 3 years warranty

Dimension

size

Installation

sinstallation

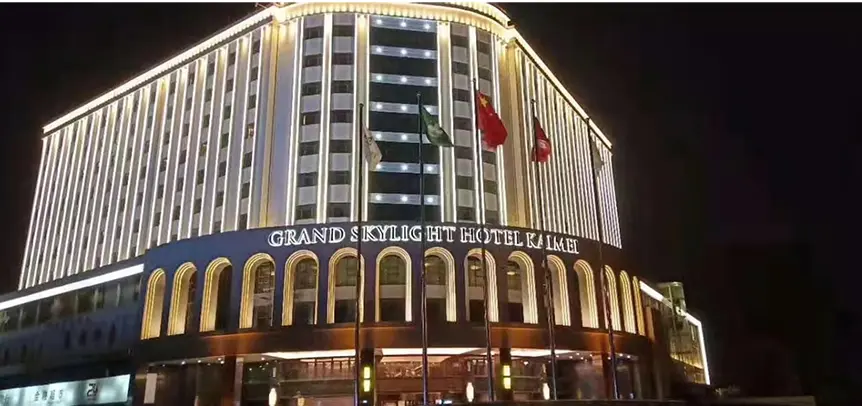

Application

case
