Aluminum LED Light Bar 2321

The Aluminum LED Light Bar is engineered for high-performance lighting with superior brightness and color consistency. This high-quality light bar is perfect for commercial, industrial, or residential applications, providing long-lasting illumination and easy installation.

Crafted from 6063 die-casting aluminum, it features a premium optical lens for anti-glare performance, ensuring visual comfort in all environments. The LED light bar is equipped with an advanced heat dissipation system using PU waterproof glue to protect the LEDs from damage while promoting longevity.

With waterproof (IP-grade) and fireproof (V-O) features, this light bar is suitable for all climates—whether exposed to rain, heat, or humidity. Its oxidation-resistant exterior maintains a sleek appearance even under harsh conditions, ensuring it looks great while providing efficient, high-quality light for up to 50,000 hours.

Main Features

  • High Brightness & Color Consistency: Powered by quality LEDs for uniform, bright light with exceptional color accuracy.
  • Anti-Glare Optical Lens: Designed with a high-performance optical lens that minimizes glare, ensuring comfortable and clear lighting.
  • 6063 Die-Casting Aluminum: Robust aluminum frame for superior heat dissipation and long-term durability in various environments.
  • Waterproof & Fireproof Protection: IP-rated waterproof and fireproof (V-O) grade for reliable performance, even in harsh outdoor conditions.
  • Oxidation Resistance: Engineered with oxidation-resistant materials to maintain an attractive appearance and high performance in all weather.
  • Long Lifespan: Designed for extended usage, this light bar lasts up to 50,000 hours, reducing the need for frequent replacements.
  • Versatile Use: Perfect for indoor or outdoor lighting needs, from signage, decoration lighting, to architectural accent lighting.

Technical Parameter

Part NO SR-LB-2321
LED Brand: Epistar / Cree
LED Qty/m: 48leds/m
Voltage: DC24V
CRI: >80 / 90
Power: 12W/ 15W
Colors: W/R/G/B/Y / RGB / RGBW/ DMX512 / SPI
Lumen: 1056-1356Lm/m
Cut Unit: 0.5m / 1 m
Working Temperature: -20° C –+60° C
IP Rated: IP67
Dimension: 23*21 mm (W*H)
Package: 500sets / ctn
Extra Accessories: Waterproof Male and female plug
Warranty: 3 years warranty

Dimension

size

Installation

installation

Application

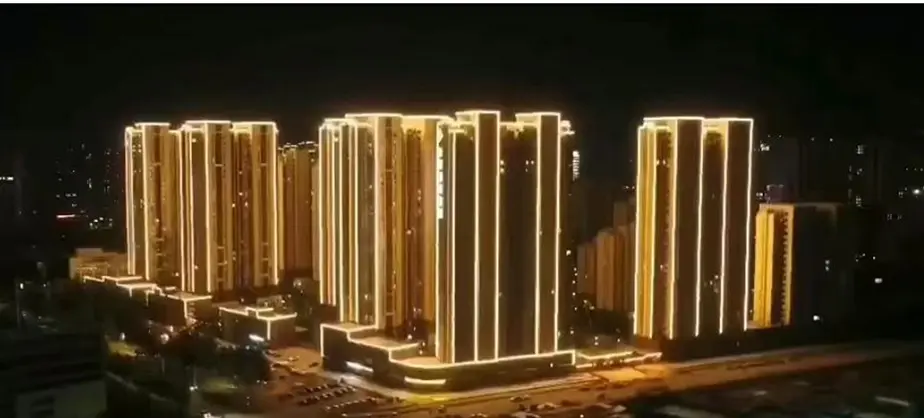

Project
