2835 LED Modul
The 2835 LED Module is designed to provide efficient, durable, and high-quality lighting for a wide range of applications. Powered by quality 2835 SMD LEDs, this module delivers excellent brightness and reliability. The DC12V low-voltage power supply ensures both security and energy efficiency, making it an ideal solution for commercial and residential projects alike.
With an IP65 rating, the LED Module is fully water-resistant, making it suitable for outdoor applications like signage, facades, and architectural lighting. It features a 180° viewing angle, ensuring even and uniform light distribution across a large area. Each series contains 20 pieces, allowing for easy customization of your lighting setup. Backed by a 3-year warranty, this module ensures long-lasting performance.
Main Features
- High Efficiency: Powered by 2835 SMD LEDs, providing bright, consistent illumination with low energy consumption.
- DC12V Low-Voltage Power Supply: Safe and energy-efficient, perfect for various lighting applications.
- 180° Viewing Angle: Provides wide-angle lighting, ensuring uniform light distribution.
- IP65 Rated: Water-resistant and dust-proof, ideal for both indoor and outdoor use.
- 20 Pieces per Series: Allows for flexibility and easy integration into various lighting designs.
- 3-Year Warranty: Enjoy reliability and peace of mind with the included 3-year warranty.
Technical Parameter
| Model NO | SR-6715-3X2835 |
|---|---|
| LED Qty | 3 LEDs 2835 |
| Voltage | DC12V |
| Power | 1.5W |
| Lumen | 100-150Lm |
| Viewing angle | 170° |
| IP Rated | IP65 |

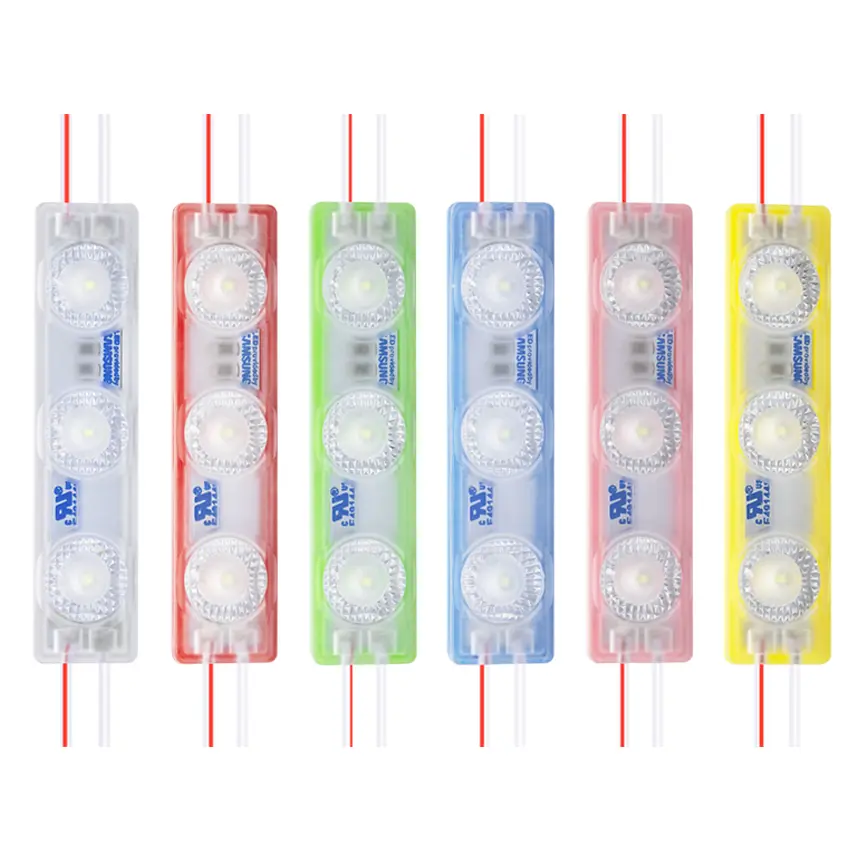

| Colors | W/WW/CW/R/B/Y/G |
| Material | Optical Lens +ABS |
| Module Pitch | 90mm |
| Max Connection | 20pcs/string, 100pcs/Box |
| Dimension | 67x15x8cm |
| Warranty | 3 years warranty |
| Cables | UL Cables, 20AWG |
Dimension
