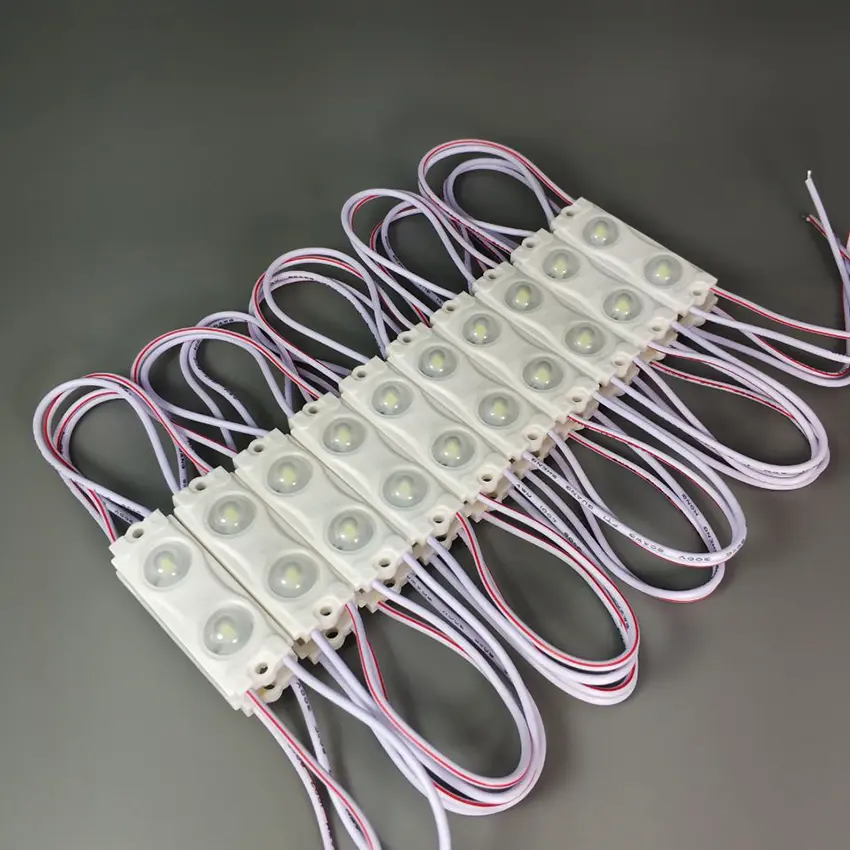

2835 LED Light Module Series
The 2835 LED Light Module for Signage is specifically designed to offer bright, efficient, and reliable lighting for signage applications. Powered by quality 2835 SMD LEDs, this module provides high brightness, excellent color consistency, and energy savings, making it perfect for illuminating both indoor and outdoor signs.
With a DC12V low-voltage power supply, it ensures safety and energy efficiency. The injection molding process enhances its durability, while the aluminum PCB ensures effective heat dissipation, prolonging the lifespan of the LEDs. This LED light module is designed to be scalable, with 20 pieces per series, allowing for easy integration into larger signage installations. It is backed by a 3-year warranty for peace of mind.

Main Features of LED Light Module 2835
- High-Quality 2835 SMD LED: Provides bright and consistent light ideal for signage applications.
- DC12V Low-Voltage Power Supply: Ensures safety and energy efficiency, perfect for long-term use.
- Injection Molding Process: Improves durability and impact resistance, making it suitable for outdoor and high-demand applications.
- Aluminium PCB: Enhances heat dissipation, maintaining optimal performance and extending the lifespan of the LEDs.
- 20 Pieces per Series: Allows for easy scalability in large signage projects.
- 3-Year Warranty: Ensures reliable performance and long-lasting durability.
Technical Parameter
| Model | SR-3516-1X2835 | SR-4616-2X2835 | SR-6716-3X2835 | SR-8686-4X2835 |
|---|---|---|---|---|
| LED Brand | Epsitar | Epistar | Epistar | Epistar |
| LED Qty | 1 LED | 2 LEDs | 3 LEDs | 4 LEDs |
| Voltage | DC12V | DC12V | DC12V | DC12V |
| Power | 0.36W | 0.72W | 1.08W | 1.44Watt |
| Lumen | 30-40Lm | 60-70Lm | 90-105Lm | 120-130Lm |
| CRI | >80 | >80 | >80 | >80 |
| Viewing angle | 160° | 160° | 160° | 160° |
| Module Pitch | 85mm | 85mm | 87mm | 87mm |
| Dimension | 35×15.8×4.13 | 46×15.8×4.13mm | 67×15.8×4.13mm | 86x86x4.13mm |
| Max connection in Series | 20pcs/string | 20pcs/string | 20pcs/string | 20pcs/string |
| Working Temperature | -20℃ – +60℃ | -20℃ – +60℃ | -20℃ – +60℃ | -20℃ – +60℃ |
| IP Rated | IP67 | IP67 | IP67 | IP67 |
| Cable | UL Cable, 20AWG | UL Cable, 20AWG | UL Cable, 20AWG | UL Cable, 20AWG |

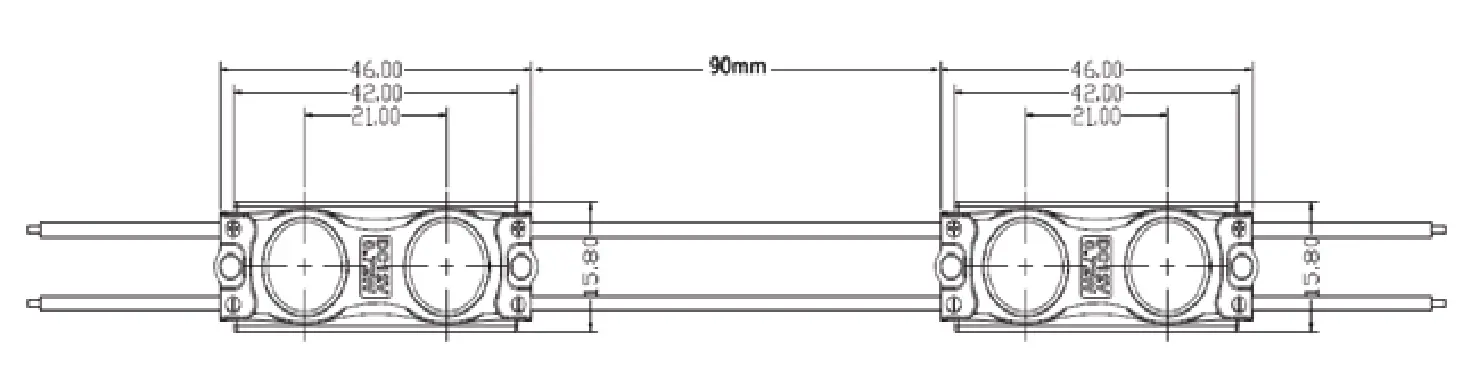

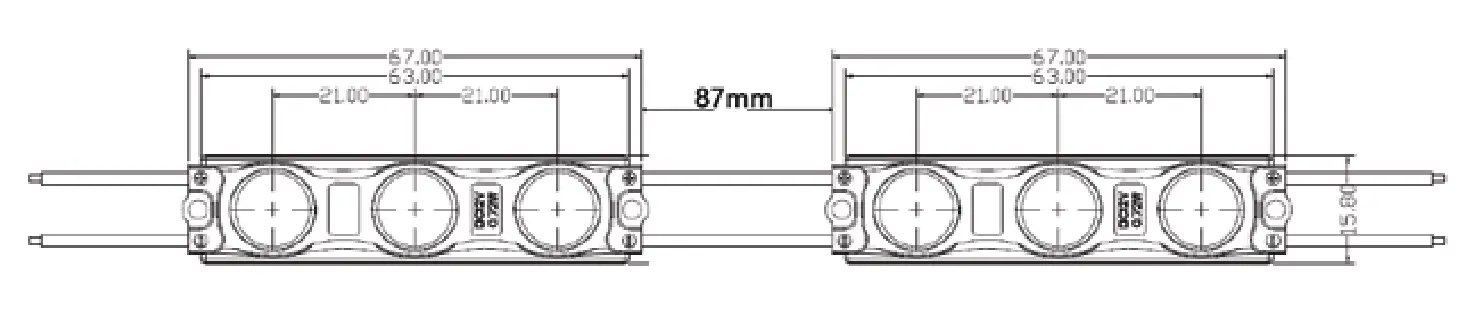

Dimension
