DMX LED Wall Washer Strip IP67
The DMX RGB LED Wall Washer Strip Light 1910 is a high-performance, flexible lighting solution perfect for architectural lighting and outdoor displays. Made with high-grade, eco-friendly silicone, it offers a vibrant 24V RGB color spectrum and a sleek optical design that delivers uniform, dynamic lighting effects.
Rated IP67 waterproof, this strip light is built to withstand harsh elements, making it ideal for both indoor and outdoor installations. Its unique side and top bending design allows for easy installation and adapts seamlessly to various surfaces and architectural features, providing a versatile solution for complex lighting projects. With UV resistance, fireproof properties, and a robust waterproof design, it ensures long-lasting durability even in challenging environments.

Main Features
- TPU Material Construction: Resistant to yellowing, heat, and corrosion, while remaining highly flexible—perfect for harsh environments.
- PU Resin Encapsulation: Offers strong adhesion, enhanced durability, and reliable performance in demanding applications.
- Flexible & Compact Design: Lightweight, bendable, and easy to install, making it a convenient alternative to traditional rigid fixtures.
- Multiple Beam Angles Available: Choose from various beam angles to meet different lighting needs, suitable for a wide range of applications.
- 24V Low Voltage: Ensures high safety with low voltage DC 24V, ideal for long-term, energy-efficient operation.
- IP67 Waterproof Rating: Guarantees reliable outdoor performance, resistant to rain, dust, and other challenging conditions.
Technical Parameter
| Part NO | SR-XQD-1910RGBD |
|---|---|
| LED Brand: | Epistar 3535 LED |
| LED Qty/m: | 36 LEDS/m |
| Voltage: | DC24V |
| Max Power: | 8.5W for RGB; 12W for RGBW |
| Colors: | DMX RGB /RGBW |
| Control Modes | DMX512 |
| Pixel Segment | 6 Pixel segments |
| Viewing angle: | 15°,30°,45°,15*60° |
| Cut Unit: | 166.6mm |
| Working Temperature: | -25° C –+45° C |
| IP Rated: | IP67 |
| Dimension: | 18.5*9.5mm (W*H) |
| Materials: | TPU |
| Max Length: | 5 meters |
| Warranty: | 5 years warranty |
Dimension

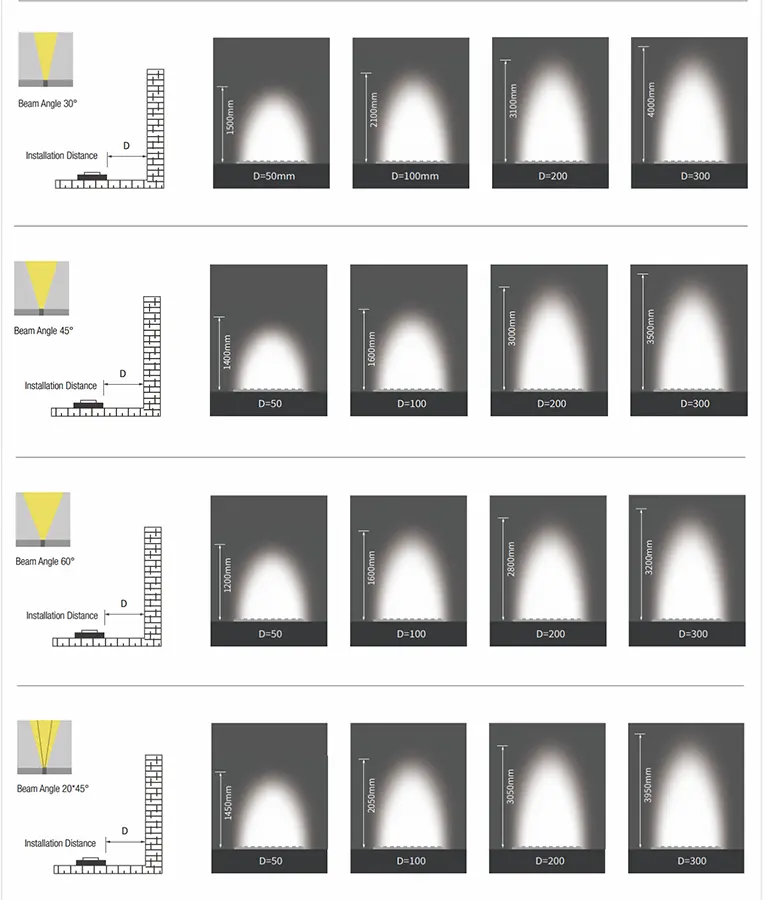

Installation
