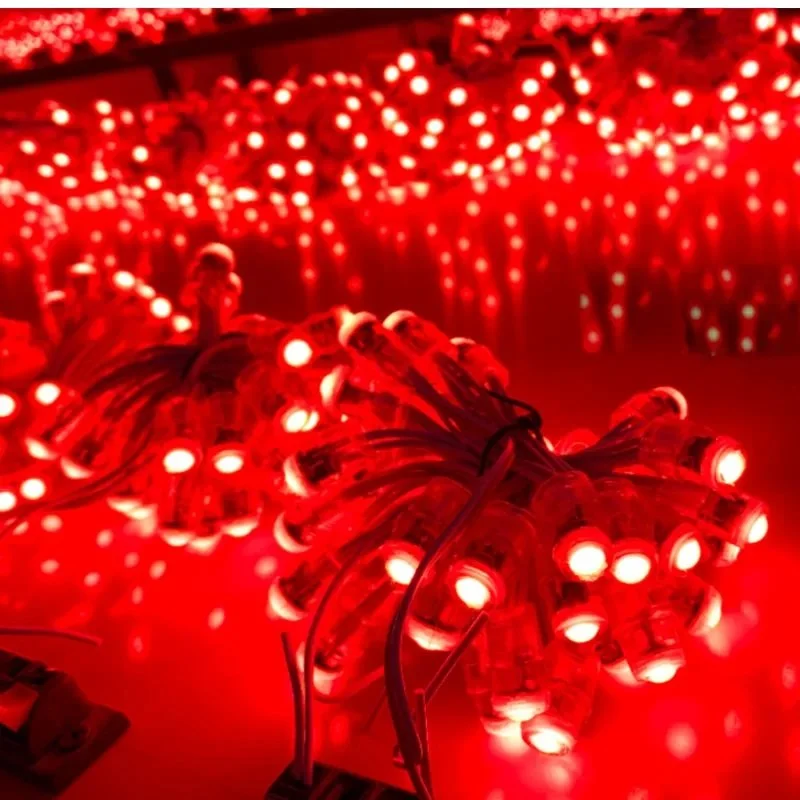

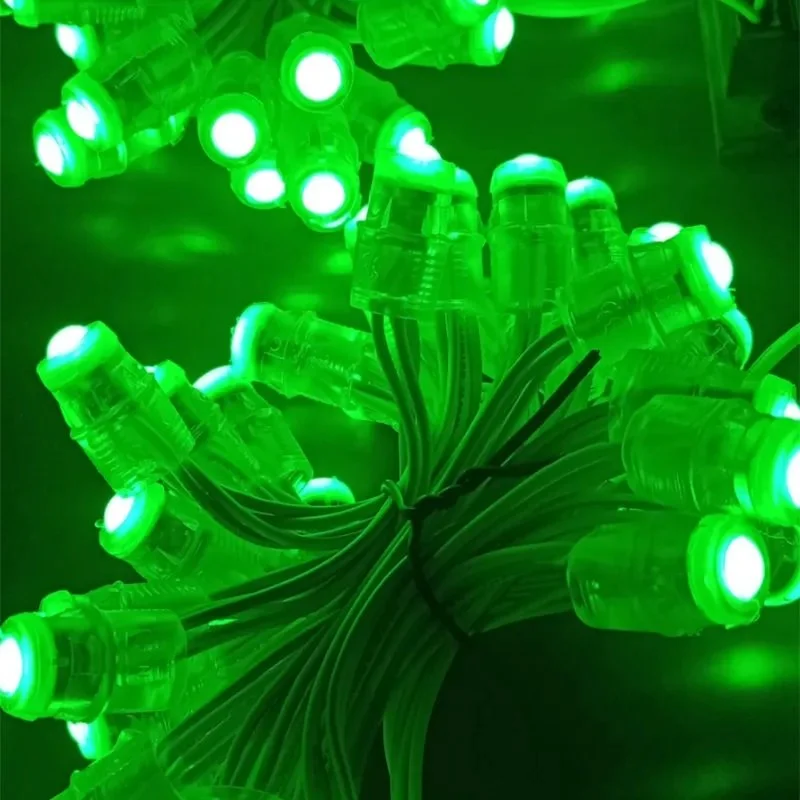

12mm LED Dot Lights
The 12mm LED Dot Lights combine advanced T-shape design, high-brightness 5050 SMD LEDs, and reliable waterproofing to create a versatile lighting solution. Ideal for both indoor and outdoor signage applications, these lights are energy-efficient, durable, and simple to install.
Main Features
- T-Shape Design: Innovative design prevents soldering issues, ensuring a reliable and secure connection.
- High-Quality 5050 SMD LED: Delivers superior brightness with low light decay for consistent and vibrant illumination.
- Durable & Long-Lasting: UV resistance, anti-corrosion, and waterproof design for robust performance in various environments.
- Energy-saving: Provides high-efficiency lighting while minimizing energy consumption.
- Private Mold Design: Unique structure ensures a distinct and high-performance solution.
- Quick Installation: Designed for easy and fast setup, perfect for Indoor & outdoor signages
Technical Parameter
| Part NO | SR-F12-1X |
|---|---|
| LED Type: | 5050 SMD LED |
| LED Qty/m: | 1 LED |
| Voltage: | DC12V |
| CRI: | >80 |
| Power: | 0.2W |
| Dimension: | 12mm |
| Colors: | W/R/G/B/Y |
| Current: | 15mAh |
| Beam angle: | 160° |
| Lumen: | 20-22Lm |
| Max in series: | 40pcs |
| Material: | PVC |
| Working Temperature: | -25° C –+50° C |
| IP Rated: | IP67 |
| Warranty: | 3 years warranty |
Dimension

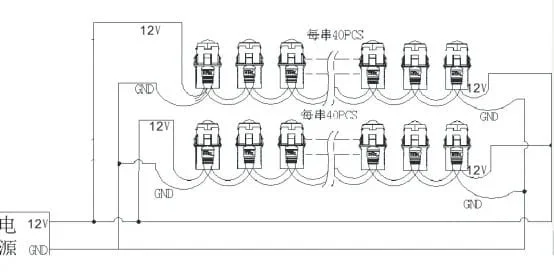

Installation Guide
