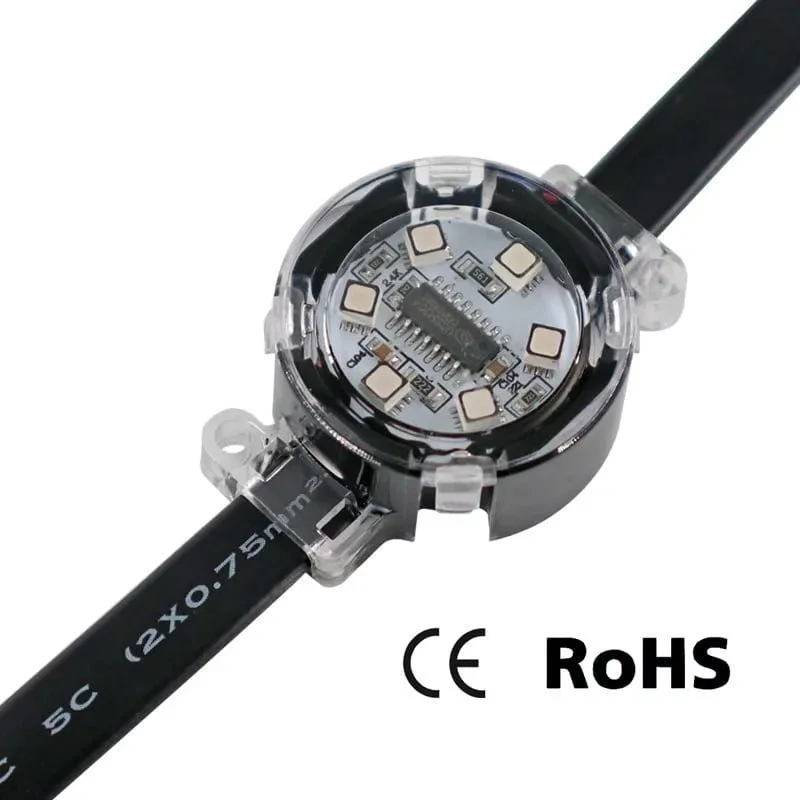

Pixel LED Dot Matrix Light
The Pixel LED dot matrx used 6pcs 3535 RGB LED and integrated with DMX512 protocal, It can be individually addressed and controlled,widely used in creating vibrant and engaging digital displays, offering high customization and the ability to render text, images, and animations with clarity and impact.
Technical Paramter
| Part NO | SR-F35-6RGBD |
|---|---|
| LED Type: | 3535 RGB LED |
| LED Brand: | Epistar / Cree / Osram |
| LED Qty/m: | 6 LEDs |
| Voltage: | DC24V |
| Controlling Modes | Single Color / TTL / DMX512 |
| IC Type: | 1903IC / 16703 / DMX512 |
| Power: | 1.5W |
| Dimension: | φ35mm |
| Colors: | W/R/G/B/Y/Full Color |
| Grey-Scale: | 8 bit |
| Beam angle: | 120° |
| Lumen: | 78-90Lm |
| Max in series: | 40pcs |
| Material: | UV Resistance, Fireproof PC Material |
| Installation Modes: | Clip-on installation/Steel cable installation/ Hole-punch installation |
| Working Temperature: | -20° C –+60° C |
| IP Rated: | IP67 |
| Working Life: | >50000 hours |

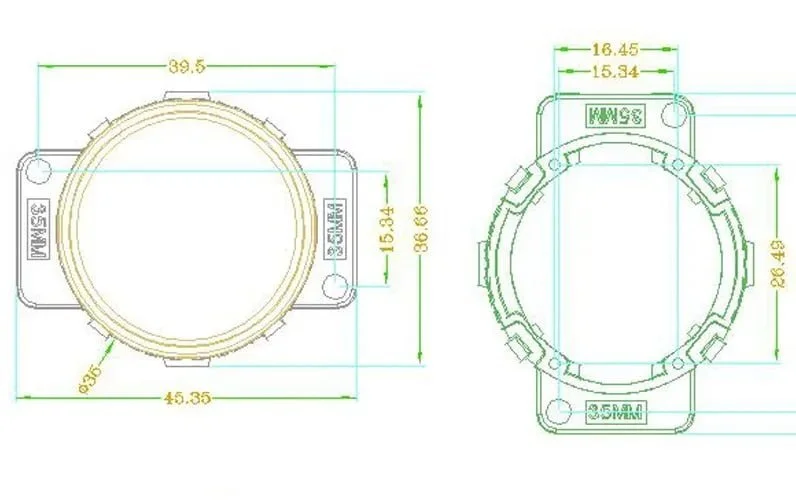

Dimension
Connection Guide
