Dim to Warm LED Strip Light
The Dim to Warm LED Strip Light offers dynamic lighting control, allowing a seamless transition from warm to cooler tones as you adjust the brightness. Perfect for creating ambient lighting in living rooms, kitchens, or commercial spaces, this LED strip provides flexible lighting options to suit the mood and functionality of any room.
With a standard IP20 protection rating, this strip can be upgraded to IP54, IP65, IP67, or IP68 for applications requiring enhanced environmental protection. Whether used in dry indoor spaces or damp and wet locations, this LED strip meets the demands of various settings.
Ideal for dimmable functions, it delivers a smooth transition between warm white and cool white, helping you easily create the perfect atmosphere.

Main Features
- Dim to Warm Technology: Dynamic dimming function that adjusts the color temperature from warm white to cool white.
- Dimmable Function: Provides customizable lighting control to create the desired mood in any space.
- High CRI (RA90): Superior color accuracy for vibrant, true-to-life colors in any setting.
- IP Protection Options: Starts with IP20 and can be upgraded to IP54, IP65, IP67, or IP68 depending on your needs.
- Versatile Installation: Easy to install in dry or damp locations; upgradeable for wet or highly exposed environments.
- Long Lifespan: Over 50,000 working hours, ensuring long-term reliability and value.
- Flexible Lighting Solutions: Ideal for living spaces, offices, kitchens, and commercial areas requiring adjustable ambiance.
Technical Parameter
| Part NO | SR-CCT-120W2835 |
|---|---|
| LED Type: | 2835 LED |
| LED Qty/m: | 120leds/m |
| Voltage: | DC12V/24V |
| Driver Method | Constant Voltage |
| CRI: | >90 |
| Power: | 24W |
| PCB Width: | 10mm |
| Colors: | White + Warm White |
| Color Temperature: | 3000K+6000K |
| Lumen: | 2240-2300Lm/m |
| Cut Unit: | 12V:50mm/ 24V: 100mm |
| Connection Wire: | 20AWG |
| Working Temperature: | -10° C –+45° C |
| IP Rated: | IP20/IP65/IP67/IP68 |
| Warranty: | 5 years warranty |
Dimension

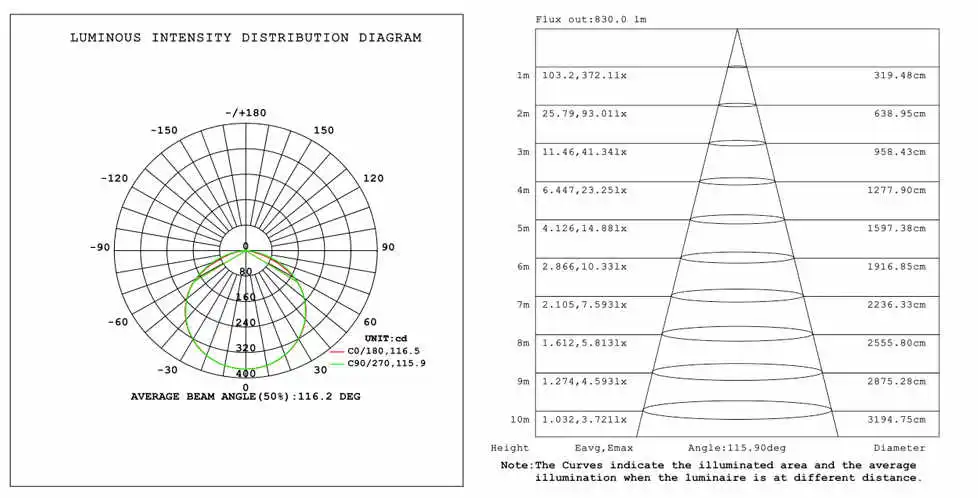

Light Distribution Curve and Effective Average Illuminance
