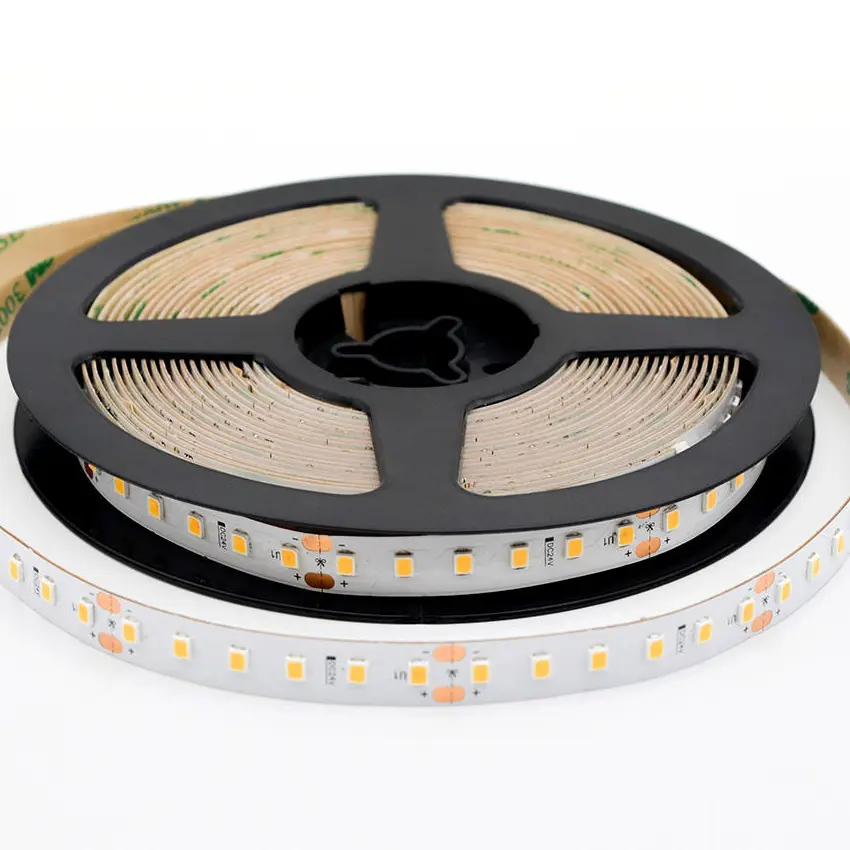

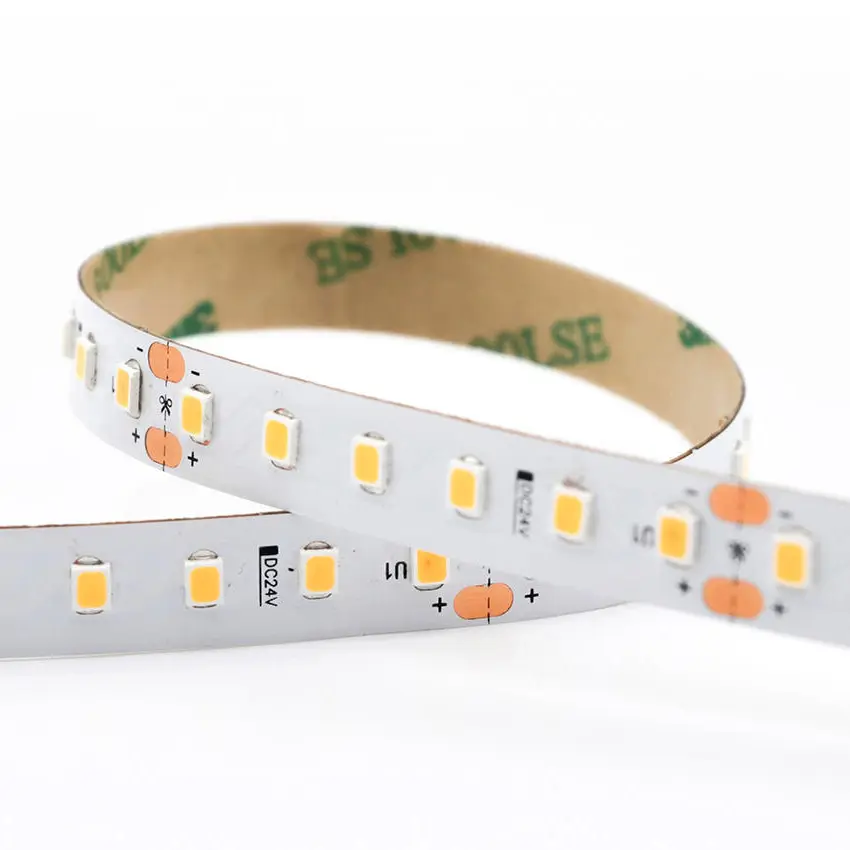

Super Long LED Tape Strip Light

The 2835 LED Tape Strip is designed for long-distance, high-efficiency lighting, making it an ideal solution for architectural, commercial, and decorative applications. Featuring built-in constant current IC technology, it ensures stable brightness and color uniformity even over extended runs of 10m, 15m, 20m, or 30m.

With high CRI (>90), this LED strip enhances color accuracy and visual appeal, making it perfect for retail displays, office lighting, cove lighting, and signage. Constructed with double-sided 2oz FPC for superior heat dissipation and durability, and 3M adhesive backing for easy installation, this LED strip delivers exceptional performance with flexibility.

certification

Main Features of Super long LED Tape Strip

  • Long Continuous Runs: Supports up to 10m, 15m, 20m, or even 30m powered from a single end—ideal for large-scale, uninterrupted lighting applications.
  • High CRI (>90): Delivers exceptional color accuracy, ensuring spaces appear more vibrant, natural, and true to life.
  • Constant Current IC: Ensures consistent brightness and uniform color output across the entire strip, even in extended lengths.
  • Double-Sided 2oz FPC: Built with premium 2-ounce copper foil for superior heat dissipation and enhanced durability.
  • Flexible & Cuttable: Easily bent, twisted, or trimmed to accommodate custom layouts and intricate designs.
  • Strong 3M Adhesive: Features reliable peel-and-stick backing for secure, tool-free installation on various surfaces.
  • Versatile Applications: Perfect for architectural accents, commercial interiors, office spaces, signage, and cove lighting.

Technical Parameter

Part NO SR-CC-60W2835B SR-CC-120W2835B SR-CC-240W2835B
LED Type: 2835 SMD LED 2835 SMD LED 2835 SMD LED
LED Qty/m: 60leds/m 120leds/m 240leds/m
CRI: >90 >90 >90
SDCM: <3 <3 <3
Voltage: DC24V DC24V DC24V
Power: 4.8W/7.2W 9.6W/14.4W 19.2W
PCB Width: 10mm 10mm 10mm
Lumen@3000K: 480-700Lm/m 960-1400Lm/m 1920Lm/m
Colors: WW/NW/CW WW/NW/CW WW/NW/CW
White Color Tempearture: 2700-6500K 2700-6500K 2700-6500K
View angle: 120° 120° 120°
Cut Unit: 100mm 50mm 100mm
Max running Length: 20/25m 13/17m 9m
Connection Wire: 20AWG 20AWG 20AWG
Working Temperature: -10° C –+45° C -10° C — +45° C -10° C – +45° C
IP Rated: IP20/IP65/IP67/IP68 IP20/IP65/IP67/IP68 IP20/IP65/IP67/IP68
Warranty: 5 years warranty 5 years warranty 5 years warranty

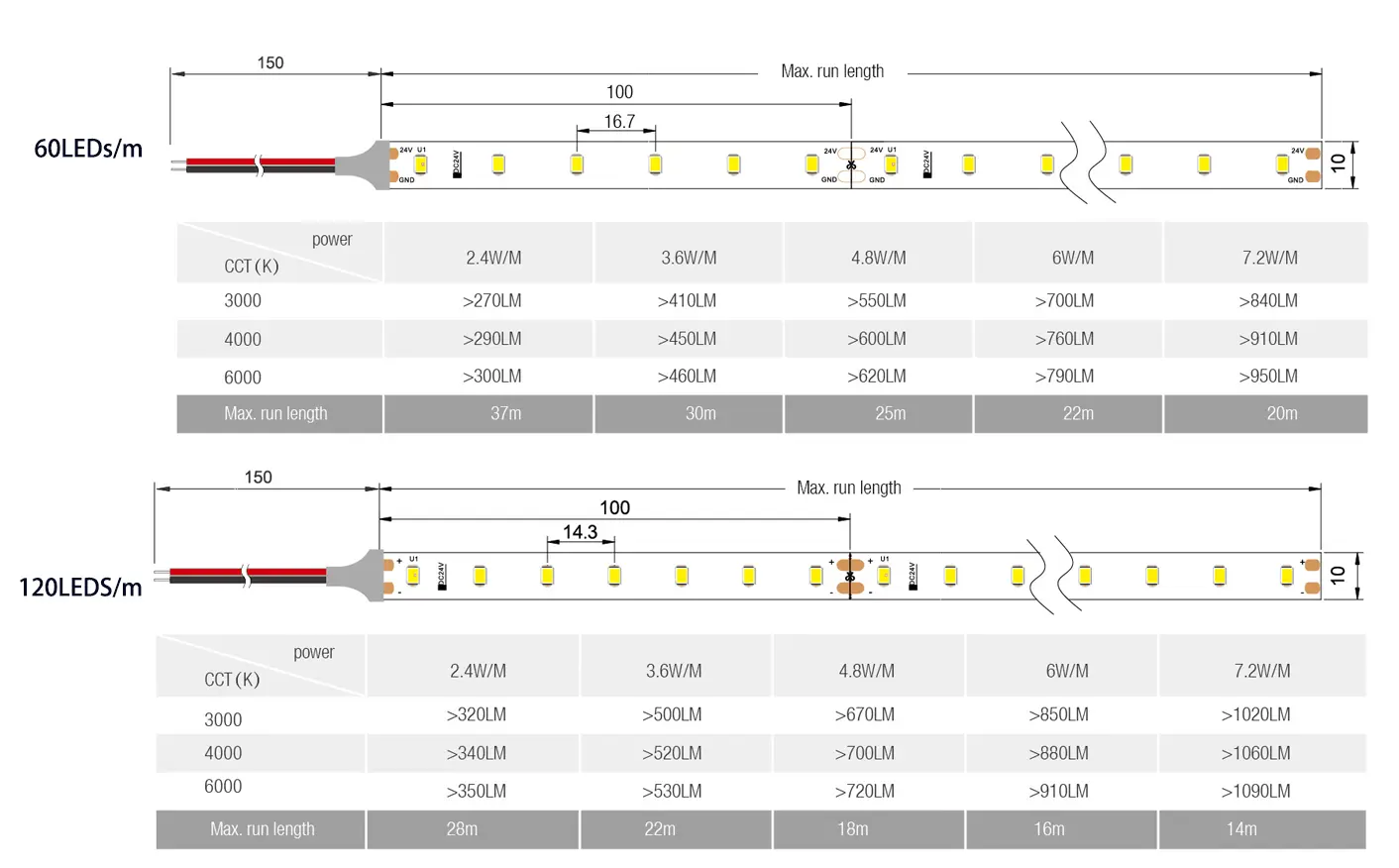

Dimension

size
